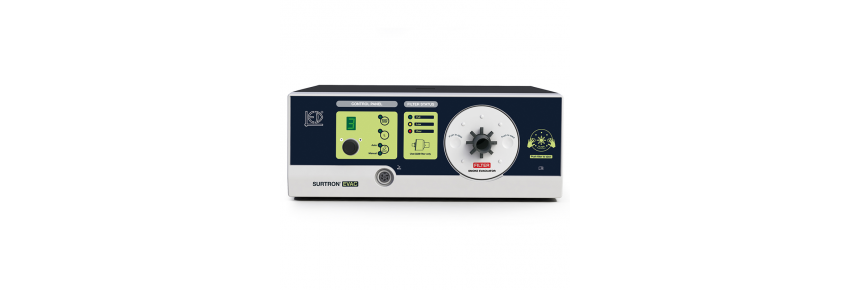

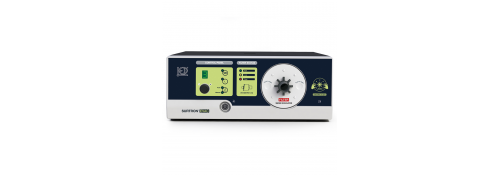

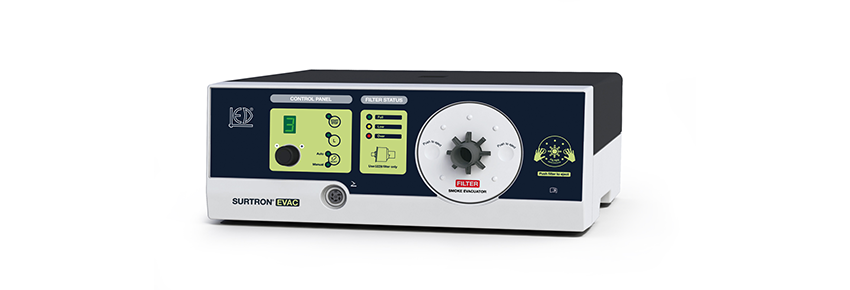

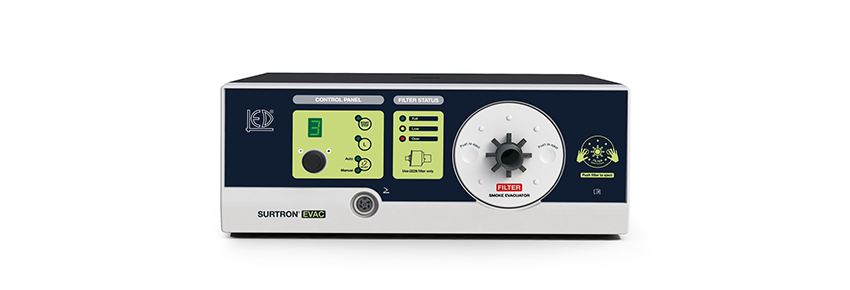

Surtron EVAC Smoke Evacuator

SURTRON EVAC - Smoke Evacuation and Filtration System for Electrosurgical Fumes

The SURTRON EVAC is a device designed to address one of the most common issues in electrosurgical procedures: surgical fumes. During the use of the electrosurgical knife, fumes are generated that are not only unpleasant and persistent but can also be potentially hazardous to the health of medical staff and patients. The SURTRON EVAC provides an effective solution through an advanced evacuation and filtration system, reducing bacteriological and viral risks and improving visibility during procedures.

Main Features:

• Automatic Evacuation: The device is equipped with a remote electronic system that automatically activates the evacuation as soon as the activation of a high-frequency electrosurgical unit is detected. Alternatively, evacuation can be activated manually or via an optional foot pedal control.
• Laparoscopic Function: A specific function for laparoscopic surgery is available, allowing for quick selection of the optimal evacuation mode for this type of procedure.
• Advanced Filtration: The system uses ULPA (Ultra-Low Penetration Air) filters with an activated carbon layer to remove not only visible and invisible smoke particles but also the unpleasant odors generated during procedures.
• Electronic Filter Monitoring: An electronic system monitors the usage status of the filters, indicating when they need to be replaced. This ensures that the device always operates at peak performance.

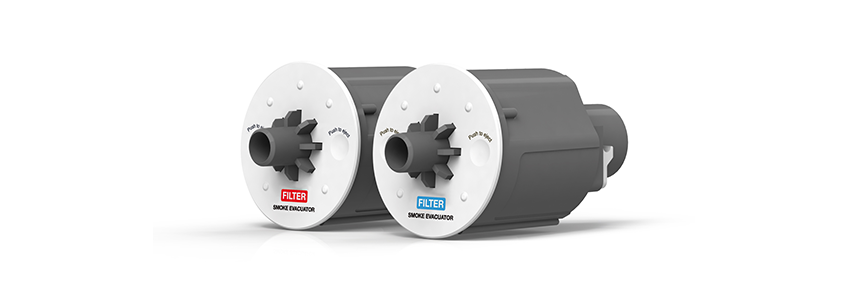

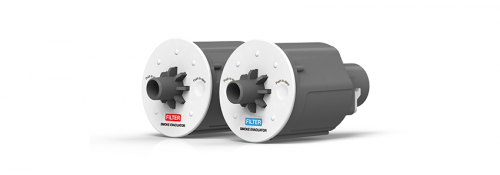

Available Filters:

• BLUE Filter: Standard filter included with the unit.
• RED Filter: Optional replacement filter, providing a longer lifespan compared to the blue filter.

Benefits of the SURTRON EVAC:

• Effective Smoke Removal: Thanks to ULPA filtration, the SURTRON EVAC can remove 99.999% of smoke particles, significantly improving safety and visibility during operations.
• Odor Reduction: The activated carbon layer in the filters eliminates unpleasant odors from surgical fumes, creating a more comfortable working environment for staff and patients.
• Automatic and Manual Control: Evacuation can be managed in automatic, manual or foot pedal control modes, offering great flexibility to the operator.
• Filter Durability: The electronic system for monitoring filter status ensures optimal use, preventing malfunctions and optimizing the lifespan of the filters.
• Convenience and Portability: The compact size and weight of 4 kg make it easy to move and use in different operating rooms without compromising performance.

Technical Data:

• Power Supply Voltage: 230 Vac
• Network Frequency: 50 Hz
• Maximum Power Consumption: 800 VA
• Maximum Suction (vacuum): 2700 LPM (95 CFM)
• Maximum Static Suction: 250 mbar (83 in H2O)
• Filter Type: ULPA with activated carbon
• Filter Efficiency: 99.999%
• Particle Diameter: 0.3 microns
• Dimensions (LxHxP): 370 x 144 x 319 mm.
• Weight: 4 kg
