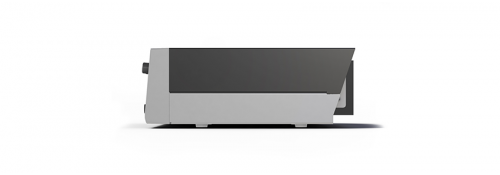

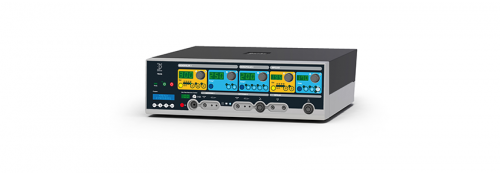

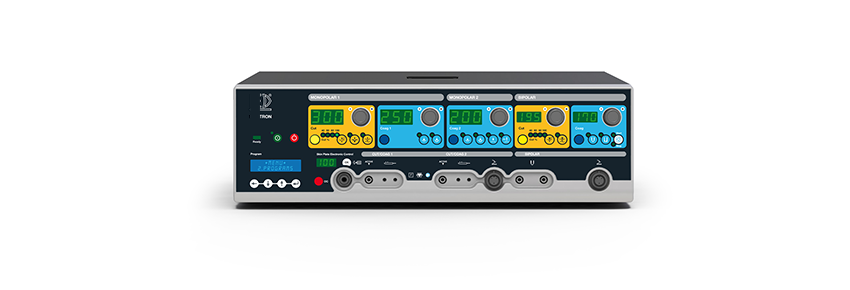

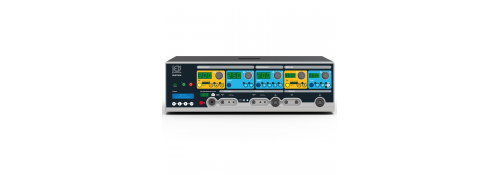

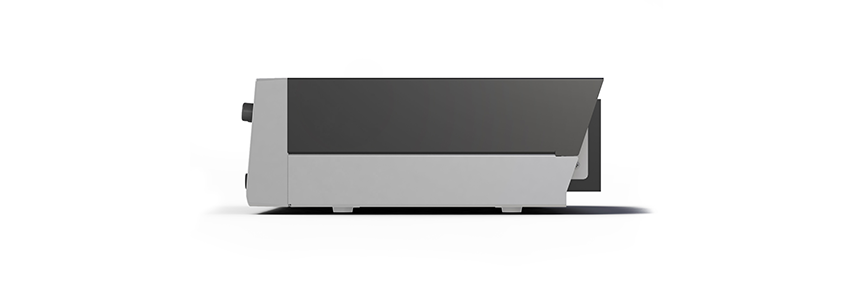

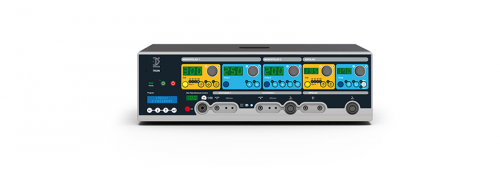

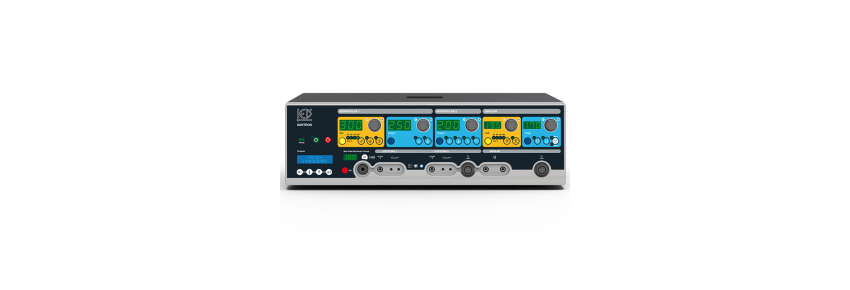

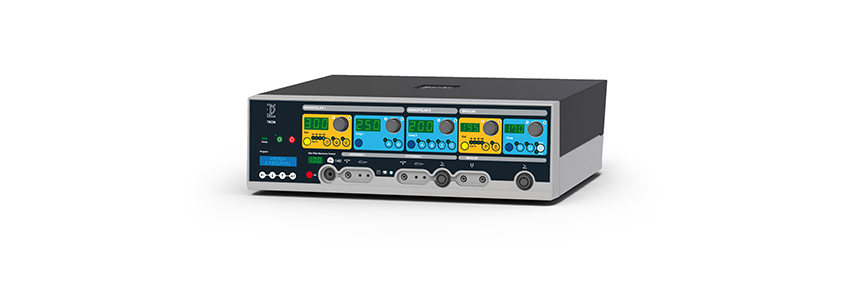

Surtron 300 HP Electrosurgical Unit

Surtron 300 HP Electrosurgical Unit: Power, Precision, and Surgical Reliability

The Surtron 300 HP is an advanced electrosurgical unit designed to ensure maximum precision and power during complex surgical procedures. With a maximum power of 300 W, it is ideal for many medical specialties, including general surgery, dermatology, gynecology, ENT, urology, and outpatient surgery. The device allows operation in monopolar and bipolar modes, offering complete versatility that meets all surgical needs, from the most delicate to the most invasive.

Operating Modes and Performance

The Surtron 300 HP features six operating modes to fully customize treatment based on the type of procedure. The CUT mode offers pure cuts with power up to 300 W, ensuring precision and speed, while the BLEND mode combines cutting and coagulation for more controlled procedures. The FORCED COAG allows for rapid superficial coagulations, while the SOFT COAG enables deep coagulations without necrosis, protecting surrounding tissues. Bipolar modes include BIPOLAR CUT and BIPOLAR COAG, both up to 120 W, ideal for precise and localized cuts and coagulations.

Recommended Surgical Applications

The Surtron 300 HP is suitable for numerous surgical applications, ensuring safety and precision in every context. In general surgery, it is perfect for complex procedures requiring maximum accuracy. In dermatology, it allows for gentle skin treatments and lesion removal. In gynecology, ENT, and urology, it ensures reliable results even in delicate procedures, while in outpatient surgery, it is ideal for less extensive but equally precise interventions.

Features:

• Max power pure cut mono CUT: 300 W – 300 Ω
• Max power cut-coag mono CUT80%: 250 W – 300 Ω
• Max power cut-coag mono CUT60%: 200 W – 300 Ω
• Max power cut-coag mono CUT40%: 150 W – 300 Ω
• Max power cut mono ENHANCED: 200 W – 500 Ω
• Max power cut-coag mono BLEND: 200 W – 300 Ω
• Max power coag mono SPEEDY: 100 W – 500 Ω
• Max power coag mono DEEP: 100 W – 200 Ω
• Max power coag mono SPRAY: 70 W – 2000 Ω
• Max power coag mono SPRAY ARGON: 70W-2000Ω
• Max power cut bipo CUT: 120 W – 50 Ω
• Max power cut-coag bipo CUT80%: 120 W – 50 Ω
• Max power cut-coag bipo CUT60%: 120 W – 50 Ω
• Max power cut-coag bipo CUT40%: 100 W – 50 Ω
• Max power cut-coag bipo BLEND: 120 W – 150 Ω
• Max power coag bipo COAG: 120 W – 50 Ω
• Vessel sealing: 200 W – 50 Ω
• Working frequency Mono / Bipo: 425 kHz / 525 kHz
• Neutral electrode: F
• Selectably power supply: 115 – 230 Vac
• Network frequency: 50 – 60 Hz
• Maximum absorbed power: 1000 VA
• Dimensions LxHxD: 470x150x400 mm
• Weight: 17.5 Kg

Accessories provided with the device:

• Sterilizable handpiece with buttons
• Disposable handpiece with buttons (5 pcs.)
• Short blade electrode (3 pcs.)
• Long blade electrode (3 pcs.)
• Short ball electrode (3 pcs.)
• Disposable split neutral electrode (5 pcs.)
• Connection cable for neutral electrode
• Electrode cleaning sponge

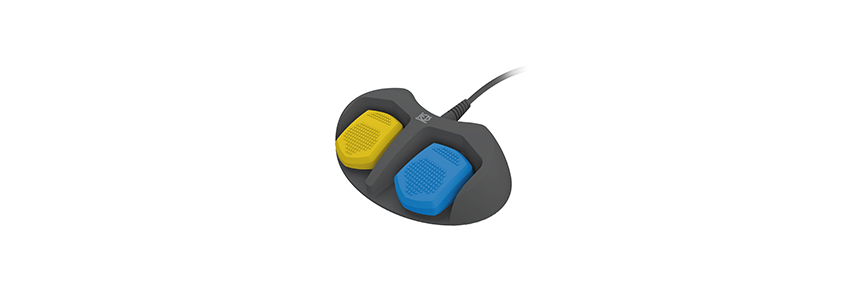

• Set of waterproof double pedals HP400 (2 pcs.)
• 5-meter power cable
