Surtron Flash 120 Radio Scalpel

Surtron Flash 120 HP Electrosurgical Unit: Power and Precision for Advanced Surgeries

The Surtron Flash 120 HP electrosurgical unit is the ideal choice for those seeking a highly precise surgical device, with programmable operational times down to milliseconds, while also capable of operating in traditional modes. This electrosurgical unit is designed to support surgical procedures that require millimeter-level power control, making it ideal for professionals and healthcare facilities performing advanced and delicate treatments. Its versatility in emission modes makes it particularly suitable for a wide range of surgical specialties.

Programmable Emission Times and Advanced Modes

One of the distinctive features of the Surtron Flash 120 HP is the ability to program the duration of power emission with intervals ranging from 10 milliseconds to 30 seconds. This allows the surgeon to adapt the energy emission to the specific needs of the procedure, minimizing risks and optimizing treatment effectiveness.

Additionally, the interval time between power pulses is adjustable, with values from 1 to 9 pulses, ensuring precise modulation of power for each phase of the procedure. These advanced adjustment options are particularly useful for interventions that require high control of heat applied to tissues, such as in plastic surgery or minimally invasive treatments.

Operating Modes

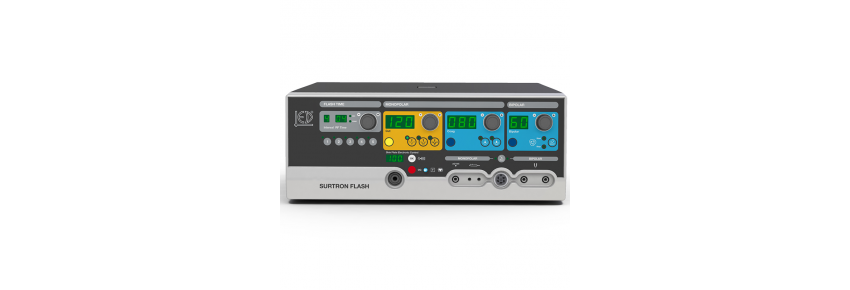

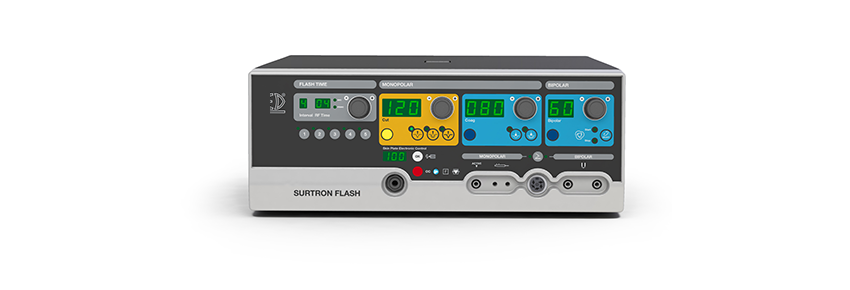

The Surtron Flash 120 HP offers numerous operating modes, all manageable via the digital control panel:

• CUT (Pure Cut): Maximum power of 120 W, ideal for quick and precise incisions in tissues.
• BLEND (Cut-Coagulated): Maximum power of 90 W, a mix between cutting and coagulation that reduces bleeding during the procedure.
• ENHANCED (Enhanced Cut): Maximum power of 90 W, for a more efficient and deeper cutting mode.
• FORCED COAG (Forced Coagulation): Maximum power of 80 W, used to quickly stop bleeding.
• SOFT COAG (Soft Coagulation): Maximum power of 60 W, for more delicate and deeper coagulations, without carbonization.
• BIPOLAR COAG (Bipolar Coagulation): Maximum power of 60 W, with bipolar adapters for extremely precise and safe procedures.

FEATURES:

• Max CUT power: 120 W – 250 Ω
• Max BLEND power: 90 W – 200 Ω
• Max ENHANCED power: 90 W – 250 Ω
• Max FORCED COAG power: 80 W – 150 Ω
• Max SOFT COAG power: 60 W – 100 Ω
• Max BIPOLAR COAG power: 60 W – 50 Ω
• Operating frequency: 600 kHz
• Power emission time: RF 10 ms – 30 sec
• Power pulse interval: RF 1 – 9
• Neutral electrode. F
• Selectable power supply: 115-230 Vac
• Network frequency: 50-60 Hz
• Max absorbed power: 300 VA
• Dimensions LxHxD: 370x144x319 mm
• Weight: 6 Kg
