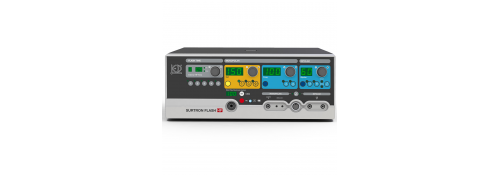

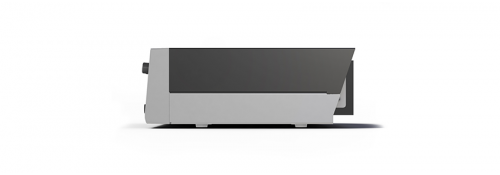

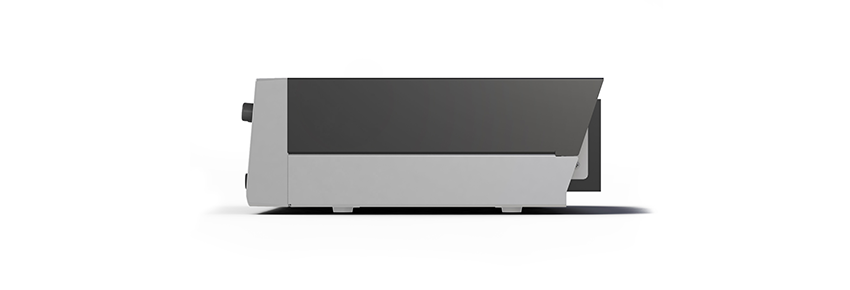

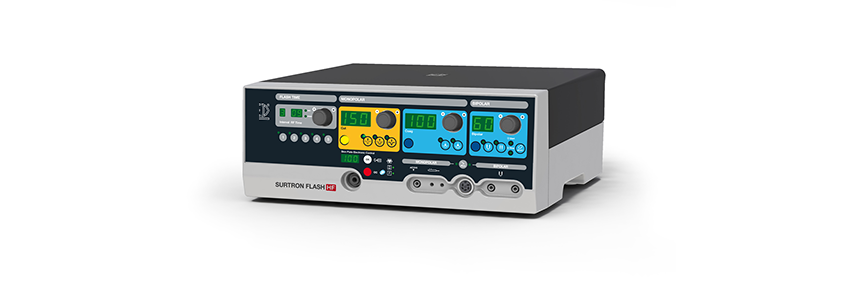

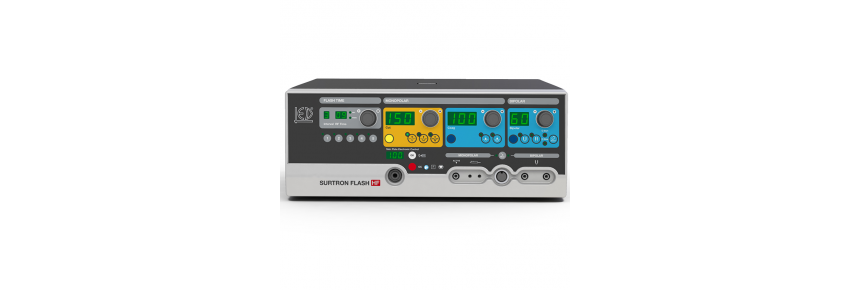

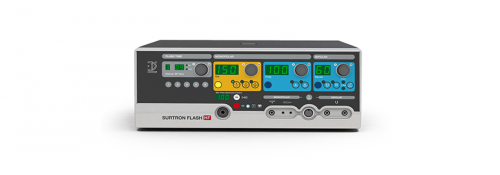

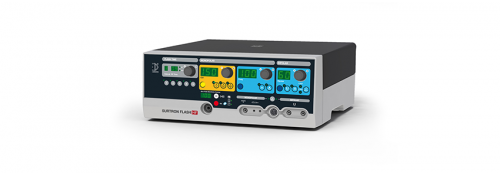

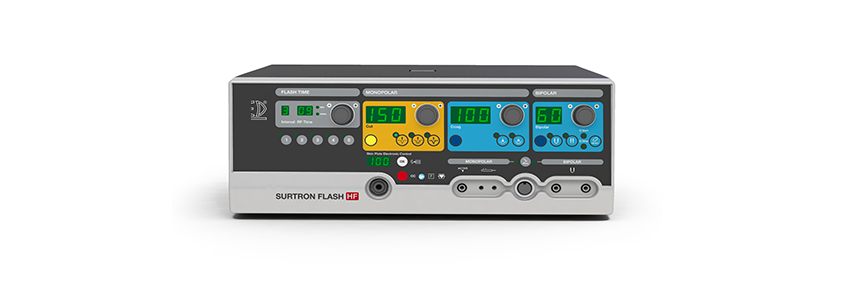

Surtron Flash 160HF Radio Scalpel

Surtron Flash 160HF Electrosurgical Unit: High Frequency and Surgical Precision

The SURTRON FLASH 160HF is a high frequency electrosurgical unit designed to ensure the highest level of precision, safety, and effectiveness in surgical procedures. Its advanced technology makes it suitable for a wide range of applications, including microsurgery, plastic surgery, dermatology, ENT (otorhinolaryngology), and many other specialties that require millimeter control of the delivered energy.

Advanced Features and Operating Modes

The Surtron Flash 160HF allows operation in monopolar and bipolar modes, with the ability to select the most suitable operating mode for the procedure thanks to programmable emission times ranging from 10 milliseconds to 30 seconds, for precise power control. Selectable modes include:

• CUT (Pure High Precision Cutting): Ideal for quick and safe incisions in tissues, maintaining minimal thermal damage.
• BLEND (Coagulated Cutting): Allows a combination of cutting and coagulation, useful for reducing bleeding during incision.
• ENHANCED (Incisions with Minimal Eschar): Minimizes eschar production and thermal damage, excellent for delicate tissues and procedures requiring precision.
• FORCED COAG (Superficial Coagulation): Effective for quickly stopping superficial bleeding, ideal for routine procedures or emergency situations.
• SOFT COAG (Deep Coagulation Without Carbonization): Used for deep coagulation without damaging surrounding tissues, maintaining optimal healing.
• BIPOLAR COAG (Controlled Bipolar Coagulation): Ideal for delicate procedures requiring precise control and no energy dispersion.
• BIPOLAR ABLATION (High Frequency Ablation): Used to destroy or remove unwanted tissues through high frequency, often in specialized treatments.

Guaranteed Precision and Safety

The unit is equipped with a digital microcontroller that continuously monitors the delivered power, ensuring stable and safe delivery. Additionally, it is possible to switch functions directly from the handpiece, improving the ergonomics of the procedure and allowing the surgeon to maintain control without having to take their eyes off the surgical field.

The Surtron Flash 160HF is optimized for underwater cutting and coagulation, further expanding its applications in complex surgical environments, such as those with a humid atmosphere.

Recommended Surgical Applications

Thanks to its versatility, the Surtron Flash 160HF is particularly suitable for a wide variety of surgical procedures, including:

• Microsurgery: For treatments on extremely delicate tissues, such as in cases of eye or nerve surgeries.
• Dermatological Surgery: Excellent for the removal of skin lesions or for minimally invasive aesthetic procedures.
• Aesthetic and Plastic Surgery: Used for treatments requiring high precision and minimal collateral damage.
• ENT (Otorhinolaryngology): For delicate procedures on the ears, nose, and throat.
• Gynecology and Urology: Suitable for delicate operations requiring precision in coagulation and incision.
• General Surgery: For routine surgical procedures such as resections or tumor treatments.

Safety and Monitoring

To ensure maximum safety, the Surtron Flash 160HF is equipped with advanced self-diagnosis functions, continuous monitoring of the neutral electrode connection, and an automatic power control system. Additionally, the unit is designed to provide precise and stable delivery control, minimizing risks during surgical procedures.

Features:

• Max CUT Power: 150 W – 500 Ω
• Max BLEND Power: 100 W – 500 Ω
• Max ENHANCED Power: 100 W – 500 Ω
• Max FORCED COAG Power: 100 W – 150 Ω
• Max SOFT COAG Power: 80 W – 100 Ω
• Max BIPOLAR COAG Power: 60 W – 50 Ω
• Max BIPOLAR ABLATION Power: 60 W – 100 Ω
• Operating Frequency: 600 kHz – 4.0 MHz
• RF Power Emission Time: 10 ms – 30 sec
• Power Pulse Range: RF 1 – 9
• Neutral Electrode: F
• Selectable Power Supply: 115-230 Vac
• Network Frequency: 50-60 Hz
• Max Power Consumption: 350 VA
• Dimensions LxHxD: 370x144x319 mm
• Weight: 6 Kg

Included Accessories:

• Connection cable for neutral electrode
• 2 Disposable split neutral electrodes
• Electrode and handpiece holder
• Sterilizable handpiece with buttons
• Handpiece dedicated to microsurgery
• Kit of 10 assorted electrodes
• 10 Needles for microsurgery
• 3 Blade electrodes
• 3 Needle electrodes
• 3 Ball electrodes
• Steel neutral electrode
• 2 Disposable neutral electrodes
• Single waterproof footswitch
• 5-meter power cable
