Aspirator - Health Basic

Aerosol aspirators, vapors and fumes - TBH Health

The new ones vacuum cleaners TBH Health for extraction and filtering of fumes, vapors and aerosols are essential devices for the Protection of the doctor and patient During surgeries. In particular, in the Laser surgery, organic micro-particles are released (such as viruses, bacteria, mushrooms, etc.) with dimensions of about 1-2 μm, which can be easily breathed and deposited in the lungs, creating a risk of acute infections Both for your doctor and the patient.

To mitigate these risks, the vacuum cleaners TBH Health they are designed for Effectively remove the suspended particles in the air, guaranteeing a safer work environment.

Characteristics of aspirators TBH Health

Aspirators TBH Health are designed with a Modular design, which allows you to use various accessories and filters, with numerous advantages. Among the main features are there:

• Differential pressure display: Monitoring of filter saturation.
• Energy-saving blower: High negative pressure with Powerful control electronics.
• Compact and manageable design: Positioning on Four pirouetting wheels For ease of displacement.

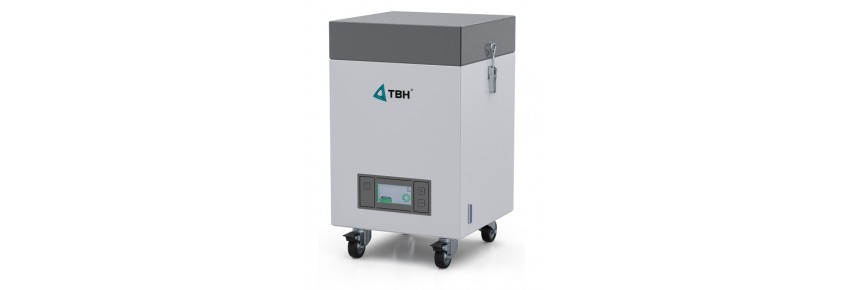

Health Basic - smoke aspirator

Model Health Basic it is specifically designed for the smoke suction generated during Laser surgery, electro-surgery and radio-surgery. During these interventions, LGAC biological microparticles (Laser Generated Air Contaminants) are freed with a diameter between 0.1 and 2 μm, which are effectively removed from the Fabric in the form of steam or gas.

Suction capacity: 220 m³ / h

Full equipment:

• Smoke aspirator on four pirouetting wheels.
• Two-stage filter: H13 particulate filter + activated carbon filter.
• White pre-filter (230 x 230 mm).

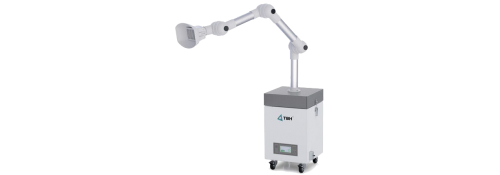

• Jointed aspiring arm for greater flexibility during use.
• Short steel tube for longer life and resistance.
• Differential pressure indicator for monitoring the saturation of the filters.
• Power cord and CD with instructions for easy use.

Additional accessories available:

• Two-stage filter (particulate H13 + activated carbon filter).
• White pre-filter (230 x 230 mm), pack of 20 pieces.
• Control pedal to operate the aspirator without using hands.
• Round transparent plastic hood (Ø 385 mm) or rectangular (245 x 220 mm), both complete with steel tube for the precise and targeted treatment of fumes.

Efficacy against contagion from Covid-19

Aspirators TBH Health have proved to be very effective in individual protection, significantly reducing the risk of contagion from Covid-19 Within surgical work environments. It is important to remember that Surgical masks they are not sufficient to protect against the Microscopic particles generated by laser surgery while aspirators TBH Health They are designed to ensure advanced protection.

Areas of application:

Aspirators TBH Health are particularly suitable for:

• Aesthetic surgery (eg skin removal, epilation, epidermis alteration).
• HF surgery (high frequency electrosurgery).
• Dermo-surgery.
• Endoscopy.

These devices are fundamental to maintaining the work environment free from contaminants and guarantee security during surgical operations.
