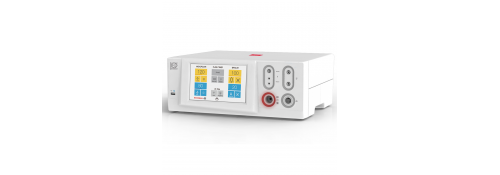

Surtron Touch 200 electronics

Surtron Touch 200 electrosurgical equipment

The SURTRON® TOUCH 200 It is a high-frequency professional electrosurgery that represents the technological evolution of electrosurgery. Ideal for use in numerous medical specialties, it is designed to guarantee maximum reliability, operational safety and ease of use, even for non-expert operators.

Thanks to its wide touchscreen screen, all settings can be configured in a few seconds, both during the initial set-up and during surgery. The operating modes are easily selectable, guaranteeing a fluid and continuous workflow.

The Surtron Touch 200 It allows the execution of surgical procedures with adjustable operating times up to thousandsimal values of a second, or with classic mode. Power control is completely digital, with continuous surveillance via microcontroller to ensure constant safety and precision.

This electrosurgery allows you to do:

• Pure cut cut;
• Cut coagulated blend;
• Engraving with reduced production of Escara Enhanced;
• Surface coagulation Forced COAG;
• Deep coagulations in the absence of soft coag necrosis;
• Cut bipolar cut and coagulous coag.

The system also allows Underwater cutting and coagulation, expanding the application possibilities in complex surgical environments. Functions control is Activated directly from the handpiece, without having to look away from the operating field.

Features:

• Working frequency: 360 kHz
• Power emission time: RF 10ms-30sec
• Power pulse range: RF 1-30
• Neutral electrode: F
• Selectable power supply: 90-240 VAC
• Network frequency: 50-60 Hz
• Max power absorbed: 750 goes
• Dimensions LXAXP: 370x145x300 mm
• Weight: 5.8kg

Integrated security systems:

• Patient / plaque circuit control (OC)
• Continuous monitoring of the power supply
• Self-diagnosis at startup
• Electronic control of the neutral electrode contact / patient
• Activation and power control directly from the handpiece

Recommended applications:

• General surgery
• Outpatient surgery
• Plastic and reconstructive surgery
• Surgical dermatology
• Gynecology
• Urology (tur)
• ENT
• Microsurgery
• Laparoscopic surgery
