Surtron 300 HP

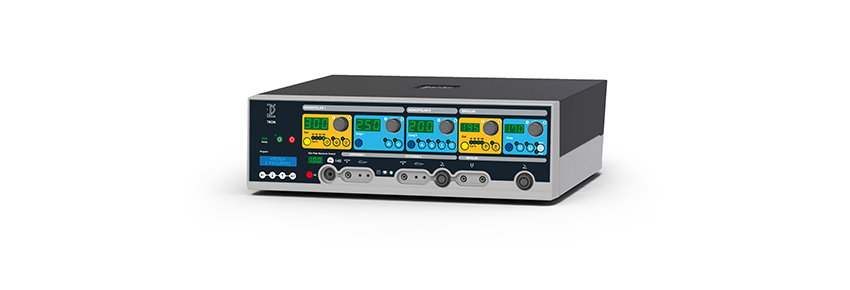

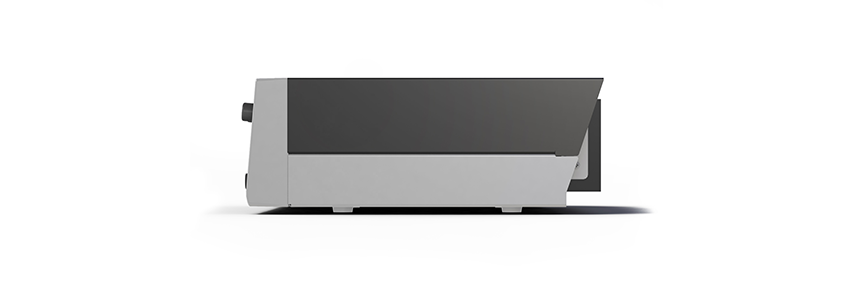

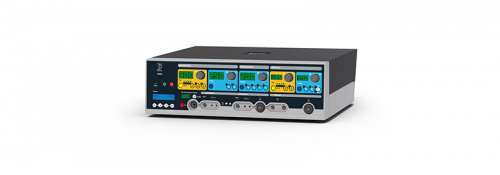

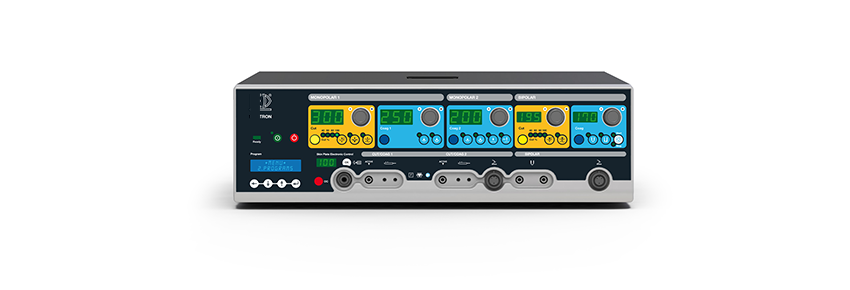

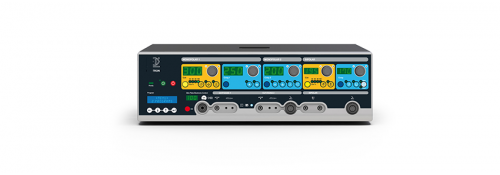

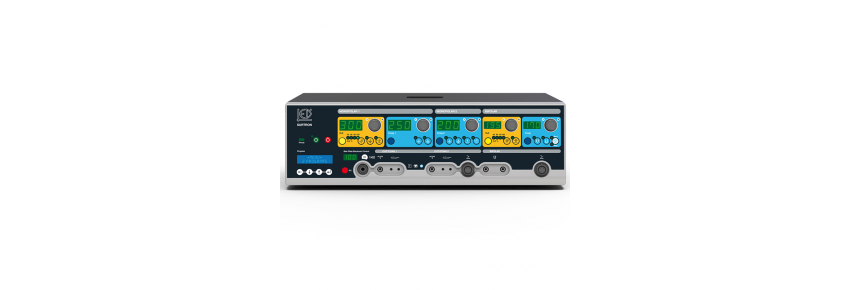

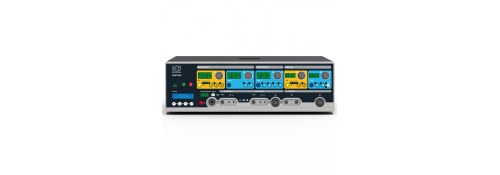

Surtron 300 HP Electrosurgical Unit: Power, Precision, and Surgical Reliability

The Surtron 300 HP is an advanced electrosurgical unit designed to ensure maximum precision and power during complex surgical procedures. With a maximum power of 300 W, it is ideal for many medical specialties, including general surgery, dermatology, gynecology, ENT, urology, and outpatient surgery. The device allows operation in monopolar and bipolar modes, offering complete versatility for all surgical needs, from the most delicate to the most invasive.

Operating Modes and Performance

The Surtron 300 HP has six operating modes to fully customize the treatment according to the type of procedure. CUT mode provides pure cuts with power up to 300 W, ensuring precision and speed, while BLEND mode combines cutting and coagulation for more controlled procedures. FORCED COAG allows fast superficial coagulation, while SOFT COAG enables deep coagulation without necrosis, protecting surrounding tissues. The bipolar modes include BIPOLAR CUT and BIPOLAR COAG, both up to 120 W, ideal for precise and localized cuts and coagulation.

Recommended Surgical Applications

The Surtron 300 HP is suitable for many surgical applications, ensuring safety and precision in every context. In general surgery, it is perfect for complex procedures requiring maximum accuracy. In dermatology, it enables delicate skin treatments and lesion removal. In gynecology, ENT, and urology, it ensures reliable results even in delicate surgeries, while in outpatient surgery, it is ideal for minor but precise procedures.

Features:

• Max monopolar CUT power: 300 W – 300 Ω
• Max cut-coag monopolar CUT80%: 250 W – 300 Ω
• Max cut-coag monopolar CUT60%: 200 W – 300 Ω
• Max cut-coag monopolar CUT40%: 150 W – 300 Ω
• Max cut monopolar ENHANCED: 200 W – 500 Ω
• Max cut-coag monopolar BLEND: 200 W – 300 Ω
• Max coag monopolar SPEEDY: 100 W – 500 Ω
• Max coag monopolar DEEP: 100 W – 200 Ω
• Max coag monopolar SPRAY: 70 W – 2000 Ω
• Max coag monopolar SPRAY ARGON: 70 W – 2000 Ω
• Max bipolar CUT: 120 W – 50 Ω
• Max cut-coag bipolar CUT80%: 120 W – 50 Ω
• Max cut-coag bipolar CUT60%: 120 W – 50 Ω
• Max cut-coag bipolar CUT40%: 100 W – 50 Ω
• Max cut-coag bipolar BLEND: 120 W – 150 Ω
• Max coag bipolar COAG: 120 W – 50 Ω
• Vessel sealing: 200 W – 50 Ω
• Mono/Bipo working frequency: 425 kHz / 525 kHz
• Neutral electrode: F
• Selectable power supply: 115 – 230 Vac
• Mains frequency: 50 – 60 Hz
• Max absorbed power: 1000 VA
• Dimensions LxWxH: 470x150x400 mm
• Weight: 17.5 Kg

Accessories supplied with the device:

• Sterilizable handpiece with buttons
• Disposable handpiece with buttons (5 pcs)
• Short blade electrode (3 pcs)
• Long blade electrode (3 pcs)
• Short ball electrode (3 pcs)
• Sleoped Neutral Electrode Bipartite (5 pcs)
• Neutral electrode connection cable
• Electrode cleaning sponge
• Set of HP400 waterproof double pedals (2 pcs.)
• 5-meter power cable
