Surtron 200W electronics

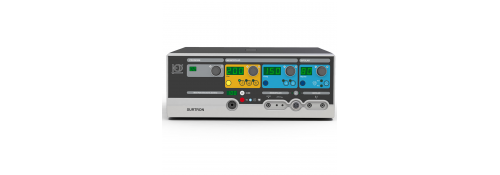

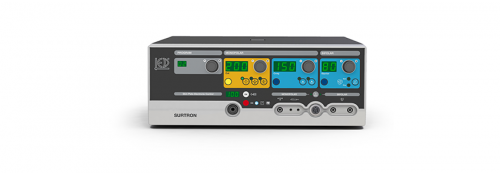

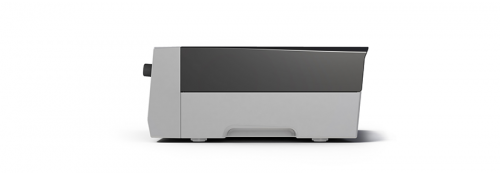

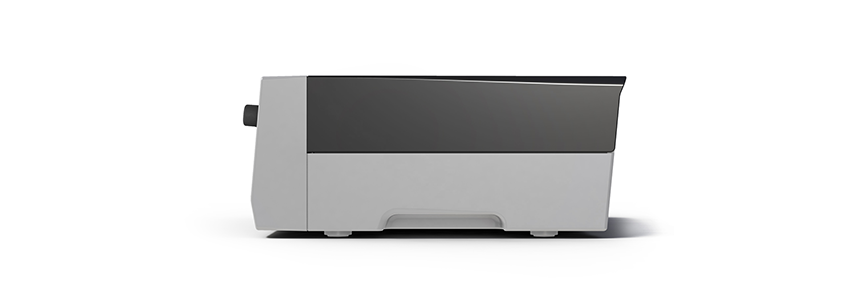

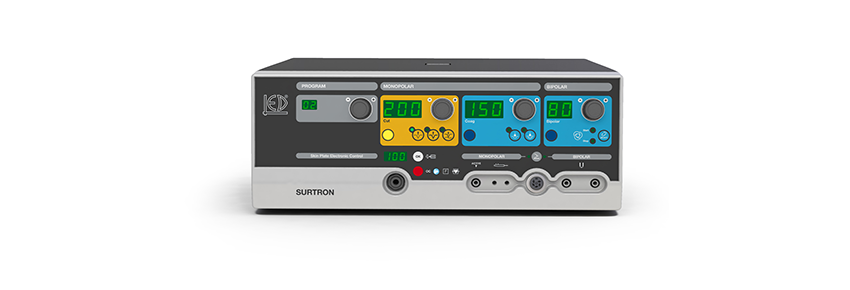

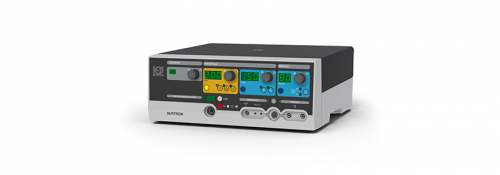

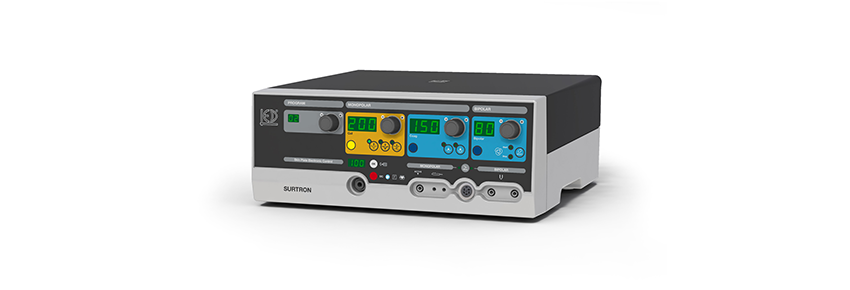

Surtron 200W

The 200W Surtron - also known as Flash 200 - is designed for hospital and clinical environments that need maximum power and versatility. Supports all standard cutting and coagulation modes: CUT, CUT modulated, Blend, Forced COAG, Soft Coag, and bipolar coagulation.

The peculiarity of the model is the continuous or timed emission option, ideal for delicate and prolonged interventions. Intelligent control of power and monitoring of the patient circuit guarantee performance and safety in any clinical context.

The digital reading of the power supply and monitoring by microcontroller of the operating functions, ensures the absolute reliability of working conditions.

Surtron 200W It allows a highly professional surgery thanks to the ergonomic and safety solutions adopted. The connection of the neutral electrode is continuously monitored and, if used a biparted neutral electrode, shown the value of the neutral / patient electrode impedance. The possibility of switching the functions and to control power supply from the electrode holder handpiece allows the execution of surgical interventions without diverting attention from the operating field.

Recommended applications:

• Advanced general surgery
• Gynecology and urology
• Reconstructive plastic surgery
• Hospital departments and operating room
• Laparoscopy

Features:

• Max Cut power: 200 W - 250 Ω;
• Max Enhanced power: 120 W - 250 Ω;
• Max Blend Power: 120 W - 200 Ω;
• Max Forced COAG power: 150 W - 150 Ω;
• Max Power COAG power: 90 W - 100 Ω;
• Max Power Bipolar COAG: 80 W - 50 Ω;
• Working frequency: 600 kHz;
• Neutral electrode: F;
• Selectable power supply: 115-230 VAC;
• Network frequency: 50-60 Hz;
• Max power absorbed: 350 goes;
• Dimensions LXAXP: 370x144x319 mm;
• Weight: 6 kg.
