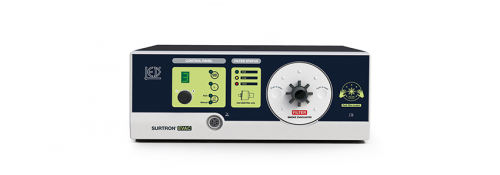

Surtron EVAC vacuum cleaner

Surtron Evac - Suction and filtration system for electrosurgical fumes

The Surtron Evac It is a device designed to deal with one of the most common problems in electrochirgical procedures: i surgical fumes. During the use of the electropisturi, fumes are generated that are not only unpleasant and persistent, but they can also be potentially dangerous For the health of medical and patient personnel. The Surtron Evac Provides an effective solution through an advanced system of suction and filtration, reducing bacteriological and viral risks, and improving visibility during procedures.

Main features:

• Automatic aspiration: The device is equipped with a Remote electronic system which automatically activates the suction as soon as the activation of a high frequency electrochirgge unit is detected. Alternatively, the suction can be activated manually or through a pedal control optional.
• Laparoscopic function: A function is available Specification for laparoscopic surgery, which allows you to quickly select the optimal suction mode for this type of intervention.
• Advanced filtration: The system uses filters Ulpa (Ultra-Low Penetration Air) with one Activated coal layer to remove not only the visible and invisible smoking particles but also Unpleasant odors Generated during procedures.
• Electronic filter control: An electronic system monitors the status of use of the filters, indicating when you need to replace them. This ensures that the device always works at its maximum capacity.

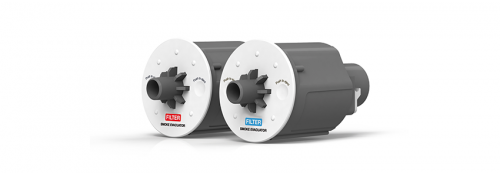

Available filters:

• Blue filter: Standard filter included with the unit.
• Red filter: Optional replacement filter, which guarantees a longer life than the blue filter.

Advantages of Surtron Evac:

• Effective removal of fumes: Thanks to filtration ulpa, Surtron Evac is able to remove the 99.999% of particles Smoke, significantly improving safety and visibility during operations.
• Odor reduction: The layer of active carbon In filters eliminates unpleasant smells of surgical fumes, creating a more comfortable work environment for personnel and patient.
• Automatic and manual control: Aspiration can be managed in a way Automatic, Manual or by command to pedal, Offering great flexibility to the operator.
• Durability of filters: The electronic system for controlling the status of the filters guarantees optimal use, avoiding malfunctions and optimizing the duration of the filters themselves.
• Comfort and portability: The Compact dimensions and the weight of 4 kg They make it easy to move and use in different operating rooms, without compromising performance.

Technical data:

• Power supply voltage: 230 VAC
• Network frequency: 50 Hz
• Max power absorbed: 800 VA
• Maximum suction (empty): 2700 lpm (95 cfm)
• Maximum static aspiration: 250 mbar (83 in H2O)
• Filter type: ULPA with activated carbon
• Filter efficiency: 99.999%
• Particle diameter: 0.3 micron
• Dimensions (LXHXP): 370 x 144 x 319 mm.
• Weight: 4 kg
