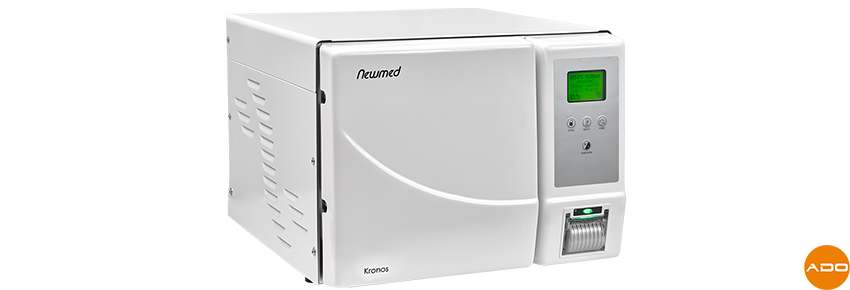

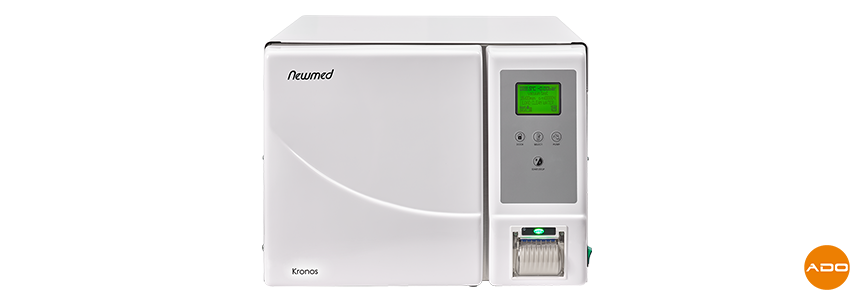

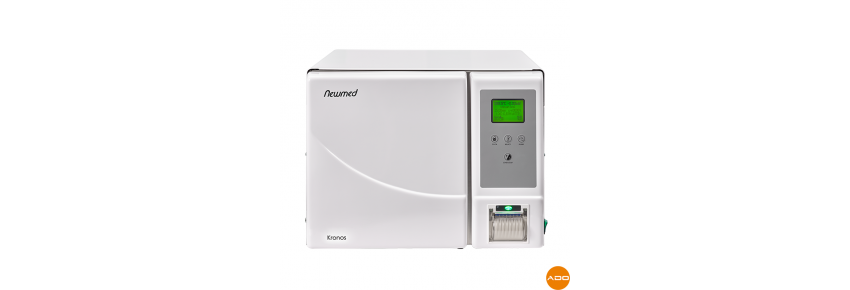

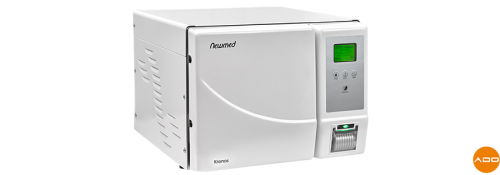

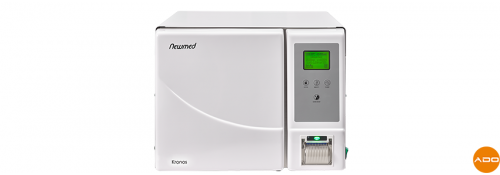

Kronos Class S Autoclave - 18L + OSMO3

KRONOS CLASS S AUTOCLAVE - 18L + OSMO3

The Kronos Class S Autoclave - 18L with OSMO3 is an advanced and safe solution for sterilization, designed for professional environments such as medical offices, clinics, and laboratories. Thanks to the integration of the OSMO3 water purification system and numerous additional features, this autoclave offers excellent performance, safety, and practicality.

GENERAL FEATURES:

VSL - Vacuum Safety Locking

The VSL (Vacuum Safety Locking) technology ensures a secure door closure via a motor, sealing the vacuum chamber. This system prevents any accidental opening during the sterilization cycle, ensuring maximum safety.

Water Purification System (ROSI)

Thanks to the ROSI (Reverse Osmosis) system, the autoclave can purify water with microholes of 0.0001 microns, removing impurities and minerals. It can be connected directly to the water supply (optional) for superior quality water during the sterilization process.

Water Quality Meter

An integrated conductivity meter monitors the quality of the water used in real-time, ensuring that pure and optimal water is always used for sterilization.

USB Archive

The autoclave automatically records each sterilization cycle on a USB flash drive. The data can be easily downloaded and stored on a PC using the provided software for secure cycle management and data traceability (optional with USB Data Logger).

Multilingual and User-Friendly Display

The intuitive and multilingual display makes usage easy and immediate. Four buttons allow for simple navigation between sterilization options, displaying information on cycles and errors, as well as indicating when assistance is needed.

Integrated Thermal Printer

The integrated thermal printer provides detailed documentation of each sterilization cycle. Printed reports can be kept to ensure traceability and complete data archiving.

TECHNICAL FEATURES:

• Type of Vacuum: Pre and Post vacuum, to ensure optimal sterilization of porous materials and complex instruments.
• Integrated Steam Generator: Produces steam throughout the cycle, enhancing sterilization effectiveness.
• Integrated printer;
• M.T.S. (Memory Test System): System to test memory and ensure correct data storage.
• Water Quality Meter: Allows real-time monitoring of water purity.
• Connection to Data Logger: Option for advanced data management via Data Logger (optional).
• USB Data Logger: Optional function to record and store data on a USB flash drive.
• Water Purification System (ROSI): Optional, to obtain purified water directly from the water supply.

Dimensions and Power

• External dimensions: 505Wx615Dx400H mm;

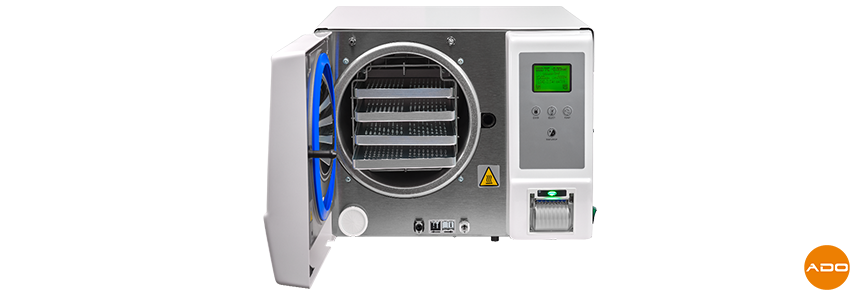

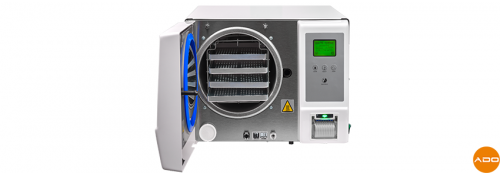

• Chamber dimensions:ø236x381.5 mm;

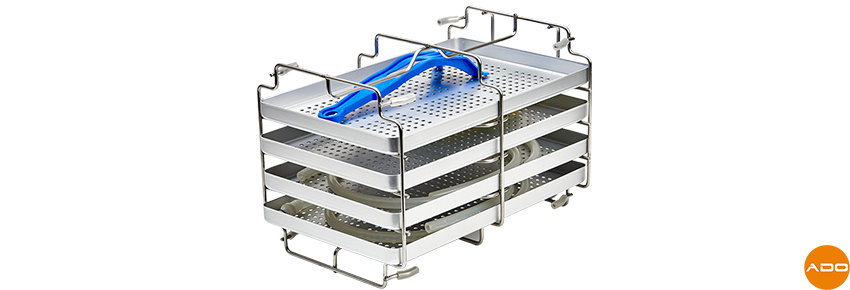

• Tray dimensions: 4 aluminum trays: 185 L x 285 P x 18 H mm;
• Power supply voltage: 230V ± 10%;
• Network frequency: 50-60 Hz;
• Rated power: 2400W.

ADDITIONAL: OSMO3

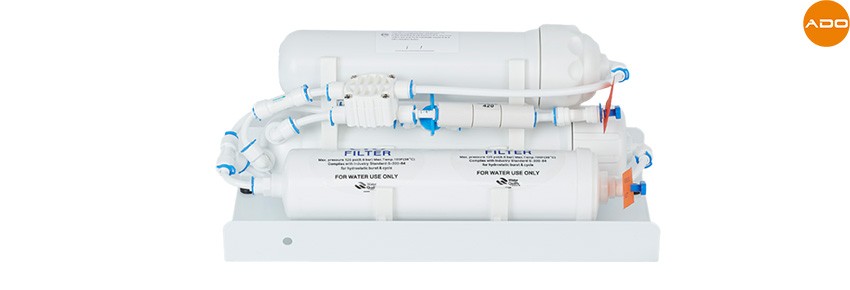

Osmosis system consisting of a carbon pre-filter, followed by a reverse osmosis membrane resulting in high-quality purified water ready for use in the sterilizer. It can be placed anywhere, even 5 meters from the autoclave, and does not require any electrical connection. It operates with the incoming water pressure.

TECHNICAL FEATURES:

• Dimensions: 190 x 360 x 170 mm (H x W x D)
• Filter lifespan: 600L
• Min./max. supply pressure: 2/8 bar
