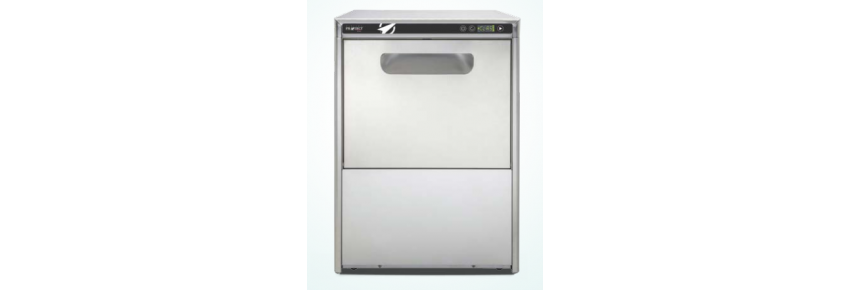

Instrument Washer: Professional Solution for Cleaning and Sterilizing Surgical Instruments and Tools

The Instrument Washer for dental and surgical practices is a highly efficient device designed for the professional cleaning and washing of dental instruments and laboratory glassware. This appliance guarantees optimal results thanks to an advanced high-pressure washing system, adjustable temperature, and volume rinsing, ensuring perfect hygiene, which is essential in professional contexts where accuracy is critical.

Advanced Features of the Instrument Washer

Multiple and Selectable Washing Cycles

The washing duration is completely selectable thanks to a dedicated button, allowing you to choose from 4 preset cycles ranging from 1 to 15 minutes. This flexibility allows you to tailor the washing cycle to the specific needs of each instrument or glassware.

Automatic Drainage

At the end of each washing cycle, the system automatically drains the water, then proceeds with the cleaning of the tank. This ensures that the machine is ready for the next rinse without the need for manual intervention, optimizing workflow.

Automatic Dispensers

The automatic peristaltic dispensers accurately regulate and dose the necessary detergent for each cycle. This automated system reduces human errors and ensures precise dosing, improving the effectiveness of the washing process.

Constant Volume Rinsing

The rinsing is done with clean water from the boiler, at the correct temperature, and mixed with the additive at the right concentration. Thanks to the constant volume system, perfect rinsing is achieved even with low pressure, ensuring that each instrument is completely sanitized. The water used for rinsing is then recovered and reused for the next washing cycle, optimizing water consumption.

Features of the Instrument Washer for Dental and Surgical Practices

• Clean Water Every Cycle: Each washing cycle uses fresh and clean water, ensuring that instruments are always treated with the highest level of hygiene.
• Crossover Washing Jets: The washing jets are designed to ensure uniform and thorough cleaning across the entire surface of the instruments.
• High-Pressure Washing: The device offers high-pressure washing, with adjustable temperature up to 60°C, to effectively remove dirt and residues.
• Adjustable Temperature Rinsing: The final rinse is done with water at adjustable temperature up to 90°C, ensuring complete cleaning.
• Self-Cleaning Structure and Easy Maintenance: The self-cleaning structure facilitates maintenance and reduces the time required for cleaning and upkeep of the device.
• Stainless Steel Baskets: The shiny stainless steel baskets are robust and durable, ensuring long-lasting performance and perfect cleaning of instruments.
• Automatic Drain Pump: The automatic drain pump cleans and prepares the machine for the next washing cycle.

Technical Data of the Instrument Washer

• Power Supply Voltage: 400 V 3N + T
• Maximum Power: 4520 W
• Water Used per Cycle: 4.5 liters
• Basket Dimensions: 350 x 350 mm
• Weight: 30 kg
• Usable Door Passage: 235 mm
• Overall Dimensions: 450 x 480 x 655 mm (L x D x H)

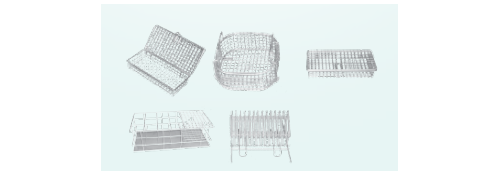

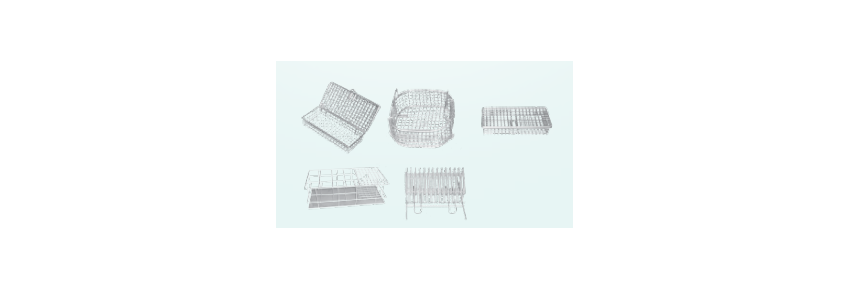

Standard Equipment of the Instrument Washer

• 1 Mesh Basket

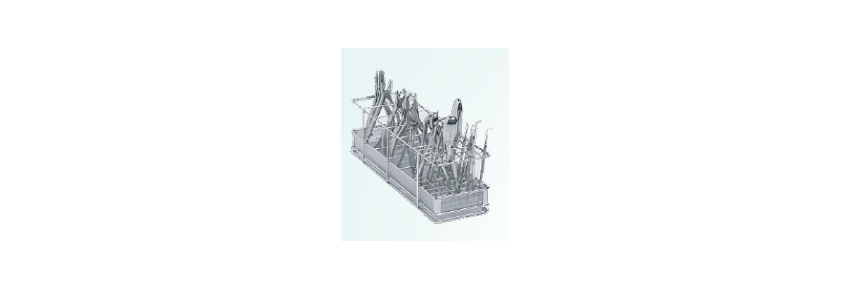

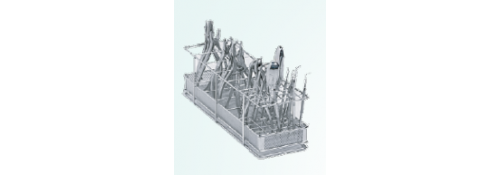

• 1 Tool Holder
• 1 Closed Basket for Small Parts
• 1 Closed Basket for Medium Parts

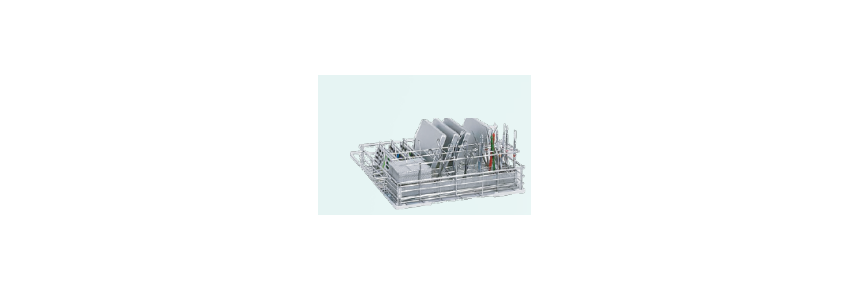

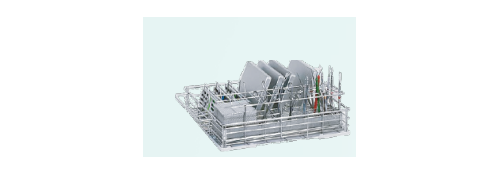

• 1 Tray Insert

Advantages of the Instrument Washer

• High Effectiveness: Thanks to the advanced washing cycles, adjustable temperature, and constant volume rinsing system, this instrument washer is a highly effective solution for cleaning dental instruments and laboratory glassware.
• Maximum Hygiene: Each cycle is designed to ensure impeccable results, using fresh and clean water, preventing contamination and ensuring sanitized instruments ready for use.
• Energy Savings and Resource Optimization: The water reuse system for rinsing contributes to resource savings, while the automatic dosing of detergents ensures optimal use of chemical resources.
• Ease of Use and Maintenance: The easy-to-clean structure and simplified maintenance make this machine a practical choice for dental practices and high-usage laboratories.
