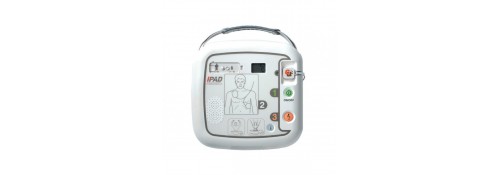

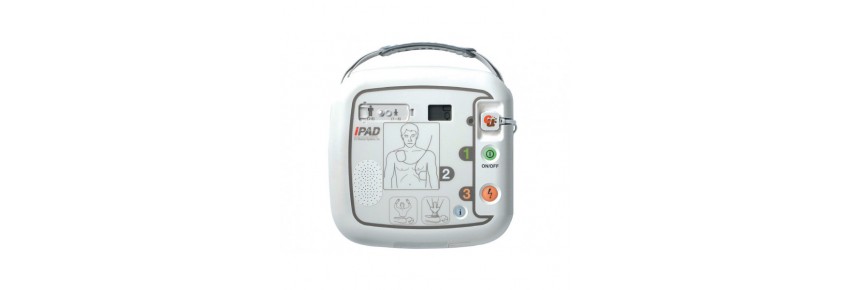

Semiautomatic ipad cu-sp1 defibrillator

IT SHALL BE CAPABLE OF OPERATING AT FREQUENCIES EXCEEDING 5 GHZ UP TO AND INCLUDING 8 GHZ

Specially designed for non-medical personnel.
During rescue manoeuvres the operator is supported by clear voice information and light indicators. The semi-athumatic defibrillator IPAD NF1200 was created to intervene in the situations of Ventricular Fibrillation (VF) and Ventricular Tachicardia. These two situations are the most common cause of sudden arrest of the heart (SCA - Sudden Cardiac Arrest).
The semi-athumatic defibrillator IPAD NF1200 can also be used on children between 1 and 8 years (less than 25 kg) ramified the appropriate pediatric plates (optional). This defibrillator comes with a set of adult electrodes, lithium battery (200 shocks or 10 hours of use), manual.

Compliant with ERC 2010 guidelines.

FEATURES:

• Operational mode: semi-automatic
• Shape of Round: Biphasic exponential truncated (e-cube biphasic)
• Energy: 200J fixed (as from current guidelines)
• Adult energy: 150J Appointments
• Child energy: 50J nominal
• Impedance: 50Ω
• Download Energy Accuracy: %
• Average reorganization time after download: less than 20 seconds
• Protocol: led by light indicators and voice assistant
• Charging control: automatic from software
• Controls: Download Button, i-Button, On/Off
• Light indications: 7 LEDs of different colors, i-Button
• Patient isolation: Type BF
• Battery: 12V DC, 4.2 Ah, LiMnO2. Not rechargeable for long duration
• Minimum battery capacity: 200 discharges or 10 working hours
• Event registration: 40 minutes of ECG, entire related events and decision analysis
• Size: 220x260x70 mm
• Weight: about 2.2kg batteries included
