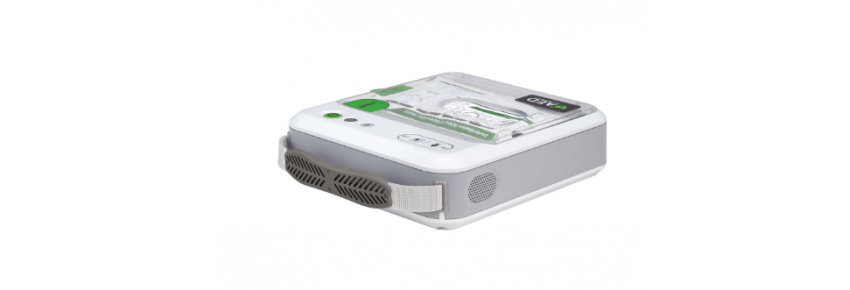

I-PAD Defibrillator (Intelligent Public Access Defibrillator)

The I-PAD Defibrillator is a device designed to be easy to use even by non-medical personnel, with simple and quick operations. It is ideal for public use environments such as stadiums, swimming pools, gyms, schools, and crowded places, thanks to its intuitiveness, compact design, and advanced features that ensure its effectiveness and safety.

Main Features:

Operating mode: Semi-automatic
Waveform: Patented E-cube biphasic exponential trunk, designed to ensure optimal discharge.

Output Energy:

150/200 J (for adults, load of 50 Ω)
50 J (for pediatrics, load of 50 Ω)
Charge control: Automatic patient analysis system to optimize delivered energy.
Patient isolation: Type BF, ensuring safe and protected defibrillation.

ECG Analysis System

Lead: II
Frequency response: 1Hz-30Hz
Function: Analyzes the patient's impedance and ECG rhythms to determine if defibrillation is necessary.
Measured impedance range: 25Ω ~ 175Ω
Rhythm requiring defibrillation: Ventricular fibrillation and rapid ventricular tachycardia (more than 150 bpm for adults and 200 bpm for children).
Automatic Self Tests

The I-PAD defibrillator is equipped with a self-test function that ensures its proper functioning:

At power on
Daily, weekly, and monthly for periodic checks.
Manual: Battery pack insertion test, performed when the user inserts the battery into the device.

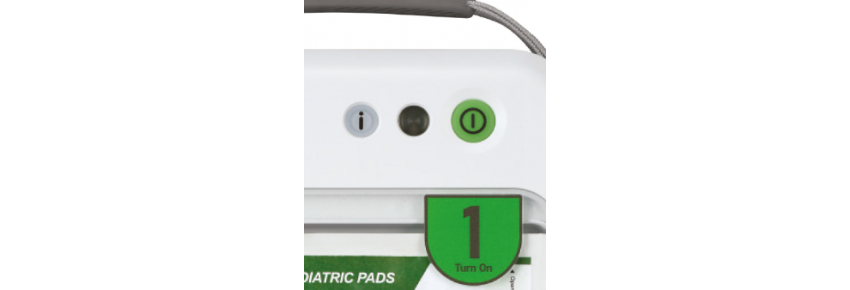

LED Status Indicator

A LED indicator allows for easy visualization of the defibrillator's operational status, clearly signaling when it is ready for use or if it requires attention.

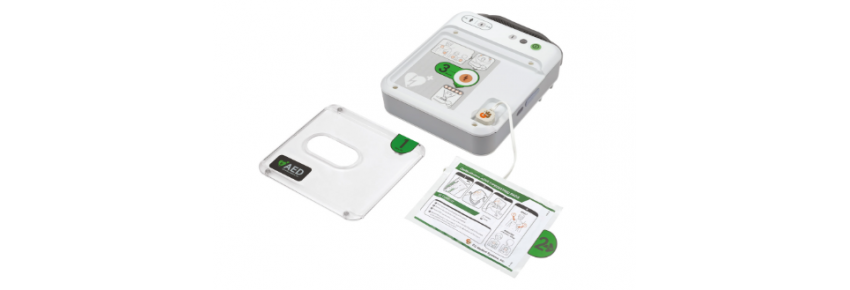

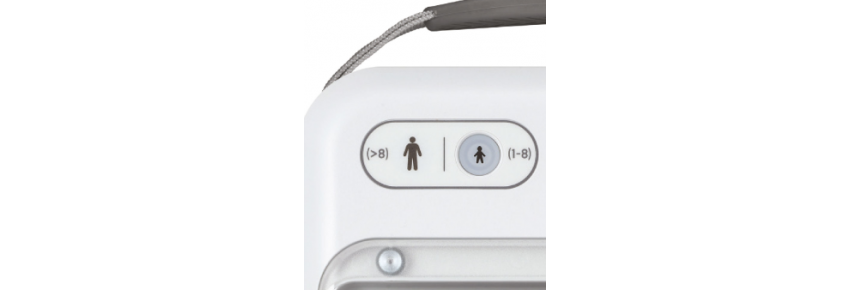

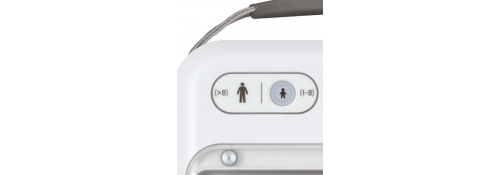

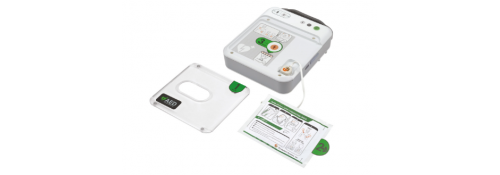

Universal Adult/Pediatric Pads

Type: Universal, suitable for both adults and children
Electrode area: 85 cm² for effective coverage

Operating Conditions

Temperature: From 0°C to 50°C (32°F ~ 122°F)
Humidity: From 5% to 95% (non-condensing), ensuring functionality even in variable environmental conditions.

Included Accessories
