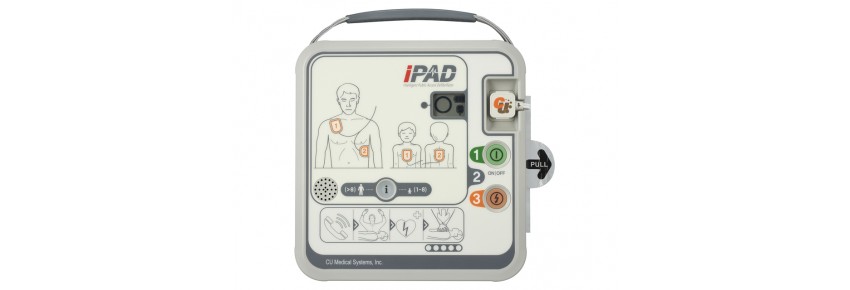

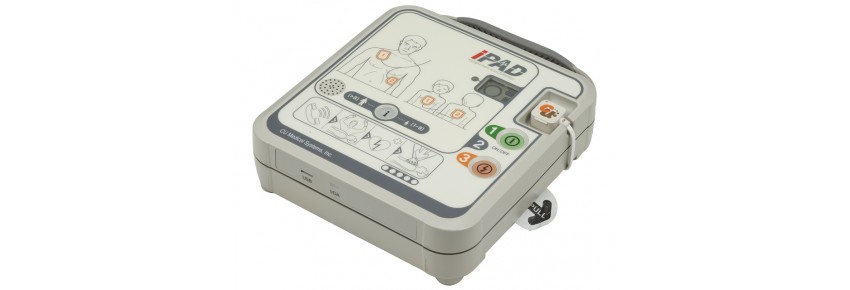

iPad CU-SPR Defibrillator - AED

i-PAD CU-SPR DAE Semi-Automatic Defibrillator for public and professional use.

The i-PAD CU-SPR is an external semi-automatic defibrillator designed to ensure rapid intervention, ease of use, and maximum reliability in cardiac emergency situations. It is suitable for both public access contexts and healthcare and professional environments where it is essential to have a DAE always ready, easy to use, and durable over time.

The device automatically analyzes the patient's heart rhythm via ECG and determines if a shock is necessary, guiding the rescuer throughout the procedure with voice instructions, acoustic signals, and LED graphic indicators. This helps to reduce margins of error and makes rescue more immediate even in stressful operational conditions.

One of the strengths of the CU-SPR is its versatility: it can be used on both adult and pediatric patients thanks to the practical quick switch button, without the need to change devices. The combined adult/pediatric pads further simplify emergency management and speed up preparation for intervention.

The defibrillator is designed to provide concrete guidance during every phase of rescue. The integrated metronome supports more effective CPR, while the CPR phase detection system helps improve the quality of maneuvers. The LCD screen allows for immediate monitoring of the device's status, battery level, and pad condition, ensuring that the DAE's full operability is always under control.

The automatic volume adjustment and background noise analysis make the CU-SPR particularly useful in noisy or challenging environments, where the clarity of instructions can make a difference.

Thanks to the IP66 protection, the i-PAD CU-SPR defibrillator is highly resistant to dust and water jets. This feature makes it suitable for outdoor contexts, humid environments, or demanding operational situations. Its compact structure and lightweight, at approximately 2 kg, make it easily transportable and ready for quick deployment.

To enhance safety and operational continuity, the device performs daily, weekly, and monthly automatic self-tests. It also features automatic internal discharge and a monitoring system that allows for constant verification of usage conditions, reducing the risk of malfunctions when needed.

The CU-SPR uses truncated exponential biphasic waveform defibrillation, an advanced technology designed to ensure therapeutic efficacy. The delivered energy is 200 J for adults and 50 J for children. The discharge time is within 3 seconds of the voice instruction, while the rhythm analysis time is quick, facilitating timely intervention.

The internal memory allows for recording up to 5 treatments, with a capacity of up to 3 hours per single event. Data transfer can occur via USB with an optional flash drive, a useful function for archiving and managing clinical or service information.

Main advantages:

• Simple and intuitive external semi-automatic defibrillator
• Suitable for public and professional use
• Usable on adults and children with quick switching
• Voice guidance, graphic LEDs, and metronome to support CPR
• LCD screen for immediate verification of battery and pad status
• IP66 protection against dust and water
• Automatic daily, weekly, and monthly self-tests
• Combined adult/pediatric pads
• Compact structure and reduced weight
• Data transfer via USB with optional support
• Main technical features
• Operating mode: semi-automatic
• Waveform: truncated exponential biphasic
• Output energy: 200 J adults / 50 J children
• Discharge time: within 3 seconds of voice instruction
• Screen: LCD/LED for device, battery, and pad status
• Battery: LiMnO2 12V DC, 4.2 Ah, single-use
• Autonomy: at least 150 discharges or 6 hours of operation
• Shelf life of battery: at least 5 years
• Internal memory: up to 5 treatments
• Protection: IP66
• Dimensions: 240 x 230 x 70 mm
• Weight: 2 kg
• Standard equipment

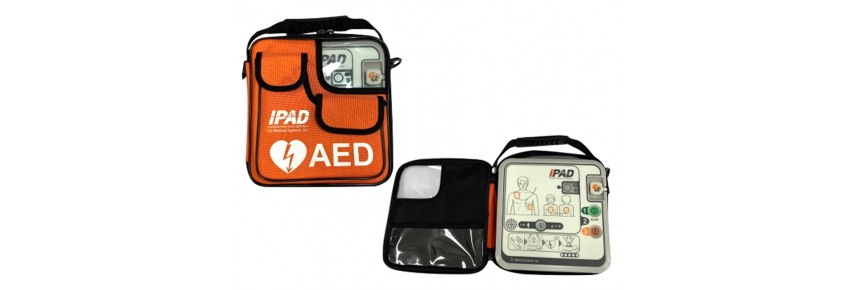

• Carrying bag
• Single-use lithium battery

Type: Medical device

Class: II B

RDM (NSIS): 1909642

CND: Z12030501
