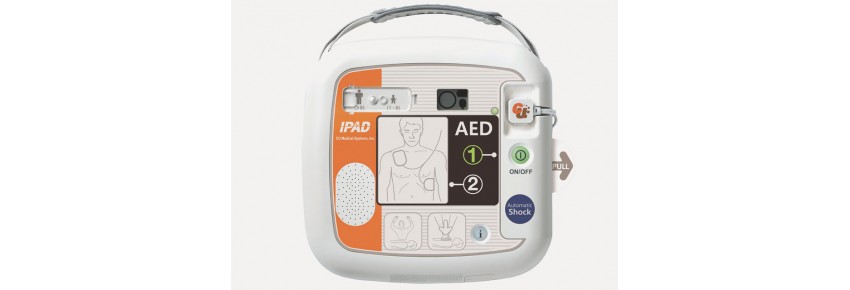

Defibrillator iPad CU-SP1 - automatic

The CU-SP1 is an Automated External Defibrillator (AED) designed to provide advanced and intuitive life support in emergency situations. Classified as a Class II B Medical Device, this tool represents the new frontier in public access defibrillation, integrating innovative technologies to maximize the effectiveness of rescue efforts.

Once connected to the patient, the AED CU-SP1 performs a precise analysis of the electrocardiogram (ECG) to identify potentially lethal arrhythmias such as Ventricular Fibrillation (VF) or Pulseless Ventricular Tachycardia (VT). In the event of identifying a shockable rhythm, the device automatically charges and, upon completion of the process, delivers the electric shock autonomously. The entire rescue process is guided by clear voice messages and LED and graphic indicators, making it accessible even to untrained non-medical personnel.

Distinctive features and benefits for healthcare professionals:

• Automatic volume adjustment: The device adjusts the volume of voice messages to the surrounding environment, ensuring clear and audible communication in any context, from the quietest to the loudest, optimizing the rescuer's attention.
• Pre-connected pads with smart monitoring: The pads, already connected and housed in a dedicated compartment, ensure immediate operational readiness, reducing critical intervention start-up times. A front light indicator proactively signals the expiration status of the pads (at 3 months before expiration and upon expiration), eliminating uncertainty and ensuring maximum efficiency of consumables.
• CPR detection and guidance: The CU-SP1 actively monitors the performance of Cardiopulmonary Resuscitation (CPR), providing real-time voice feedback to instruct the rescuer or encourage them to continue, significantly increasing the chances of successful intervention.
• Advanced communication with CU-EX1 software: Compatibility with CU-EX1 software allows for comprehensive and detailed post-intervention management. Through a simple connection to a PC, it is possible to analyze the complete data of the intervention, including the time of activation, detected heart rhythms, and the number of shocks delivered. This provides valuable insights for training and case analysis.

Main technical specifications:

• Mode: Automatic
• Waveform: Truncated exponential biphasic
• Energy: Adjustable (Adult: 150J; Neonate/Child: 50J)
• Charge time: Less than 10 seconds
• Protection: IPX5 for water jets (IP55) and IP5X for dust, ensuring robustness in various environments.
• Dimensions/Weight: Compact and lightweight (260x256x69.5 mm, 2.4 kg), for easy transport.
• Battery: Single-use high-capacity LiMnO2, with over 200 shocks or 8 hours of operation.
• The CU-SP1 Defibrillator is the ideal tool for healthcare professionals who need a reliable, fast, and easy-to-use device, compliant with the highest standards to ensure maximum safety and improve outcomes in cardiac emergencies.

Optional:

• Maximum Operational Readiness: Pre-connected pads and expiration monitoring for immediate intervention.
• Intuitive and Safe Guidance: Voice messages and LED indicators assist the rescuer step by step.
• Adaptive Effectiveness: Automatic volume adjustment for clarity in every environment.
• Advanced CPR Support: Detection and real-time feedback to optimize resuscitation.
• Detailed Data Analysis: CU-EX1 software for post-intervention review and ongoing training.
• Robust and Reliable: IP55 protection against water and dust for durability in various contexts.

Type: Medical device

Class: II B
