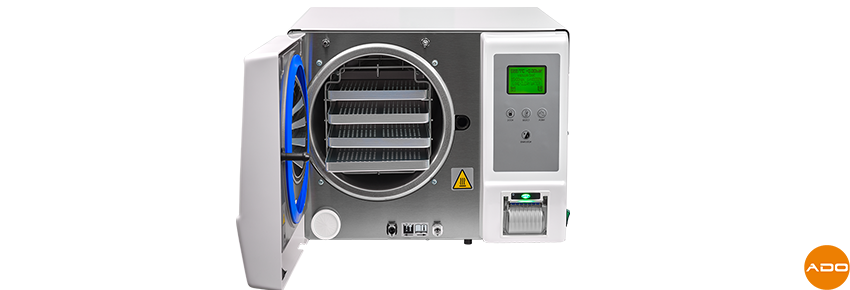

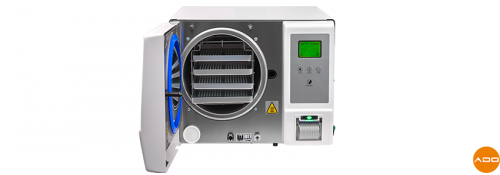

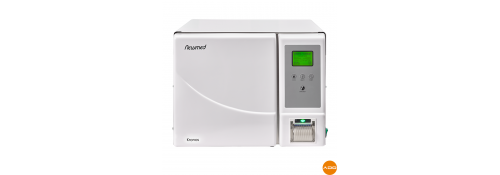

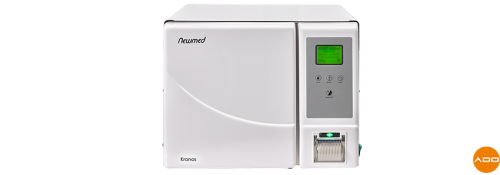

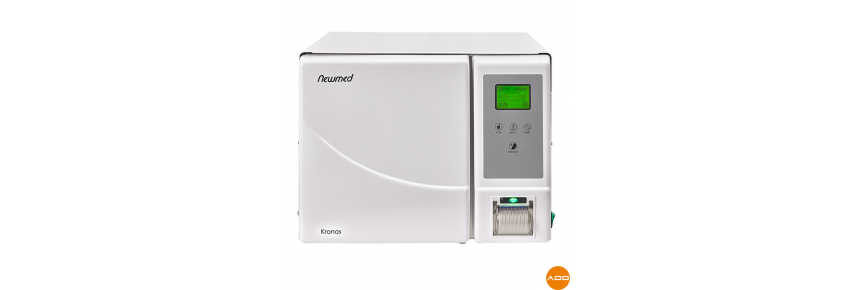

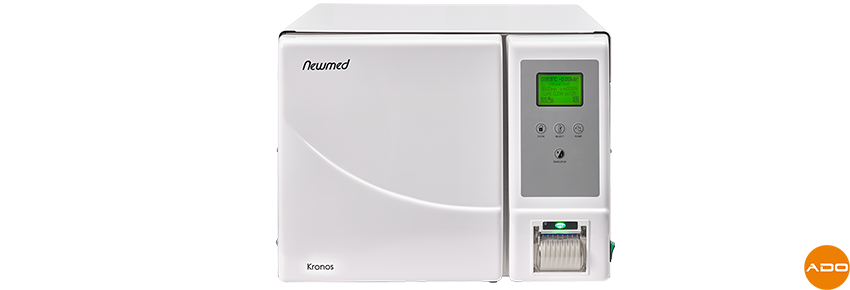

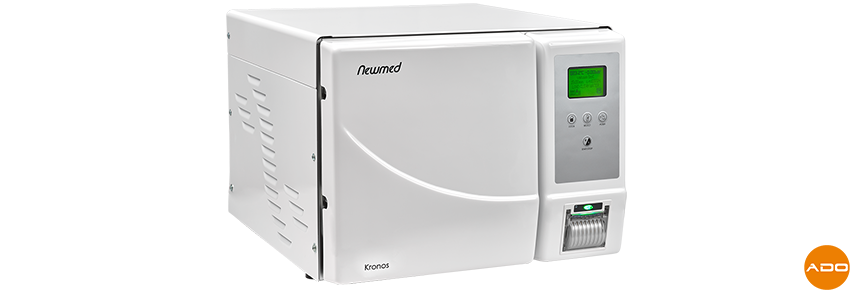

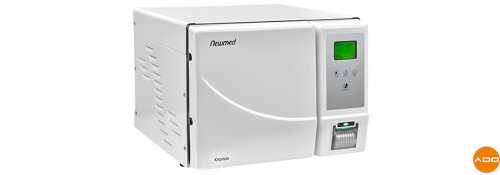

Kronos Class B Autoclave - 23L + OSMO3

AUTOCLAVE KRONOS CLASS B - 23L+ OSMO3

The Kronos Class B Autoclave - 23L with the OSMO3 purification system is an advanced, reliable, and safe solution for sterilization in a professional setting. With a capacity of 23 liters, it offers high performance and optimal water management to ensure consistently safe and effective sterilization cycles.

GENERAL FEATURES:

VSL - Vacuum Safety Locking

The VSL (Vacuum Safety Locking) technology ensures automatic and secure closure of the autoclave door, operated by the motor. The chamber is sealed under vacuum, providing perfect isolation during the sterilization cycle, ensuring greater safety and consistency in the process.

ROSI Water Purification System

The autoclave is equipped with a reverse osmosis water purification system (ROSI) that filters water through microholes of 0.0001 microns, ensuring high-quality water. It is an optional system that allows direct connection of the autoclave to the water supply, reducing maintenance needs and improving sterilization effectiveness.

Water Quality Meter

The integrated conductivity meter continuously monitors water quality, which is checked in real-time during the sterilization cycle. Quality data is transmitted to the user, ensuring that the water used meets optimal standards for effective sterilization.

USB Storage

The USB storage system allows for automatic recording of each sterilization cycle. Data can be downloaded to a PC via the provided software (optional), for complete traceability and record-keeping of cycles.

Multilingual and User-Friendly Display

The multilingual display allows for simple and intuitive navigation through all sterilization options. With just four buttons, the user can easily access cycle information, view any errors, and receive notifications for maintenance or assistance.

Integrated Thermal Printer

The thermal printer provides a permanent record of each sterilization cycle. The printed paper can be kept as proof of the sterilization process, useful for documentation and verification.

TECHNICAL FEATURES:

• Type of Vacuum: Fractionated (to effectively sterilize porous or sensitive materials).
• Integrated Steam Generator: Ensures continuous steam production for optimal sterilization.
• Integrated printer;
• M.T.S. Memory Test System: Advanced system that ensures each sterilization cycle meets safety standards.
• Water Quality Meter: Continuously monitors the quality of the water used, alerting the user when necessary.
• Connection to Data Logger: The autoclave can be connected to a data logger to monitor sterilization cycles and operational data (optional).
• USB Data Logger (Optional): Allows recording of cycle data on a USB stick.
• ROSI Water Purification System (Optional): Allows advanced water purification to improve sterilization quality.

Dimensions and Power

• External dimensions: 505 L x 690 D x 400 H mm;
• Chamber dimensions:ø236x530 mm;
• Tray dimensions: 4 aluminum trays: 185 L x 440 D x 18 H mm;
• Power supply voltage: 230V ± 10%;
• Network frequency: 50-60 Hz;
• Rated power: 2400W.

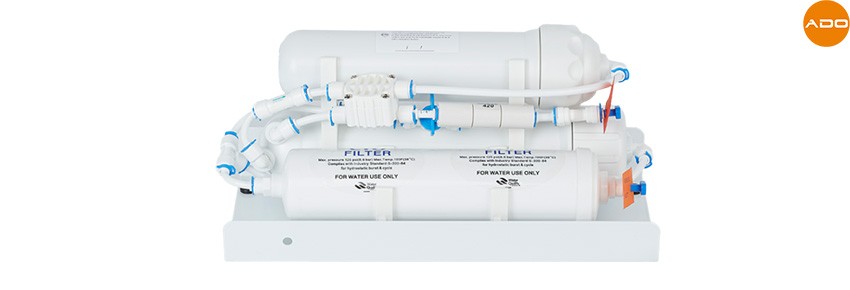

ADDITIONAL: OSMO3

The OSMO3 System is a reverse osmosis purification system that ensures purified water of the highest quality for use in the autoclave, eliminating impurities and minerals that could compromise the sterilization cycle. It consists of a carbon pre-filter followed by a reverse osmosis membrane, producing purified water for each cycle.

TECHNICAL FEATURES:

• Dimensions: 190 x 360 x 170 mm (H x W x D)
• Filter lifespan: 600L
• Min./max. feed pressure: 2/8 bar (operates with incoming water pressure, no electrical power required)
