Kronos Class S autoclave - 23L w/int datalogger + OSMO3

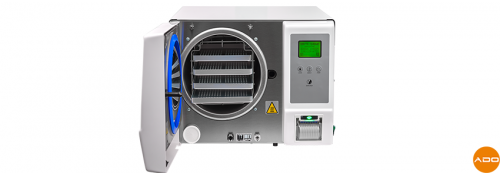

AUTOCLAVE KRONOS CLASS S – 23L w/int datalogger + OSMO3

The Kronos Class S Autoclave – 23L with Integrated Data Logger and OSMO3 is a highly advanced sterilization solution, perfect for professional environments requiring precise and safe management of sterilization cycles. With innovative features such as VSL (Vacuum Safety Locking), the ROSI water purification system, and an integrated Data Logger for recording and storing cycles, this autoclave is ideal for those seeking reliability and ease of use.

General Features

VSL – Vacuum Safety Locking

The VSL technology ensures that the autoclave door is safely sealed under vacuum, preventing any accidental opening during the cycle. The motor controls the closing mechanism, ensuring the sterilization process runs without risk.

ROSI Water Purification System

The autoclave includes the ROSI water purification system, which uses 0.0001-micron micro-pores to purify the water. This system minimizes impurities, ensuring only high-quality water is used during the sterilization cycle. The autoclave can be connected to the water supply (optional).

Water Quality Meter

An integrated conductivity meter continuously monitors water quality, providing constant feedback on purification effectiveness. This ensures the water used in the sterilization process always meets required quality standards.

USB Archive

The autoclave automatically records each sterilization cycle onto a USB drive, which can then be downloaded to a PC using the provided software. This function enables long-term data storage and analysis (optional).

Multilingual and User-Friendly Display

The multilingual display makes the interface simple and intuitive, with four buttons allowing easy navigation through sterilization options. The display provides detailed cycle information, reports errors, and alerts the user when assistance is needed.

Integrated Thermal Printer

The integrated thermal printer automatically records each sterilization cycle, providing a printed report that can be stored and attached to archive files for complete process traceability.

TECHNICAL FEATURES:

• Vacuum Type: Pre and post vacuum
• Integrated Steam Generator: Produces continuous steam throughout the cycle
• Integrated Printer: Real-time cycle recording
• M.T.S. (Memory Test System): Tests device memory to ensure correct data storage
• Water Quality Meter: Constant monitoring during each cycle
• Data Logger Connection: Supports connection to an external data logger (optional)
• USB Data Logger: Optional USB storage for data archiving
• ROSI Water Purification System: Optional reverse osmosis purification system

Dimensions and Power

• External dimensions: 505 L x 690 P x 400 H mm;
• Chamber dimensions: ø236x530 mm;
• Tray dimensions: No. 4 aluminium trays: 185 L x 440 P x 18 H mm;
• Power voltage: 230V ± 10%;
• Network frequency: 50-60 Hz;
• Nominal power: 2400W.

IN ADDITION: OSMO3

The OSMO3 system is a water purification unit featuring a carbon pre-filter and a reverse osmosis membrane. It is designed to produce high-quality purified water ready for use in the autoclave. The system requires no electrical connection and can be placed up to 5 meters away from the autoclave, operating solely with incoming water pressure.

Technical Features:

• Dimensions: 190 x 360 x 170 mm (H x W x D)
• Filter duration: 600L
• Pressure min./max. power supply: 2/8 bar
