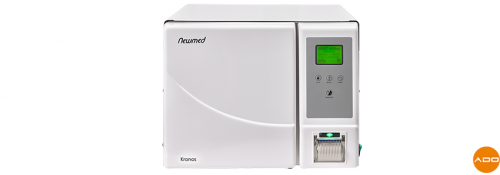

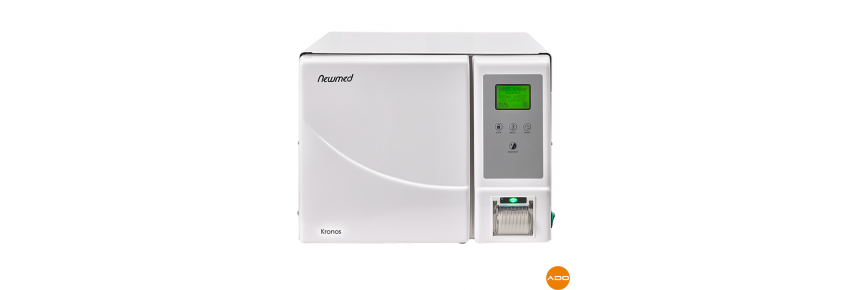

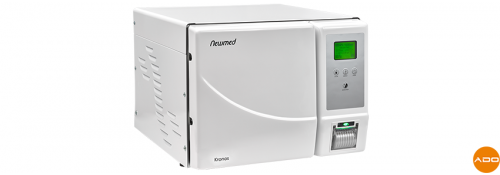

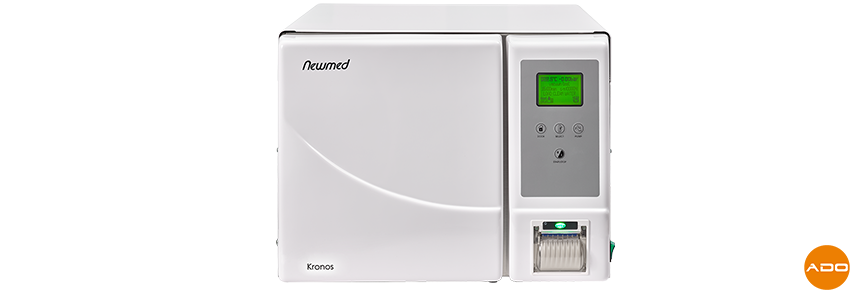

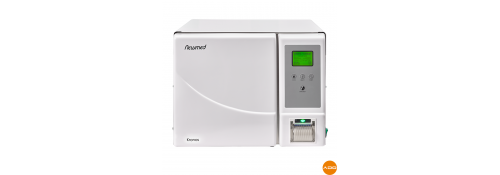

Autoclave Kronos Class S - 23L w/int datalogger

AUTOCLAVE KRONOS CLASS S – 23L w/int datalogger

The Kronos Class S Autoclave – 23L with Integrated Datalogger is one of the most advanced and secure sterilization solutions for professional environments. Designed to offer high performance, safety, and constant monitoring, it is ideal for medical practices, clinics, laboratories, and any setting where sterilization is essential. With the integrated datalogger, this autoclave ensures precise and easily traceable sterilization data management.

General Features

VSL – Vacuum Safety Locking

The VSL (Vacuum Safety Locking) technology ensures that the autoclave door seals safely. The motor activates the closing and vacuum sealing of the chamber, preventing accidental openings during the sterilization cycle and ensuring maximum safety.

Water Purification System (ROSI)

The ROSI reverse osmosis system uses 0.0001-micron micro-pores to purify the water, removing all impurities. The autoclave can be connected to the water supply for a continuous flow of ultra-pure water (optional).

Water Quality Meter

The integrated conductivity meter constantly monitors the water quality during the cycle. Values are transmitted to the user to ensure that the water used in the sterilization process is always high quality, essential for a safe and effective cycle.

USB Archive

The sterilization cycle is automatically recorded and saved on a USB drive. This function allows the data to be transferred to a PC using the provided software, improving monitoring and documentation (optional).

Multilingual and User-Friendly Display

The autoclave display is easy to use and available in multiple languages. With only four buttons, it is possible to navigate the various sterilization options easily. The display provides information about the ongoing cycle, signals possible errors, and notifies when assistance is required.

Integrated Thermal Printer

The integrated thermal printer provides automatic paper documentation for each sterilization cycle, offering a permanent record. The printed report can be archived and attached to files for complete traceability and process control.

Technical features:

• Vacuum Type: Pre and post vacuum for deep and safe sterilization.
• Integrated Steam Generator: Ensures continuous steam production, essential for the process.
• Integrated Printer: Provides a printed report for full traceability.
• M.T.S. Memory Test System: Verifies memory integrity to ensure proper data storage.
• Water Quality Meter: Continuous monitoring of water purity during each cycle.

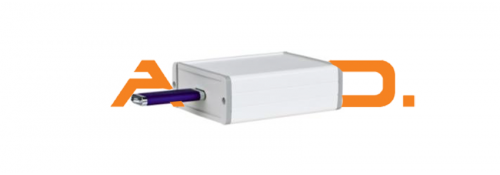

• Data Logger Connection: Supports advanced data management.
• USB Data Logger: Optional function for storing cycles on a USB drive.
• "ROSI" Water Purification System: Optional advanced reverse osmosis purification.

Dimensions and Power

• External dimensions: 505 L x 690 p x 400 h mm;

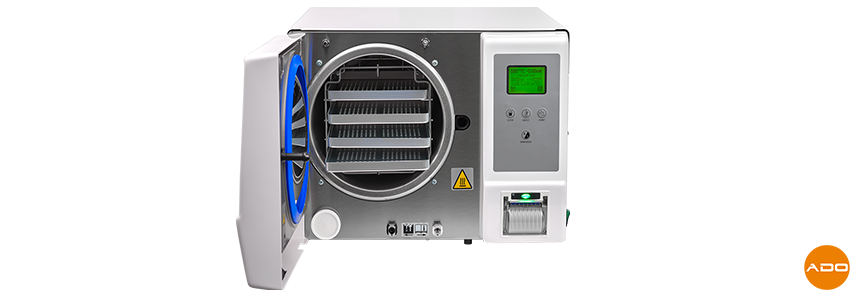

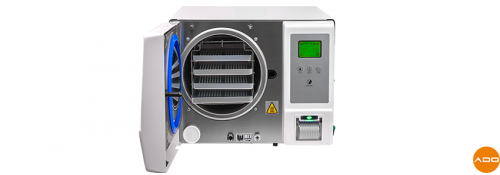

• Chamber dimensions: Ø236x530 mm;
• Tray dimensions: no. 4 aluminum trays: 185 l x 440 p x 18 h mm;
• Power supply: 230V ± 10%;
• Frequency: 50-60 Hz;
• Nominal power: 2400w.
