Kronos Class S autoclave - 23L + OSMO3

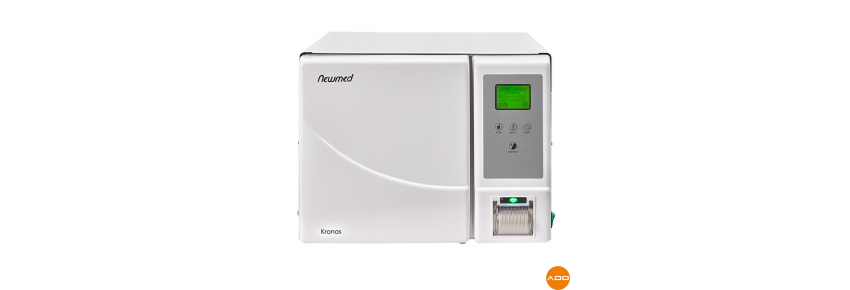

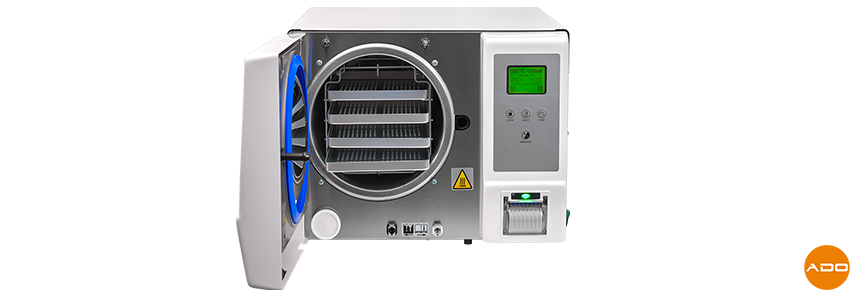

Autoclave Kronos Class S - 23L + OSMO3

TheAutoclave Kronos Class S - 23L It is an advanced solution for sterilization of tools in professional environments, with modern features that improve efficiency and safety. In combination with the Osmo3 water purification systemThis autoclave offers superior performance ensuring reliable results and a secure process. It is ideal for clinics, medical studies, laboratories and other professional environments that require high quality sterilization.

General features

VSL - Vacuum Safety Locking

The VSL technology Ensures a secure and precise closure of the door, which automatically operates by motor, sealing the vacuum chamber. This system prevents accidental openings during the sterilization cycle, guaranteeing maximum safety during use.

ROSI water purification system

The autoclave is equipped with a ROSI reverse osmosis purification system which guarantees a pure water for the sterilization cycle. Water is purified through micro-machines from 0.0001 micron, removing impurities and preventing possible damage to sterilized instruments. The system is optional and can be connected to the water network.

Water quality meter

The autoclave integrates a conducimetro To constantly monitor water quality. The quality is displayed and traced during each cycle, ensuring that the water used in the process is always in accordance with the required standards.

USB file

WithStorage on USB, each sterilization cycle is recorded and can be easily transferred to PC via the included software, for a long-term management and monitoring (optional).

Multilingual and user-friendly display

The autoclave display is simple to use, with four keys For an intuitive navigation. Show detailed information on cycles, report errors and warns when assistance is required, improving interaction with the user.

Integrated thermal printer

The Integrated thermal printer automatically records each sterilization cycle, providing a detailed paper account that can be stored as proof of the correct execution of the cycle. This contributes to ensuring traceability and compliance with sterilization regulations.

Technical features:

• Type of vacuum: Pre and post empty to ensure deeper sterilization.
• Integrated steam generator: Produces steam continuously during the cycle for effective sterilization.
• Integrated printer: Record each sterilization cycle with paper report.
• M.T.S. Memory Test System: Test the device memory to verify the correct data storage.
• Water quality meter: Constantly monitor water quality during the cycle.
• Connection to data logger: Supports a data logger for continuous monitoring and data storage.
• USB Data Logger: Optional option for saving data on a USB stick.
• ROSI water purification system: Purification system through reverse osmosis (optional).

Size and power

• External dimensions: 505 L x 690 p x 400 h mm;
• Room size:Ø236x530 mm;
• Tray size: no. 4 aluminum trays: 185 l x 440 p x 18 h mm;
• Power supply voltage: 230V ± 10%;
• Network frequency: 50-60 Hz;
• Nominal power: 2400w.

In addition: OSMO3

Osmosis system which consists of a coal prefilter, followed by a reverse osmotic membrane with consequent high quality purified water ready for use in the sterilizer. It is possible to place it anywhere, even 5 meters from the autoclave and does not require any electrical connection. Works with incoming water pressure.

Technical features:

• Size: 190 x 360 x 170 mm (h x w x d)
• Filter life: 600l
• Min./max pressure. power supply: 2/8 bar
