91 cm platform ramps

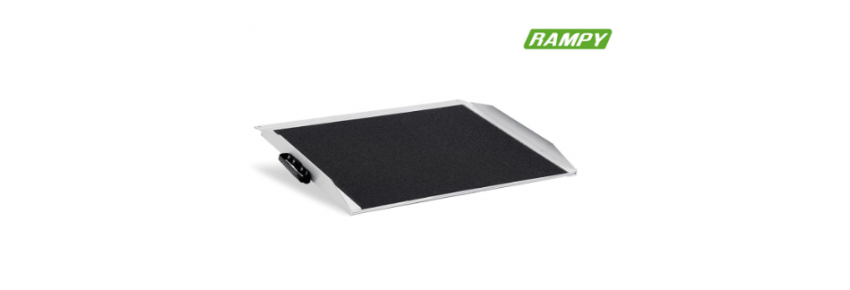

Fixed Ramp for Wheelchairs CR509-2 – Moretti

The wheelchair ramp CR509-2 is an accessory designed to improve the mobility of elderly or disabled individuals, breaking down architectural barriers and making everyday spaces more accessible. Physical barriers such as steps and slopes often pose an obstacle for those with mobility difficulties. With the CR509-2 ramp, moving from one environment to another becomes easier, both inside homes and in public spaces, contributing to promoting inclusivity and the quality of life for people with reduced mobility.

Features of the CR509-2 Ramp: Safety and Ease of Use

The CR509-2 ramp is made of rust-proof aluminum, a durable material that ensures longevity and minimal maintenance, even in outdoor or humid environments. The surface is covered with a non-slip material, providing a secure grip for the wheels of the wheelchair, minimizing the risk of slipping and enhancing safety during use.

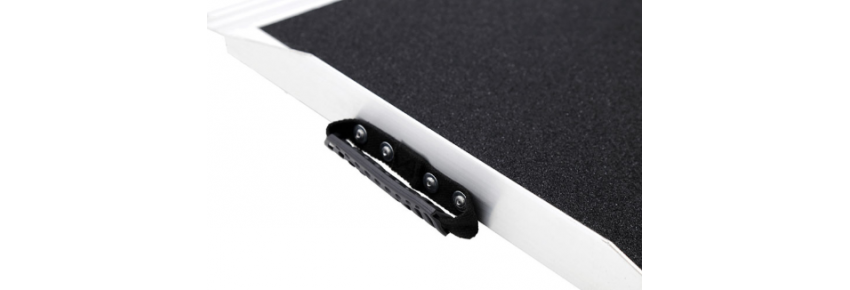

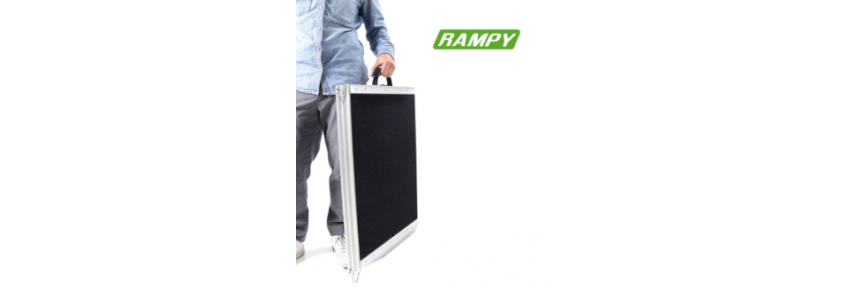

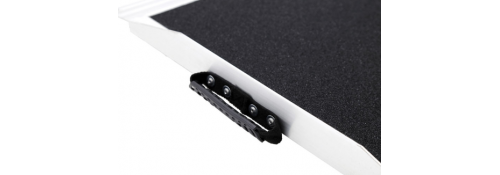

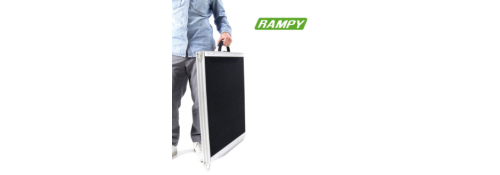

The ramp is designed to be easily transported thanks to a handle located on the front side, allowing it to be moved easily with the assistance of an operator. The compact and portable design makes the ramp particularly suitable for situations where it is necessary to quickly and safely overcome steps or height differences.

Technical Specifications

Product Code: CR509-2
Material: Rust-proof aluminum, non-slip surface
Transport Handle: Yes, for ease of movement
Length: 91 cm
Depth: 73 cm
Weight: 7 kg
Maximum Load Capacity: 272 kg
Slope compliant with Law 13/1989: Maximum 8% (1 cm for every 12 cm of length)
