Portable oxygen concentrator for breath therapy

Portable oxygen concentrator for breath therapy - high concentration oxygen supply with rechargeable battery

The portable oxygen concentrator is the ideal solution for those who need moving oxygen therapy, guaranteeing a continuous and stable flow of high concentration oxygen (87% - 96%) with extremely practicality and ease of use. Lightweight and compact, this concentrator is equipped with long-lasting lithium battery, which allows you to use it anywhere, without the need for a fixed power source. It is ideal for home treatment patients, for travelers or for those who need oxygen therapy during the day, both at home and out.

Main features of the portable oxygen concentrator

High concentration oxygen delivery

The concentrator provides a high-oxygen concentration variable between 87% and 96%, ensuring effective therapy for the treatment of respiratory failure or other medical conditions that require an additional intake of oxygen. With an adjustable flow up to 3.5 l / min, it is perfect for adapting to different therapeutic requirements, offering a constant supply of oxygen.

Long-lasting lithium battery

Equipped with a 14.4 V rechargeable battery, the concentrator guarantees a 5-hour autonomy of continuous use, making it ideal for those in motion or away from feed sources. Thanks to its high-performance battery, you can use the device during daily activities, such as movements, walks or even during sleep, without worries to remain without oxygen.

Compact and portable design

This concentrator is designed to be light and easy to carry. With compact dimensions of 22 cm x 8 cm x 22 cm and a weight of only 1.8 kg (without battery), it can be conveniently transported anywhere thanks to the supplied shoulder bag. Ergonomic design makes it easy to use at any time, allowing complete mobility without compromising oxygen therapy quality.

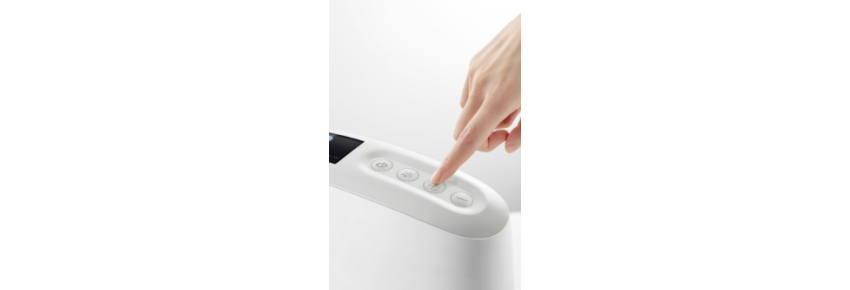

Intuitive LCD display and status indicators

The concentrator is equipped with an LCD display that provides real-time information on the battery life, on the operating status and flow adjustment. This display makes the use of the device even easier and more intuitive, to easily monitor therapy and make sure the concentrator works properly.

Flow adjustment function

The oxygen concentrator offers a modular flow adjustment on 4 levels, to meet the different needs of oxygen therapy. Whether you need a lower or higher flow, you can adjust the concentrator in a simple and precise way, adapting it to the treatment required by the doctor.

Silent and discreet operation

The device operates at a sound level ≤ 55 dB at maximum flow (at 4.20 rpm), making it one of the quietest concentrators of its category. This makes it particularly suitable for use in domestic environments or for night use, without disturbing rest.

Universal and versatile power supply

The oxygen concentrator is powered by a 14.4 V rechargeable battery with a duration of up to 5 hours, but can also be used via external power supply. It can be recharged from a universal 100 V - 240 V AC socket, or via a power supply for cigarette lighter in the machine, allowing a convenient use during trips.

Compatible with high-altitude environments

This concentrator is designed to work even at high altitudes, up to 3000 meters above sea level, without compromising the quality of oxygen supply. It is ideal for those traveling in the mountains or for those who live in high altitude areas.

Detailed technical features

• Output flow: up to 3.5 l / min, adjustable on 4 levels to adapt to different therapeutic needs.
• Oxygen concentration: between 87% and 96% to 0 kPa, for high quality oxygen therapy.
• Sound level: ≤ 55 dB (at level 4, 20 rpm), for silent and discreet use.
• Maximum pressure limit: 150 kPa, for a safe and reliable performance.
• Sound alarm: 53 dB (A) In case of failure or malfunction, notifying the user with an audible alarm.
• Maximum altitude: up to 3000 meters above sea level, ideal for use in high environments.
• Inspiratory trigger sensitivity: minimum 0.5 cm H2O, for precise operation.
• Range Breaths per minute: from 15 rpm to 40 rpm, to adapt to different respiratory frequencies.
• Dimensions: L: 22 cm, P: 8 cm, h: 22 cm.
• Weight: 1.8 kg (without battery), very light and easy to carry.

Accessories included

• The portable concentrator is supplied with all the necessary accessories for immediate and practical use:
• 1 AC power supply: To recharge the concentrator from a domestic electrical outlet.
• 1 Cigarette lighter power supply: to recharge the travel device, using the car cigarette lighter.
• 1 filter: To ensure that the obstruction is always clean and safe.
• 1 oxygen cannula: for direct and comfortable administration of oxygen.
• 1 14.4 V battery: which guarantees up to 5 hours of continuous autonomy.
• 1 Shipping bag: for easy portability of the concentrator.
