Instrument Washer

Instrument Washer: Professional Solution for Cleaning and Sterilizing Surgical and Dental Tools

The Instrument Washer for dental and surgical offices is a highly efficient device designed for the professional cleaning and washing of dental instruments and laboratory glassware. It guarantees optimal results thanks to its high-pressure washing system, adjustable temperature, and volume-controlled rinsing, ensuring perfect hygiene, essential in professional settings where accuracy is crucial.

Advanced Features of the Instrument Washer

Multiple Selectable Wash Cycles

The wash duration is fully adjustable via a dedicated button, offering 4 preset cycles ranging from 1 to 15 minutes. This flexibility allows adaptation to the specific needs of each instrument or glassware.

Automatic Drainage

At the end of each cycle, the system automatically drains water and cleans the tank, preparing the washer for the next rinse without manual intervention, optimizing workflow.

Automatic Dispensers

Peristaltic dispensers accurately dose the cleaning solution for each cycle, reducing human errors and improving wash effectiveness.

Constant Volume Rinse

Rinsing uses fresh water from the boiler at the correct temperature, with the proper concentration of additive. The constant-volume system ensures thorough rinsing even at low pressure, and the water is recycled for the next wash cycle, optimizing water usage.

Key Features for Dental and Surgical Use

• Fresh Water Every Cycle: Ensures maximum hygiene for each instrument.
• Cross-Jet Washing: Provides uniform and thorough cleaning of all surfaces.
• High-Pressure Wash: Adjustable temperature up to 60°C to remove dirt and residues effectively.
• Adjustable Temperature Rinse: Final rinse up to 90°C for complete hygiene.
• Self-Cleaning and Low Maintenance: Simplifies upkeep and saves time.
• Stainless Steel Baskets: Durable and polished for perfect instrument cleaning.
• Automatic Drain Pump: Prepares the washer for the next cycle effortlessly.

Technical Data

• Power Supply: 400 V 3N + T
• Maximum power: 4520 W
• Water Used for Cycle: 4.5 liters
• Basket Dimensions: 350 x 350 mm
• Weight: 30 kg
• Door Passage: 235 mm
• Overall dimensions: 450 x 480 x 655 mm (L x P x H)

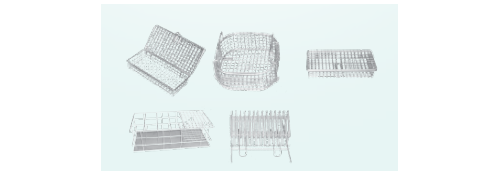

Standard Equipment of Lavastrumenti

• 1 Wire Basket

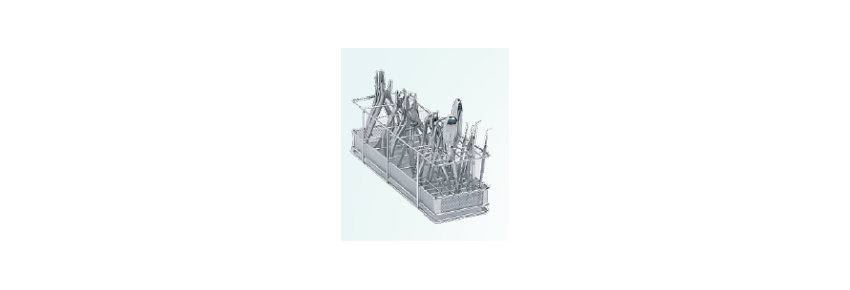

• 1 Tool Holder
• 1 Closed Basket for Small Parts
• 1 Closed Basket for Medium Parts

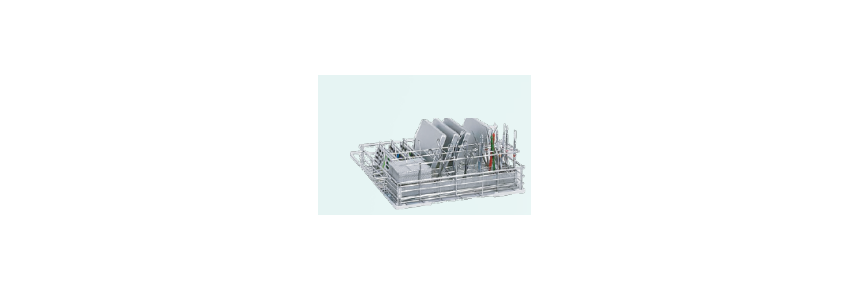

• 1 Trays insert

Advantages of the Instrument Washer

• High Efficiency: Advanced wash cycles, adjustable temperature, and constant-volume rinse provide professional-grade cleaning.
• Maximum Hygiene: Every cycle uses fresh clean water, preventing contamination and ensuring sterile instruments.
• Resource Optimization: Water recycling and automatic detergent dosing ensure energy and chemical savings.
• Ease of Use and Maintenance: User-friendly structure and simple maintenance make it ideal for high-intensity dental offices and laboratories.
