ACEM57 Surgical Lamp - From Stand

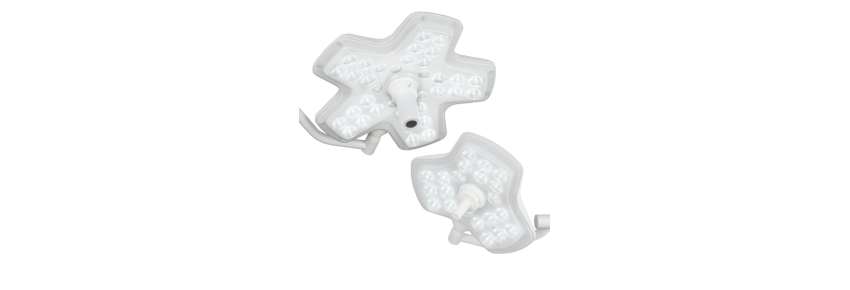

LED Surgical Lamp ACEM57 on Stand: Performance and Reliability for Every Surgical Procedure

The LED Surgical Lamp ACEM57 on stand is designed to provide exceptional lighting for all types of surgical procedures, from minor to highly complex. With advanced LED technology and an ergonomic and compact design, this lamp is ideal for modern operating rooms that require uniform, bright, and shadow-free lighting. The ease of movement and simple maintenance make the ACEM57 an excellent choice for dynamic surgical environments.

Main Features

• Advanced LED Technology: The ACEM57 consists of 140 LEDs arranged in 35 light groups, ensuring intense and uniform light. The distribution of the LEDs allows for optimal performance, without shadows, for perfect visibility during the surgical procedure.
• Optimal Lighting: The lamp provides a luminous intensity of 160,000 LUX at the center, with the ability to adjust the intensity from 10% to 100% to meet every operational need. The light depth is 117 cm at 20% brightness and 71 cm at 60% brightness, allowing for deep illumination of the surgical area.
• Adjustable Color Temperature: The color temperature of the lamp can vary between 3,000 °K and 5,700 °K, to provide the best visibility based on the needs of the procedure, perfectly adapting to working conditions.
• High Light Quality: The color rendering index (Ra) is 99/98/99, while the R9 index is above 90, ensuring a faithful representation of the colors of biological tissues and optimizing diagnostic accuracy.

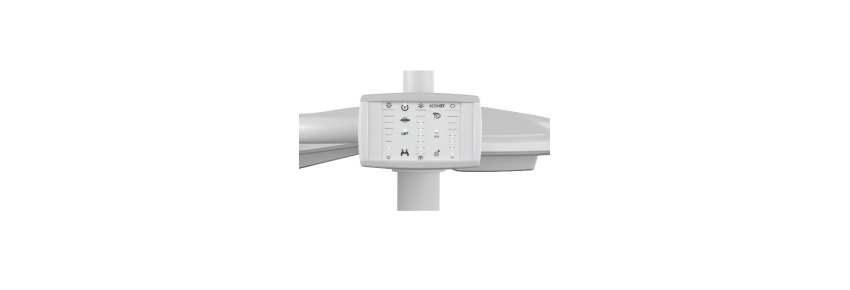

• Touchscreen Control Panel: The ACEM57 is operated via a touchscreen control panel, available in two versions: STANDARD or PREMIUM (optional). The panel is ergonomic and easy to use, allowing for intuitive control of the lamp.

Technical Details

• Safety Class (EN 60601-2-41): Class I, compliant with safety standards for medical devices.
• Power Supply Voltage: 100 - 240 VAC ±10%, compatible with various network voltages.
• Power Consumption: 69 W, for excellent energy efficiency.
• Frequency: 50/60 Hz.
• LED Lifespan: 60,000 hours, ensuring a long service life and reducing maintenance costs.
• Diameter of Lamp Body: 74 cm, with a weight of 4 kg for the lamp itself and 23 kg for the complete support.
• Weight of Support: 23 kg, for a stable and secure installation.
• Low Ceiling Arms (LCH): Available for optimal mounting in tight spaces.

Main Advantages

• Powerful and homogeneous lighting: With 160,000 LUX and optimal light depth, the ACEM57 offers excellent lighting for all types of surgical procedures.
• Precise light control: The ability to adjust the intensity from 10% to 100% allows for adapting the lighting to every specific situation.
• High visual quality: The adjustable color temperature and high color rendering index (Ra 99) ensure a detailed and accurate view of tissues.
• Easy to maintain: The smooth surface of the lamp is designed to be easily cleanable, reducing the risk of contamination and improving hygiene in the operating room.
• Ergonomics and maneuverability: The compact and lightweight design allows for easy movement of the lamp, enhancing flexibility and practicality during surgical operations.

Main Applications

The ACEM57 on stand is ideal for a wide range of surgical applications, including:

• General surgery.
• Orthopedic surgery.
• Vascular surgery.
• Ophthalmology and other specialties.

Design and Maintenance

The compact and robust design of the ACEM57 allows for space-saving and ensures stability during use. The smooth and durable surface helps maintain high hygiene standards and simplifies cleaning and disinfection operations.
