SPIROBANK II SMART + SOFTWARE FOR PC MIR SPIRO

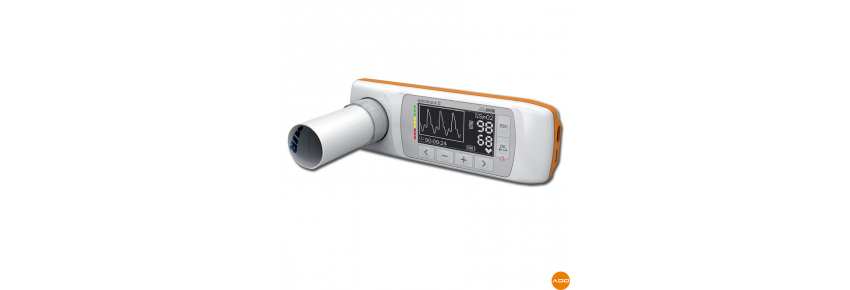

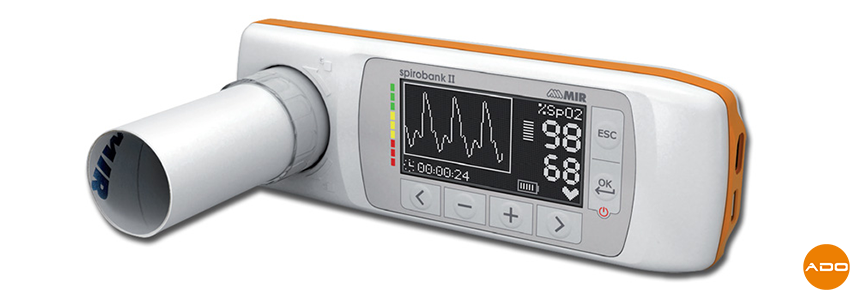

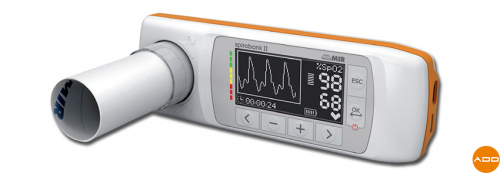

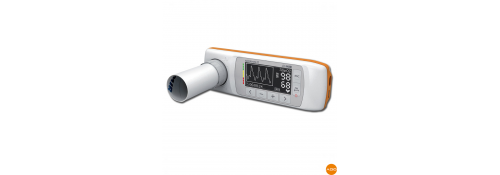

Spirobank II Smart with Winspiro Pro Software and Professional Oximeter

The Spirobank II Smart is a portable professional spirometer Made in Italy, designed to ensure accurate measurements, clinical reliability, and maximum ease of use. In combination with the MIR Spiro PC software, it represents a complete and modern solution for spirometry and oximetry, ideal for clinics, hospitals, and respiratory diagnostic professionals.

Portable Spirometer

The device features internal memory for up to 10,000 spirometry tests and a high-resolution monochrome LCD display with an intuitive interface, managed via a 6-key membrane keyboard.
The rechargeable lithium battery (3.7 V – 1100 mAh) ensures approximately 50 hours of continuous use and can be easily recharged via USB port.

Main Features:

• USB 2.0 or Bluetooth® 4.0 connection
• Internal temperature sensor for automatic BTPS conversion
• Automatic recording of the spirometry session, including the best test
• Bidirectional digital turbine flow sensor
• Volume accuracy: ±2.5% or 50 mL
• Flow accuracy: ±5% or 200 mL/s
• Dynamic resistance: < 0.5 cm H₂O/L/s

Available Tests: FVC, VC, IVC, MVV, PRE and POST bronchodilation.

MIR Spiro PC Software

The MIR Spiro software is a state-of-the-art platform for spirometry and oximetry, compliant with ATS/ERS 2019 guidelines, featuring a customizable graphical environment and an extremely intuitive interface.
The annual license is included and allows for automatic updates to always maintain the latest version.

Main Functions:

• FVC and SVC Pre/Post Spirometry
• Spot Oximetry
• 24h Oximetry Holter
• 6MWT Oximetry and Sleep Oximetry
• Advanced patient management and chronological test comparison
• Standard ATS 2019, NIOSH/OSHA prints and quality grade
• Data export in Excel, CSV, ATS, HL7, GDT
• Emphysema Severity Index (ESI) with Artificial Intelligence support

Compatibility and System Requirements

• Windows: 8, 10, 11 (32/64 bit)
• Mac OS: from version 10.13
• Connection via USB or Bluetooth Low Energy
• Multilingual software

Included Equipment

• Spirobank II Smart
• MIR Spiro PC Software (1-year license)
• USB Cable
• Reusable Turbine
• Carrying Case
• Multilingual Manual

Physical Specifications

• Weight: 140 g
• Dimensions: 55 × 160 × 25 mm
• Display: 160 × 80 pixels
