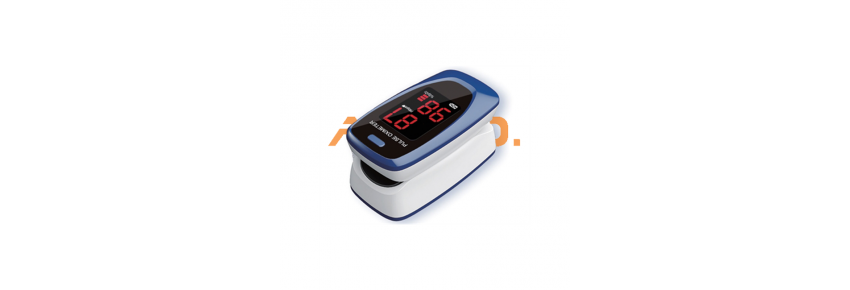

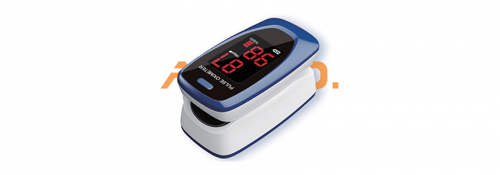

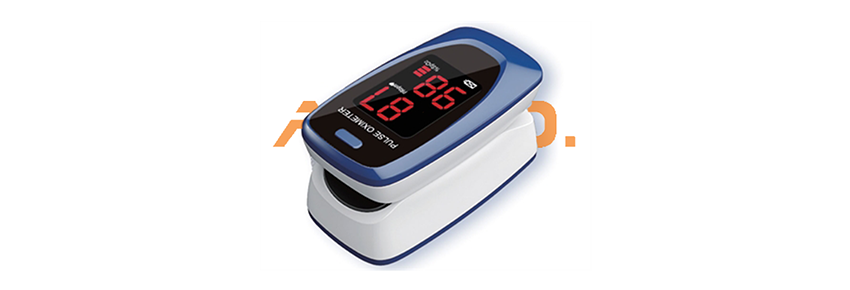

Mini fingertip pulse oximeter for adults

MINI FINGER PULSE OXIMETER FOR ADULTS

Indicates both oxygen saturation measurement and heart rate from the patient's finger.

• SpO2 displayed on the screen
• Pulse rate visualization, bar graph
• Low battery indicator
• Automatic shutdown: the unit automatically turns off within 5 seconds if the finger is not positioned in the probe

TECHNICAL SPECIFICATIONS:

• Display type: LED
• SpO2 measurement range: 0 - 100%, (resolution 1%)
• Accuracy: 70 - 100%: ± 2%, below 70% unspecified
• PR measurement range: 30 - 250 bpm, (resolution 1 bpm)
• Accuracy: ± 2 bpm or ± 2% (select the greater)
• Measurement performance in weak filling conditions: SpO2 and heart rate are displayed correctly when the pulse-filling ratio is 0.4%.
• SpO2 error is ± 4%, heart rate error is ±2 bpm or ±2% (select the greater)
• Power consumption: less than 25 mA
• Voltage: DC 2.6 V - 3.6 V
• Battery operation: two batteries can operate continuously for 24 hours
• Safety: internal battery, type BF
• Dimensions - weight: 60x30.5xh 32.5 mm - 50 g including the two batteries
