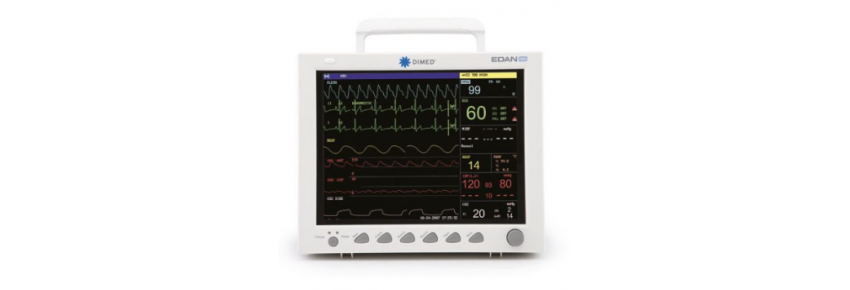

Multiparameter Patient Monitor – 12.1″/10.1'' Display

Multiparameter Patient Monitor with Optional Printer – 12.1″ Display

The multiparameter patient monitor with optional printer is designed to ensure precise and reliable monitoring in clinical settings. With a high-resolution 12.1″ color LCD-TFT display, it provides a clear and detailed view of vital parameters. The compact and durable structure is ideal for daily use, while the integrated handle facilitates transport between different treatment areas.

This device is capable of monitoring a wide range of vital parameters, including ECG, respiration (RESP), oxygen saturation (SpO2), non-invasive blood pressure (NIBP), heart rate (PR), and temperature (2-TEMP). It is perfect for use on adult and neonatal patients, thanks to its versatility and accuracy. Additionally, the monitor features arrhythmia analysis, pacemaker detection, and advanced functions for protection against electrosurgical interference, ensuring safe and accurate monitoring in complex medical environments.

The device's memory allows for the recording of up to 96 hours of data, with the ability to store 500 NIBP measurements and 60 alarm events, thus ensuring comprehensive and detailed patient documentation. The USB port allows for easy data transfer for further analysis or storage.

Technical Specifications

Display

Color LCD TFT: 12.1”
Resolution: 800×600
Displayed traces: up to 8
Displayed waveforms: up to 11
Oscillation: 6.25, 12.5, 25, 50 mm/s

ECG

Leads: 5 Leads and 3 selectable leads
Display sensitivity: Auto x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Scanning speed: 6.25, 12.5, 25, 50 mm/s
Heart rate (HR) range:

Adults 15~300 bpm
Pediatric/Neonatal 15~350 bpm

Resolution: 1 bpm
Accuracy: ±1 bpm or 1%
Filter: Diagnostic mode 0.05 – 150 Hz / Monitoring mode 0.5 – 40 Hz / Surgical mode 1 – 20 Hz

Diagnostic mode 0.05 ~150 Hz
Monitoring mode 0.5~40 Hz
Surgical mode 1~20 Hz

Segment monitoring: Measurement range -2.0 mV ~ 2.0 mV; Alarm range -2.0 mV ~ 2.0 mV

RESP

Method: transthoracic impedance
Operation: automatic/manual
RR measurement range: Adults 0 ~150 rpm; Pediatric/Neonatal 0~150 bpm
Resolution: 1 rpm
Apnea alarm threshold: 10, 15, 20, 25, 30, 35, 40 s
Bandwidth: 0.2 – 2.5 Hz (-3 dB)
Scanning speed: 6.25, 12.5, 25, 50 mm/s

SpO2

Measurement and alarm range: 0~100%
Resolution: 1%
Accuracy: ±2% (70~100%, Adults, Pediatric); ±3% (70~100%, Neonatal)
Pulse measurement: 25~300 bpm
Resolution: 1 bpm
Update frequency: 1 second

NIBP

Method: Automatic oscillometric
Operation: Manual/Automatic/Continuous
Measurement interval in automatic mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
Measurement unit: mmHg/kPa
Measurement type: Systolic, Diastolic, Mean
Pressure range:

– Adults - Systolic 40~270 mmHg; Diastolic 10~215 mmHg; Mean 20~235 mmHg
– Pediatric - Systolic 40~200 mmHg; Diastolic 10~150 mmHg; Mean 20~165 mmHg
– Neonatal - Systolic 40~135 mmHg; Diastolic 10~100 mmHg; Mean 20~110 mmHg

Resolution: 1 mmHg
Accuracy: Max mean error ± 5 mmHg
Max standard deviation: 8 mmHg
Pulse measurement range from NIBP: 40~240 bpm
Resolution: 1 bpm
Accuracy: 3 bpm or 3.5 %

Temperature (2 channels, 1 probe included)

Measurement/alarm range: 0~50°C
Resolution: 0.1°C
Accuracy: ±0.1°C (without probe)
Channel: 2

Printer (Optional)

Printing speed: 25, 50 mm/s

Power Supply

Power outlet: 100~240 V AC, 50/60 Hz
Rechargeable lithium battery: 14.8 V
Dimensions L:32 x D:15 x H:26.5 cm
Weight 5 kg
