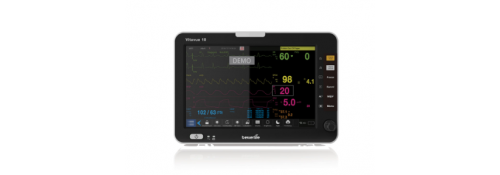

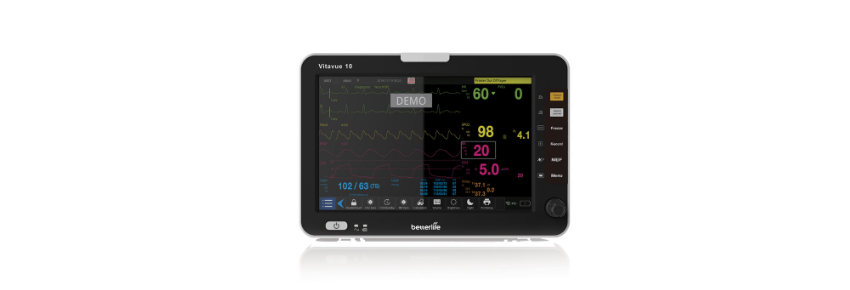

Multiparameter patient monitor with optional printer – 10" display

Multiparameter Patient Monitor with Optional Printer – 10″ Touch Screen Display

Multiparameter monitor with high-resolution display, sturdy and compact structure, equipped with a convenient handle for easy transport. ECG display 3-5 channels, RESP, SpO2, NIBP, PR, 2-TEMP. Arrhythmia analysis and ST segment monitoring. Pacemaker detection, defibrillation, and protection from electrosurgical interference. 168 hours of data storage and 4,000 NIBP measurements. 2 USB ports and Ethernet port. Optional built-in printer.

Included Accessories

– Cod. LTR382 1 ECG cable with 5 clip leads protected against discharges (not illustrated)
– 1 kit of disposable ECG electrodes for adults (not illustrated)
– Cod. LTR384 Reusable adult finger SpO2 sensor (not illustrated)
– Cod. LTR387 Reusable adult NIBP cuff (not illustrated)
– NIBP tube (not illustrated)
– Cod.LTR385 Reusable skin temperature probe (not illustrated)
– Power supply (EUR standard) (not illustrated)
– Ground cable (not illustrated)
– Rechargeable lithium battery (2600 mAh) (not illustrated)

Technical Specifications

Display

LCD TFT: 10” touch screen
Resolution: 1280×800
Displayed waveforms: Up to 7

ECG

Leads: 5 leads and 3 selectable leads
Display sensitivity: Auto x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Scan speed: 6.25, 12.5, 25, 50 mm/s
Heart rate range (HR): 20~300 bpm
Resolution: 1 bpm
Accuracy: ±2 bpm or 2%
CMRR: Diagnostic mode > 95 dB; Monitoring mode > 105 dB; Surgical mode > 105 dB
ST segment monitoring: Measurement range: -2.0 mV ~ 2.0 mV; Alarm range: -2.0 mV ~ 2.0 mV

RESP

Method: Trans-thoracic impedance
Passband: 0.1 Hz ~ 3 Hz
RR measurement range: Adults 0~120 rpm; Pediatric/Neonatal 0~150 rpm
Accuracy: 6-150 rpm: ±2 rpm or 2% 0-6 rpm: not specified
Apnea alarm threshold: 10, 15, 20, 25, 30, 35, 40 s

SpO2

Measurement and alarm range: 0~100%
Resolution: ≤ 1%
Accuracy: ±2% (70~100%, Adults, Pediatric) ±3% (70~100%, Neonatal)
Perfusion index range: 0.1-20%
PI resolution: 0.1-9.99%: 0.01% 10-20%: 0.1%
Pulse measurement: 25~240 bpm
Resolution: 1 bpm

NIBP

Method: Oscillometric
Operation: Manual/Automatic/Continuous
AUTOMATIC measurement interval: Adjustable (2.5-120 min)
Measurement unit: mmHg/kPa
Measurement types: Systolic, Diastolic, Mean
Resolution: 1 mmHg
Accuracy Maximum error of mean ± 5 mmHg
Maximum standard deviation: 8 mmHg
Pulse measurement range from NIBP: 20~300 bpm
Resolution: 1 bpm

Temperature (2 channels, 1 probe included)

Measurement/alarm range: 15~50°C
Resolution: 0.1°C
Accuracy: ±0.2°C (including probe error)

PRINTER (OPTIONAL)

Thermal Paper: 48 mm
Print speed: 12, 25, 50 mm/s
Number of tracks 3

Power Supply

Power input: 100~240 V AC, 1.4 A, 50/60 Hz
Rechargeable lithium battery: 2,600 mAh

Dimensions

L:27.8 x D:12 x H:18.9 cm
Weight 3.5 kg
