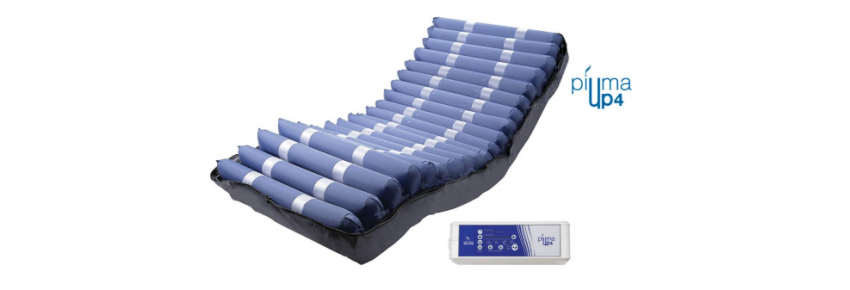

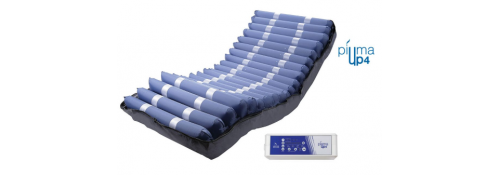

Alternating Pressure Anti-decubitus Kit in TPU 20.3 cm - PIUMA UP4

Alternating Pressure Relief Kit Piuma UP4 – Nylon+TPU Mattress with Adjustable Digital Compressor – Advanced Solution for the Prevention of Pressure Ulcers up to Stage IV

The Alternating Pressure Relief Kit Piuma UP4 is a highly innovative and safe solution for the prevention of pressure ulcers, specifically designed to provide support and comfort to patients confined to bed for long periods. Thanks to the combination of a high-quality mattress and an advanced digital compressor, this kit is indicated to prevent the risk of pressure ulcers, even in its most severe forms, up to Stage IV. With a robust structure and high-performance features, the cyclic alternating airflow system optimizes pressure distribution and significantly reduces the risk of skin injuries.

Main Features of the Piuma UP4 Mattress

The alternating pressure mattress consists of 20 interchangeable elements made of Nylon + TPU material, ensuring high resistance, waterproofing, and good breathability. The overall height of the mattress is 20.3 cm, with a design engineered to fit perfectly on the bed without the need for an additional mattress. Its innovative Cell-on-Cell technology allows the section of elements to be divided into two individual modules, ensuring that the lower part remains constantly inflated, thus preventing the "bottom-out" phenomenon and ensuring continuous safety in case of power interruption.

Mattress Functionality

The first 4 elements of the mattress are in static mode and serve as a head cushion, providing stable and comfortable support for the patient.

The remaining sections are divided into 2 alternating sections with 2-way operation, optimizing pressure distribution and reducing the risk of pressure ulcer formation.

The padded cover made of Nylon/PU is biocompatible, waterproof, and breathable, and has been tested according to European regulations for fire reaction. Additionally, it features a zipper on all four sides, allowing for easy removal and cleaning.

The cover is designed to be durable and easy to maintain, ensuring hygiene and longevity over time.

Fixing and Safety System

The mattress is secured to the bed using the provided fixing straps, ensuring a stable position during use. There are also cable eyelets for optimal cable management, ensuring greater safety and order in the care environment.

Compressor Functionality

The digital compressor of the Piuma UP4 kit is equipped with pressure and cycle duration adjustment. The compressor manages the alternating cycle of the mattress elements, promoting the prevention of pressure ulcers through the alternation of pressure points. Additionally, the cycle duration can be adjusted between 10, 15, 20, or 25 minutes for complete customization based on the patient's needs. The visual and audible alarm system alerts in real-time to any low-pressure situations, while the interchangeable air filter ensures optimal compressor operation.

One of the most useful functions is the static mode, which allows the alternating system to be locked and transforms the mattress into a regular static support, ideal for moments when the patient requires a more stable position without alternating movement.

Technical Specifications of the Compressor (LAR712)

Dimensions: L: 300 x W: 135 x H: 110 mm
Power Supply: 220V / 50 Hz
Output Pressure: 50~120mmHg
Power Cable: 5 m
Air Output: 8/9LPM
Adjustable Cycle Time: 10-15-20-25 minutes
Fuse: T1A 250V
Noise Level: 20-25 dB
Low Pressure Alarm: visual and audible

Technical Specifications of the Mattress (LAR404)

Operating Dimensions: L: 2000 x W: 860 x H: 210 mm
Material: Nylon + TPU
Height of Inflated Element: 20.3 cm

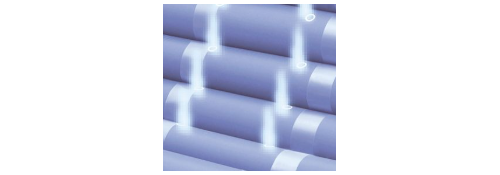

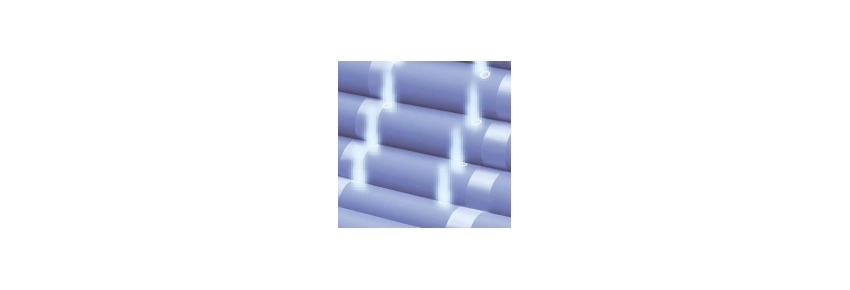

Number of Elements: 20 (of which 8 micro-perforated)

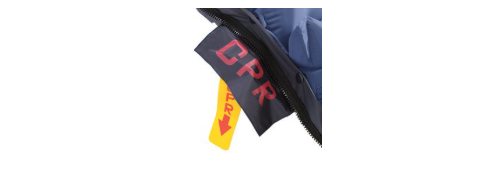

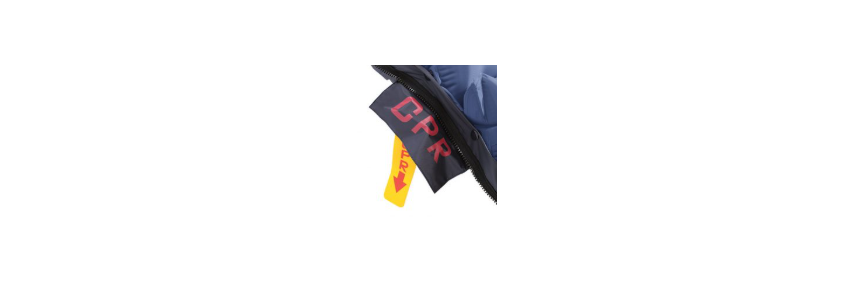

CPR Valve: Deflation time approximately 15 sec.
Maximum Load: 200 kg
