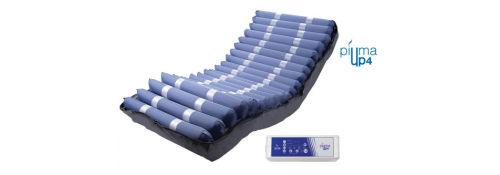

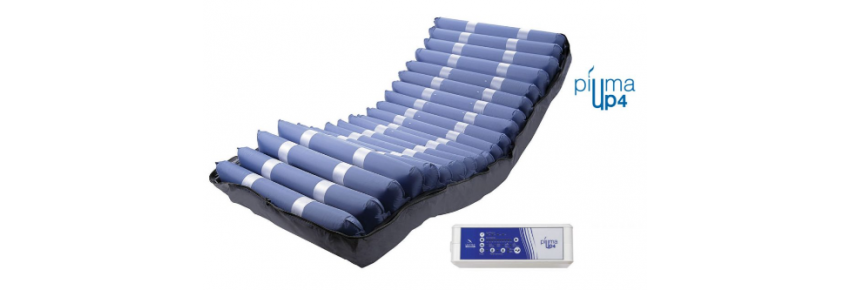

Alternating Pressure Relief Mattress Kit in PVC 20.3 cm - PIUMA UP4

Alternating Pressure Relief Kit Piuma UP4 – Nylon+TPU Mattress – H 20.3 cm with 20 Interchangeable Elements and Regulator Compressor

The Alternating Pressure Relief Kit Piuma UP4 is a highly effective solution for the prevention of pressure ulcers up to stage IV. This advanced system is designed to provide secure and comfortable support for patients at high risk of developing pressure ulcers. Ideal for use in hospitals, nursing homes, or home environments, the system consists of an alternating mattress and a digital compressor that work in synergy to offer maximum comfort and safety.

Features of the Piuma UP4 Pressure Relief Kit

The Piuma UP4 mattress is designed with 20 interchangeable elements and a height of 20.3 cm, making it particularly suitable for patients at risk of pressure ulcers up to stage IV. Thanks to its unique structure and innovative technologies, the mattress offers excellent protection and optimal pressure management.

Structure and Operation of the Mattress

The first four elements operate statically, ideal for the head and ensuring lasting comfort during rest. The remaining part of the mattress is divided into 2 alternating sections with 2-way operation, promoting adequate blood circulation and preventing the risk of pressure ulcers.

High-Quality Materials: The mattress is made of Nylon+TPU, a waterproof, breathable, and biocompatible material that complies with European fire safety regulations.

The padded cover is removable, with zippers on all sides, making it easy to remove and clean.

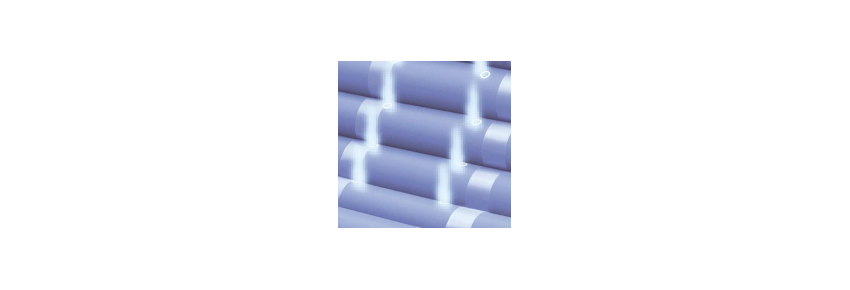

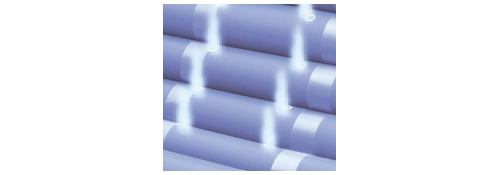

The CELL-ON-CELL technique divides the mattress into individual modules: the lower module remains constantly inflated to avoid the risk of sinking and ensure safety in case of power interruption.

STATIC Function for Greater Versatility

The mattress includes the STATIC function, which allows you to lock the alternating system and use the mattress as a traditional static support, providing maximum comfort when the patient does not require the alternating functionality.

Easy Attachment and Transport

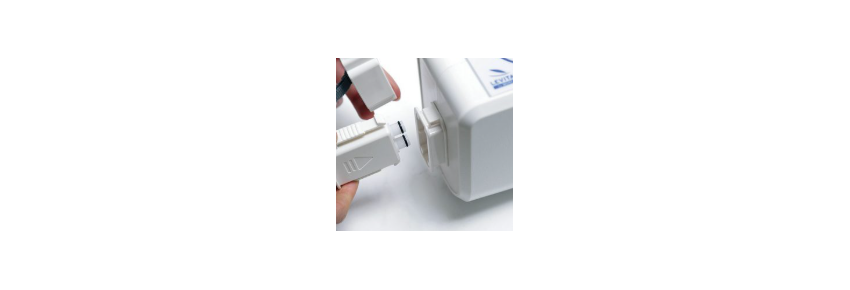

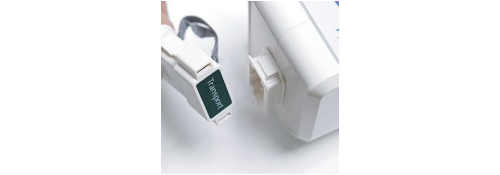

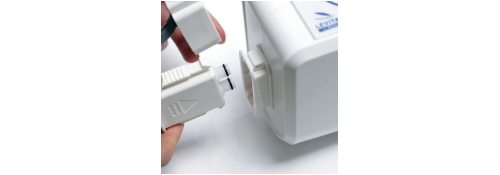

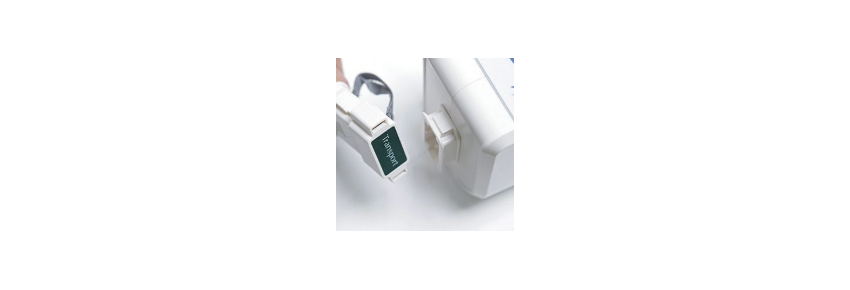

The mattress can be easily attached to the bed using the included straps, and thanks to the cable pass-through eyelets, it allows for safe cable organization. The quick connection between the mattress and the compressor, via quick connectors, makes the system practical and easily transportable during patient transfers.

Digital Compressor with Manual Pressure Adjustment

The LAR711 compressor allows for manual pressure adjustment, enabling the system to be tailored to the patient's needs. It is equipped with a visual and audible alarm for low pressure, as well as an interchangeable filter for optimal air management.

Technical Specifications of the Compressor (LAR711):

Dimensions: L: 300 mm x W: 135 mm x H: 110 mm
Power Supply: 220V / 50 Hz
Delivered Pressure: 55~120 mmHg
Power Cable: 5 m
Air Output: 7.5/8.5 LPM
Cycle Time: 12 minutes
Fuse: T1A 250V
Noise Level: 30-35 dB

Technical Specifications of the Mattress (LAR404):

Size in Function: L: 2000 mm x W: 860 mm x H: 210 mm
Material: Nylon+TPU
Height of Inflated Element: 20.3 cm
Number of Elements: 20 (of which 8 micro-perforated)

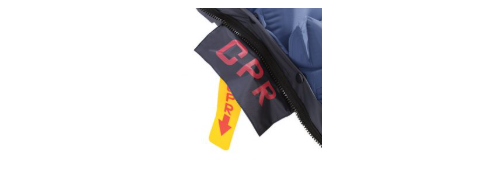

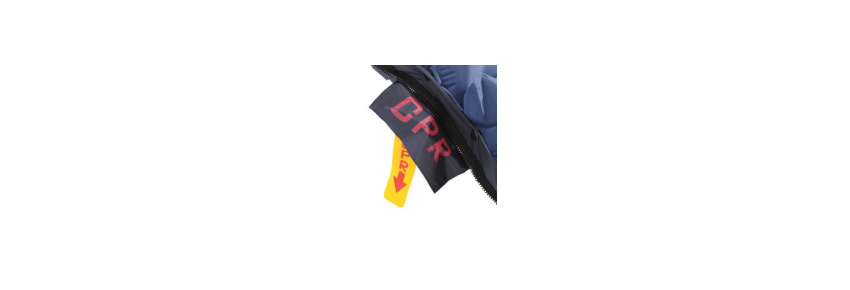

CPR Valve: Deflation time approximately 15 sec.
Maximum Load: 200 kg
