Alternating Pressure Anti-decubitus Kit in TPU 20.3 cm - PIUMA UP3

Alternating Pressure Anti-Decubitus Kit Piuma UP3 – Nylon+TPU Mattress – H 20.3 cm with 20 Interchangeable Elements and Regulator Compressor

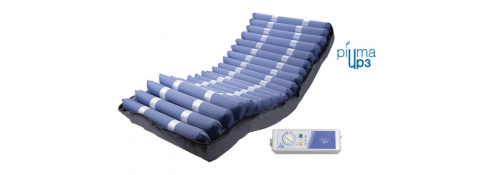

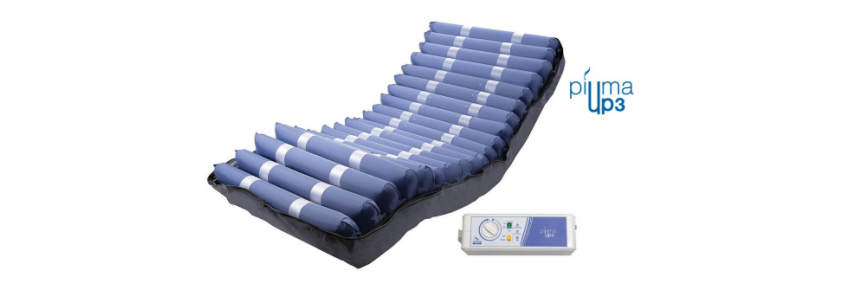

The Alternating Pressure Anti-Decubitus Kit Piuma UP3 is an advanced solution for the prevention of pressure ulcers up to stage IV. With an alternating pressure mattress and a digital compressor, the system provides effective support for patients at high risk of developing pressure ulcers. This kit is ideal for hospitals, clinics, and home care, thanks to its ability to adapt to various comfort and safety needs.

Main Features

Mattress with 20 Interchangeable Elements: With a height of 20.3 cm, the mattress is equipped with 20 elements that ensure continuous support for the patient, reducing pressure in the most vulnerable areas.

Head Cushion Function: The first four elements operate in static mode, providing support for the head and ensuring optimal comfort for the patient.

2-Way Alternating Cycle: The remaining part of the mattress is divided into 2 alternating sections, promoting proper blood circulation and preventing the risk of pressure ulcers.

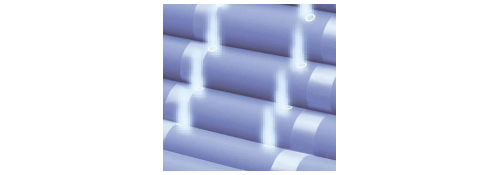

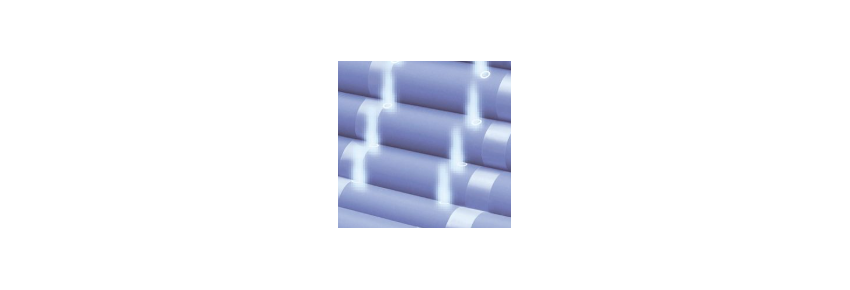

CELL-ON-CELL Technology: Each element of the mattress is made using CELL-ON-CELL technology, which divides the mattress into individual modules, keeping a lower layer constantly inflated to avoid the BOTTOM-OUT effect, even in case of power interruption.

Padded and Removable Cover: The mattress features a padded cover made of biocompatible Nylon/PU, waterproof and breathable, compliant with European fire reaction regulations. The zipper on all sides facilitates removal and cleaning.

Secure Fixing: The mattress is secured to the bed with provided straps and has cable pass-through eyelets, ensuring safe and practical use.

STATIC Function: The alternating system can be locked with the STATIC function, making the mattress a traditional support if needed.

Compressor with Manual Pressure Adjustment

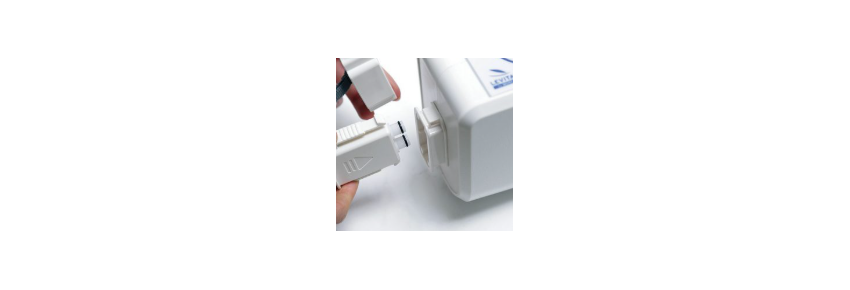

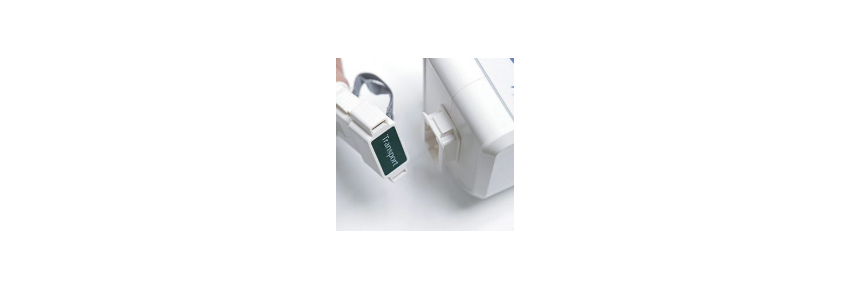

The LAR711 compressor provides precise control over pressure with manual adjustment and is equipped with visual and audible alarms to alert in case of low pressure. Additionally, the compressor includes an interchangeable filter to maintain optimal airflow.

Compressor Specifications (LAR711):

Dimensions: L: 300 mm x D: 135 mm x H: 110 mm
Power Supply: 220V / 50 Hz
Delivered Pressure: 55-120 mmHg
Power Cable: 5 m
Air Output: 7.5/8.5 LPM
Cycle Time: 12 min
Fuse: T1A 250V
Noise Level: 30-35 dB

Technical Features of the Mattress (LAR404):

Dimensions in Use: L: 2000 mm x D: 860 mm x H: 210 mm
Material: Nylon+TPU
Height of Inflated Element: 20.3 cm
Number of Elements: 20 (of which 8 micro-perforated)

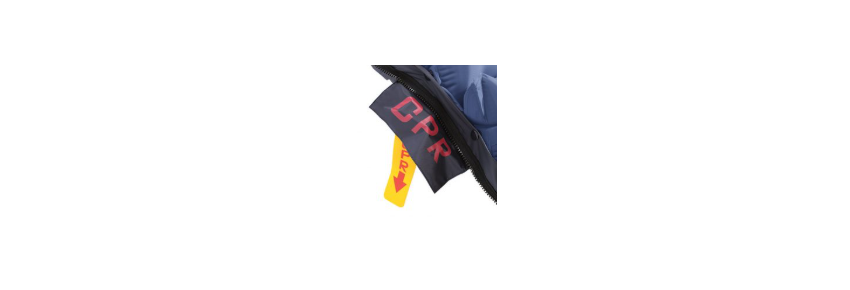

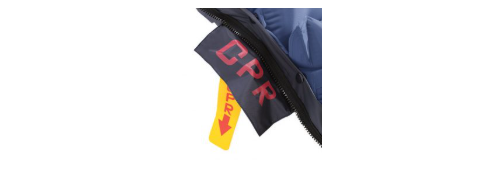

CPR Valve: Deflation time approximately 15 sec.
Load Capacity: 200 kg
