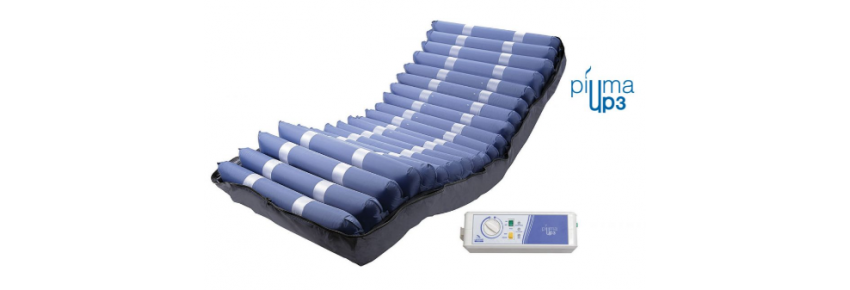

Anti-decubitus alternating pressure kit in PVC 20.3 cm - PIUMA UP3

Alternating Pressure Anti-Decubitus Kit Piuma UP3 – Nylon + PVC Mattress with Adjustable Compressor

The Alternating Pressure Anti-Decubitus Kit Piuma UP3 is designed for the prevention of pressure ulcers up to stage IV, and is an advanced solution to ensure maximum support and comfort for patients confined to long hospital stays or with reduced mobility. This system is ideal for use in hospitals, clinics, nursing homes, and home care settings.

Main Features of the Piuma UP3 Anti-Decubitus Kit

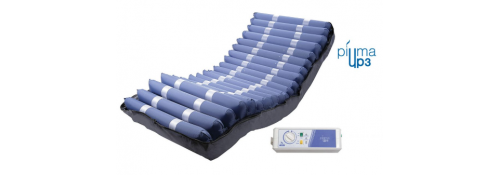

The Piuma UP3 mattress consists of 20 interchangeable inflatable elements, each with a height of 20.3 cm. This alternating pressure system is designed to provide exceptional support and minimize pressure on sensitive areas of the body, effectively preventing and treating pressure ulcers.

Mattress Structure and Operation

The first 4 elements operate statically, designed with a head cushion function, ensuring maximum comfort for the patient during rest.

The remaining 16 sections are divided into 2 alternating 2-way sections, which continuously change the pressure in the contact areas with the body, improving blood circulation and reducing the risk of pressure ulcers.

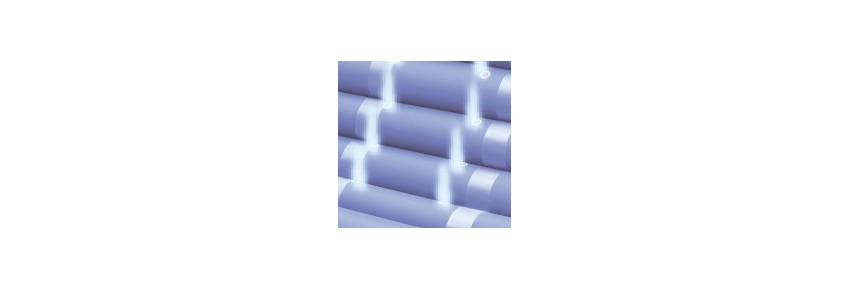

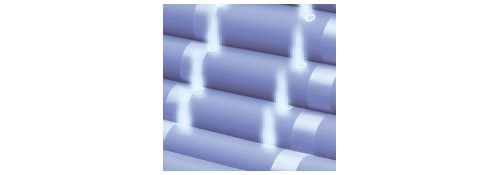

The mattress is constructed using the CELL-ON-CELL technique, which divides each element into two individual modules. The lower module remains constantly inflated, avoiding the risk of Bottom-Out effect and ensuring safety in case of power interruption.

High-Quality Materials

The mattress cover is made of Nylon + PVC, a durable, waterproof, breathable, biocompatible material that complies with European fire reaction regulations. The removable cover with zippers on all four sides allows for easy removal and cleaning, ensuring optimal hygienic maintenance.

STATIC Function: Traditional Mattress When Needed

The system is equipped with a STATIC function, which locks the alternating cycle and transforms the mattress into a normal traditional mattress. This mode is useful when stable and continuous support is needed, without pressure alteration.

Easy Installation and Securing

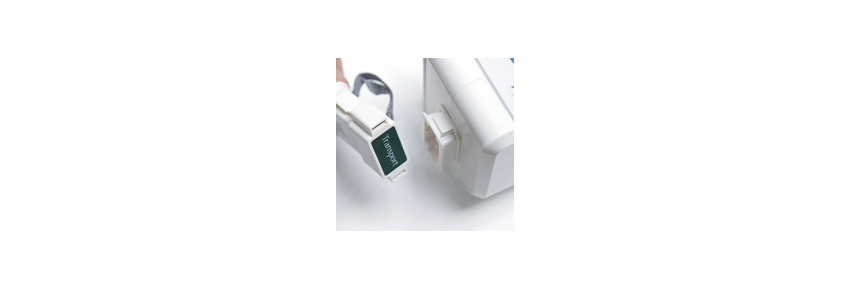

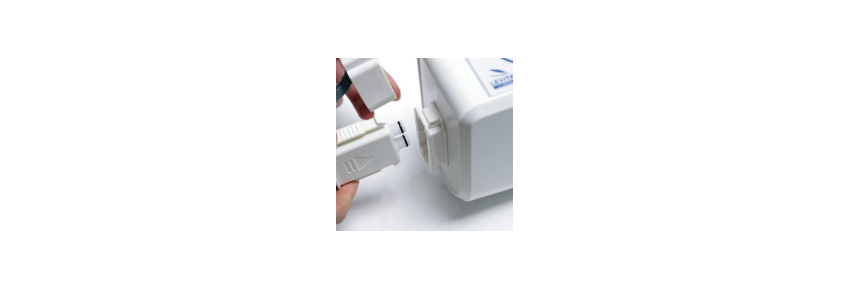

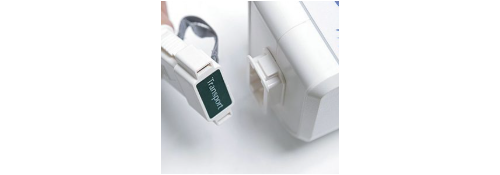

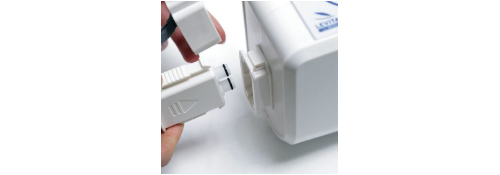

The mattress can be easily secured to the bed using the included straps and features cable eyelets for safe cable management. Additionally, the connection between the mattress and compressor is made via quick connectors with closures, convenient even during patient transport.

LAR711 Compressor with Manual Pressure Adjustment

The LAR711 compressor included in the kit offers the possibility to manually adjust the pressure according to the patient's needs, ensuring personalized support. It is equipped with a visual and audible alarm to alert in case of low pressure, a fundamental function for patient safety.

Technical Specifications of the Compressor (LAR711):

Dimensions: L: 300 mm x W: 135 mm x H: 110 mm
Power Supply: 220V / 50 Hz
Delivered Pressure: 55~120 mmHg
Power Cord: 5 m
Air Output: 7.5/8.5 LPM
Cycle Time: 12 minutes
Fuse: T1A 250V
Noise Level: 30-35 dB

Technical Specifications of the Mattress (LAR403)

Size in Use: L: 2000 mm x W: 860 mm x H: 210 mm
Material: Nylon + PVC
Height of Inflated Element: 20.3 cm
Number of Elements: 20 (of which 8 micro-perforated)

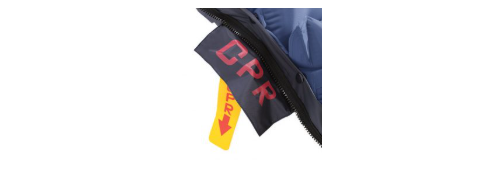

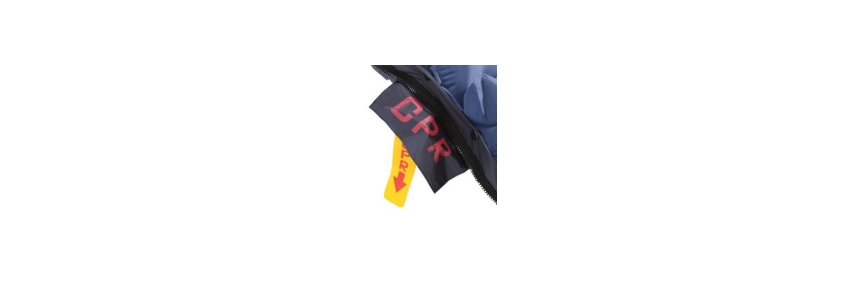

CPR Valve: Deflation time approximately 15 seconds
Maximum Load: 200 kg

Advantages of the Alternating Pressure Anti-Decubitus Kit Piuma UP3

Effective Prevention of Pressure Ulcers: The alternating pressure system continuously reduces pressure, promoting blood circulation and preventing the formation of pressure ulcers.
Optimal Comfort and Safety: The 4 static elements with head cushion function and CELL-ON-CELL technique ensure gentle support, avoiding the risk of bottoming out and improving patient safety.
High-Quality Materials: The Nylon/PVC cover is biocompatible, breathable, and complies with fire safety regulations, ensuring maximum comfort and protection.
Easy Maintenance: The removable cover with zippers on all sides allows for easy and thorough cleaning, keeping the mattress hygienic and safe.
STATIC Function: Allows the mattress to be used as a traditional static mattress when necessary, increasing the versatility of the system.
Low Pressure Alarm: The visual and audible alarm ensures patient safety, alerting in case of low pressure.
Easy Installation and Transport: The quick connection between the mattress and compressor and the use of securing straps facilitate safe installation and transport of the patient.
