Alternating Pressure Relief Mattress Kit in PVC 12.7 cm - PIUMA UP3

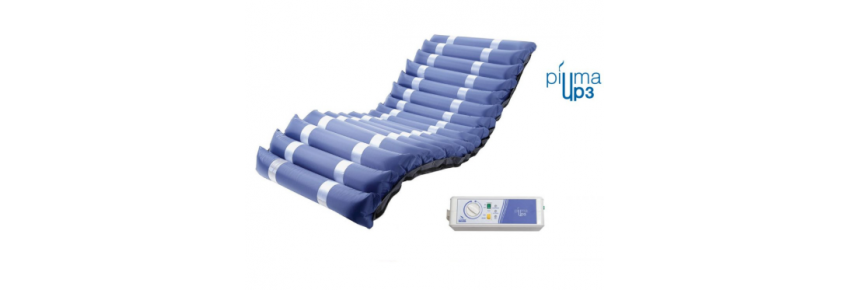

Alternating Pressure Anti-Decubitus Kit Piuma UP3 – Nylon + PVC Mattress with Adjustable Compressor

The Alternating Pressure Anti-Decubitus Kit Piuma UP3 is an advanced solution for the prevention of pressure ulcers up to stage III. Thanks to its innovative design and high-quality materials, this mattress is ideal for patients confined to long hospital stays or with reduced mobility. It is particularly suitable for use in hospitals, clinics, nursing homes, and home care, where it is essential to ensure maximum comfort and protection against pressure ulcers.

Main Features of the Piuma UP3 Anti-Decubitus Kit

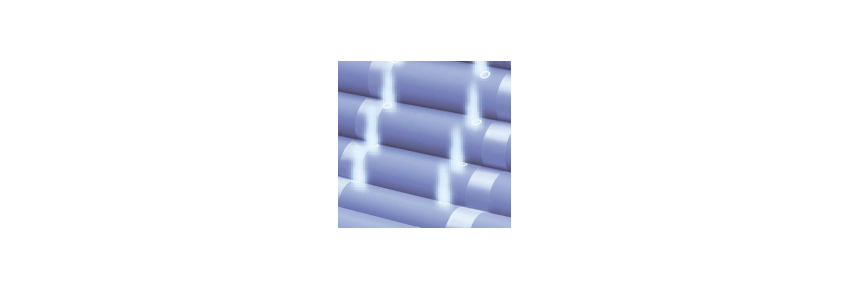

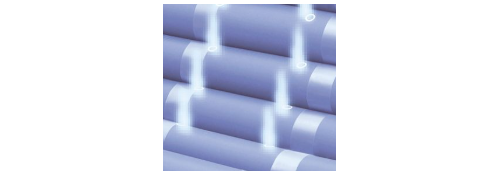

The Piuma UP3 mattress is equipped with 17 interchangeable inflatable elements, designed to adapt to the patient's needs and provide optimal support. Each element has a height of 13 cm, while the Nylon + PVC cover ensures exceptional durability and easy maintenance. The mattress is designed to offer maximum comfort, reducing the risk of pressure ulcer formation thanks to its alternating inflation and deflation cycle.

Mattress Operation: Effective Prevention and Treatment

The first 3 elements operate statically and have a head cushion function, providing soft and gentle support for the cervical area and head. This feature helps reduce pressure on the patient's head, promoting rest without compromising safety.

The remaining 14 sections operate on a two-way alternating cycle, a mechanism that continuously changes the contact points between the patient's body and the mattress, reducing pressure in areas at risk of developing pressure ulcers, such as the hips and heels.

High-Quality Materials for Comfort and Safety

The biocompatible Nylon/PU cover, in addition to being waterproof and breathable, complies with European fire reaction regulations, ensuring a safe environment for the patient. The removable cover with zippers on all four sides allows for easy removal and cleaning, ensuring optimal hygienic maintenance.

Static Function: Classic Mattress When Needed

The Piuma UP3 Anti-Decubitus Kit features a STATIC function that locks the alternating system, making the mattress similar to a traditional mattress. This mode is useful when static support is needed or when the patient requires rest without alternating pressure.

Easy Fixing and Maintenance

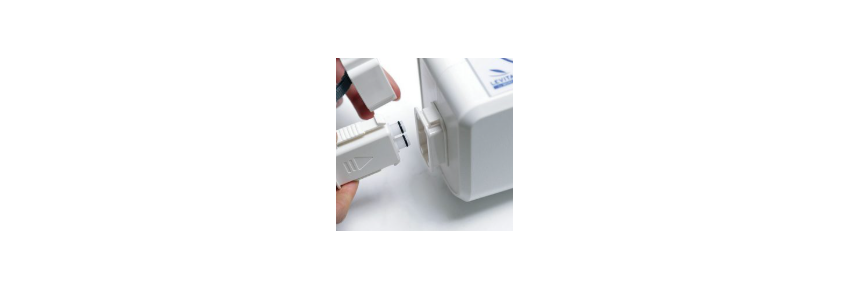

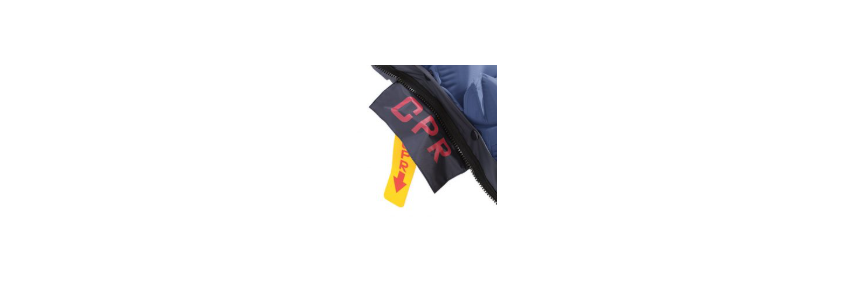

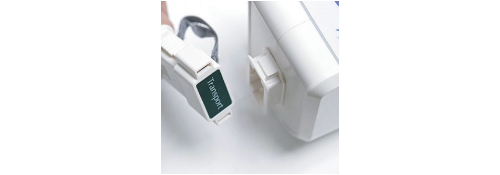

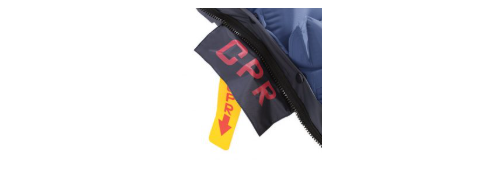

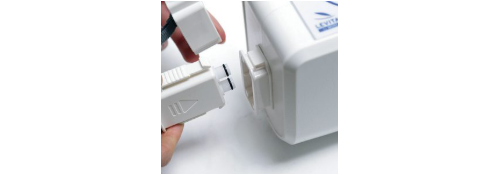

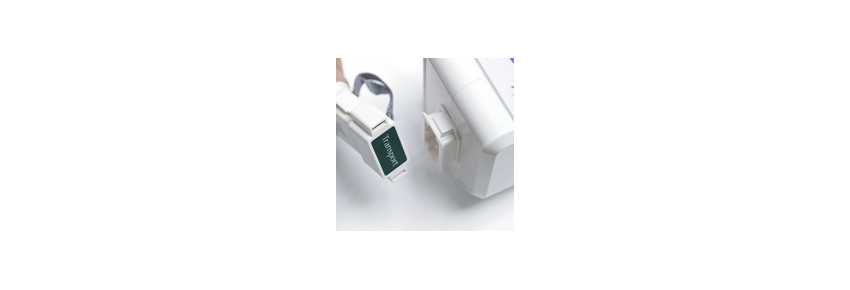

The mattress is equipped with fastening straps that ensure a stable connection to the bed, while the cable pass-through eyelets facilitate the organization and safety of the compressor power supply system. The integrated CPR valve allows for rapid deflation in about 15 seconds, a crucial feature in case of emergency.

Adjustable Compressor with Low Pressure Alarm

The included LAR710 compressor offers manual pressure adjustment, allowing customization of the support level based on the patient's weight and needs. Additionally, it features a visual and audible alarm that activates in case of low pressure, ensuring continuous patient safety.

LAR710 Compressor Features:

Power Supply: 220V / 50 Hz
Delivered Pressure: 55-120 mmHg
Power Cable: 5 m
Air Output: 7.5/8.5 LPM
Complete Cycle Time: 12 minutes
Fuse: T1A 250V
Noise Level: 30-35 dB
Dimensions: L: 300 mm x W: 135 mm x H: 110 mm

Advantages of the Alternating Pressure Anti-Decubitus Kit Piuma UP3

Effective Prevention of Pressure Ulcers: The alternating cycle system continuously reduces pressure, improving blood circulation and preventing ulcer formation.
Comfortable and Safe Support: The head cushion function and the alternating pressure system ensure optimal rest and protect at-risk areas.
Easy Maintenance: The biocompatible Nylon/PU cover is removable, easily washable, and durable, reducing contamination risks and maintaining hygiene.
STATIC Function: Allows the mattress to be transformed into a traditional static support, useful in various care situations.
Low Pressure Alarm: The visual and audible alarm ensures that pressure remains adequate for patient safety.
Ease of Installation and Fixing: The connection system with fastening straps and cable pass-through eyelets allows for easy assembly and safe operation.
CPR Valve for Emergencies: Rapid deflation allows for immediate intervention in case of medical emergencies.

Technical Specifications of the Compressor (LAR710)

Dimensions: L: 300 mm x W: 135 mm x H: 110 mm
Power Supply: 220V / 50 Hz
Delivered Pressure: 55~120 mmHg
Power Cable: 5 m
Air Output: 7.5/8.5 LPM
Cycle Time: 12 minutes
Fuse: T1A 250V
Noise Level: 30-35 dB

Technical Specifications of the Mattress (LAR401)

Functional Dimensions: L: 1960 mm x W: 860 mm x H: 130 mm
Material: Nylon + PVC
Inflated Element Height: 13 cm
Number of Elements: 17 (of which 8 micro-perforated)
CPR Valve: Deflation time approximately 15 sec.
Maximum Load: 160 kg
