Alternating Pressure Relief Kit Three-Way H 20.3 cm - DOMUS 3

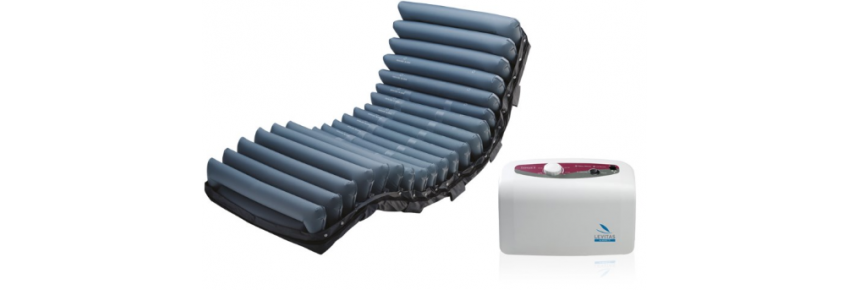

DOMUS 3 Alternating Pressure Relief Kit – Nylon® + Breathable/Waterproof TPU Mattress – H 20.3 cm, 20 Interchangeable Elements and Regulator Compressor

The DOMUS 3 Pressure Relief Kit is a highly effective solution for the prevention and treatment of pressure ulcers up to stage three. This innovative alternating system is designed to provide dynamic and personalized support, reducing pressure on vulnerable areas of the body and promoting proper blood circulation. Ideal for use in hospitals, clinics, and home care, the DOMUS 3 Kit ensures comfort, safety, and practicality.

Features of the DOMUS 3 Mattress

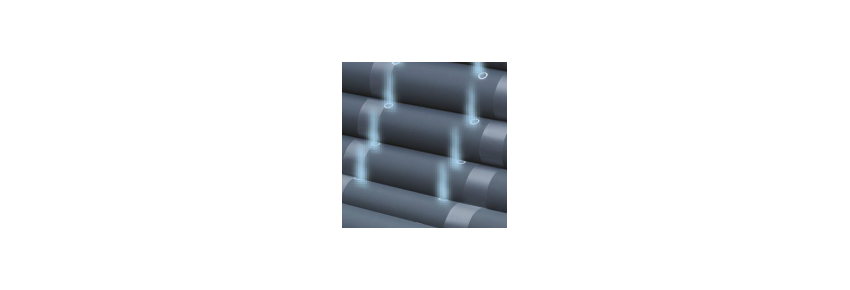

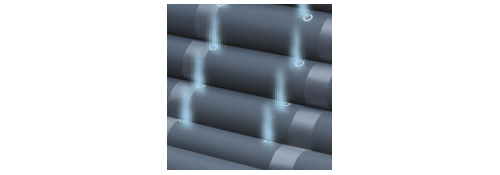

The DOMUS 3 mattress is made from high-quality materials, including Nylon® and breathable/waterproof TPU, ensuring a durable, easy-to-clean, and particularly hygienic surface. The mattress consists of 20 interchangeable elements, each designed to conform to the shape of the body, evenly distributing pressure. The height of 20.3 cm of the elements provides optimal support for bedridden patients, enhancing comfort and protection.

2 or 3 Way Alternating Function

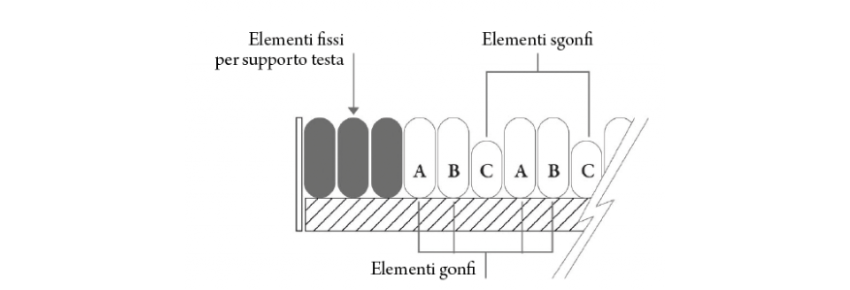

The alternating cycle system is divided into two or three ways and ensures proper alternating support to various areas of the body, reducing the risk of pressure ulcers and promoting proper blood circulation. The first three elements of the mattress are designed for static operation, acting as a pillow for the head, while the remaining part of the mattress is divided into alternating cycle sections.

STATIC Function

The DOMUS 3 Kit features the STATIC function, which allows the alternating cycle to be locked, transforming the mattress into a rigid support similar to a regular mattress. This function is ideal when the patient requires more stable support or in specific situations, such as patient transport.

Pressure Regulation Compressor with Low Pressure Alarm

The compressor included in the kit is equipped with a pressure regulation system, allowing customization of ventilation intensity based on the patient's needs. The compressor is also fitted with a visual and audible alarm to signal any pressure variations, ensuring that the system operates correctly at all times.

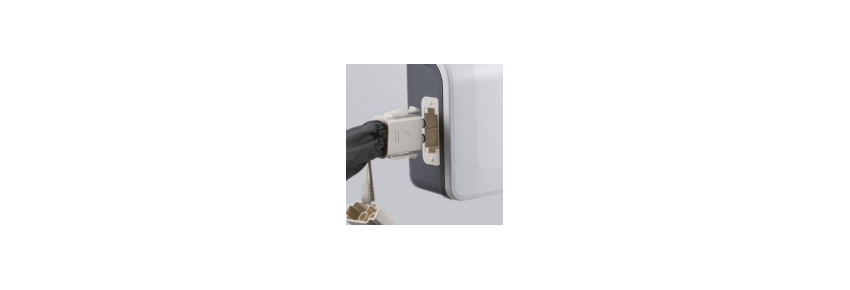

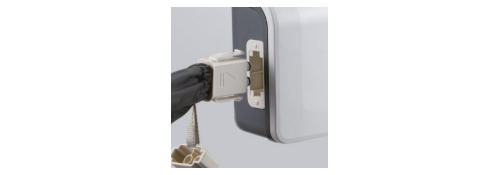

The interchangeable air filter ensures easy cleaning and lasting efficiency, while the connection between the mattress and compressor is made via quick connectors with closure, making use and transport even safer and more practical.

Biocompatible Nylon/PU Padded Cover

The padded cover of the mattress is made from biocompatible materials, with a waterproof and breathable finish that complies with European fire reaction regulations. The cover is secured to the mattress with a zipper on all four sides, facilitating removal and cleaning of the covering for proper hygiene.

Ease of Attachment and Transport

The mattress is easily secured to the bed with the included fastening straps, and the cable pass-through eyelets offer greater practicality in cable management. Additionally, the quick connection system between the mattress and compressor allows for easy transport of the system, ensuring patient safety even during transfer.

Technical Specifications of the Compressor (LAR270-2 and LAR270-3)

Dimensions: L: 28 cm x W: 12.6 cm x H: 18.5 cm
Weight: 2.2 kg
Power Supply: 220-240V / 50 Hz
Delivered Pressure: 30~80 mmHg
Power Cord: 4.9 m
Air Output: > 8 l/min
Cycle Time: 9.6 min
Fuse: T1AL 250V
Noise Level: ≤ 30 dB

Technical Specifications of the Mattress (LAR172 and LAR174)

Operating Dimensions: L: 200 cm x W: 90 cm x H: 20.3 cm
Weight: 6.9 kg
Material: Nylon® + Breathable/Waterproof TPU
Height of Inflated Elements: 20.3 cm
Number of Elements: 20 (of which 9 micro-perforated)

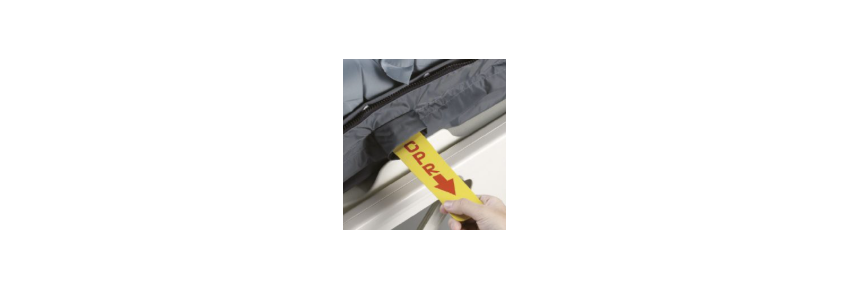

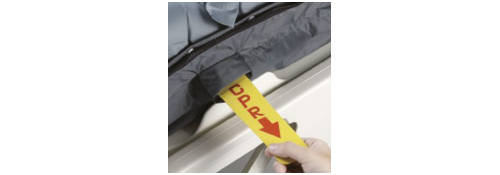

CPR Valve: Deflation time approximately 50 sec.
Maximum Load: 200 kg

Reference Codes

Cod. LAR172: Air mattress with 20 interchangeable elements, complete with cover
Cod. LAR270-2: DOMUS 3 compressor with pressure regulation, 2-way operation
