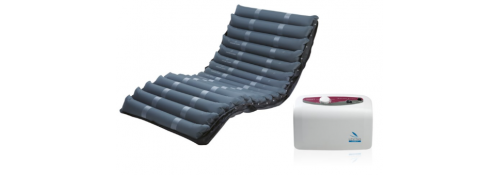

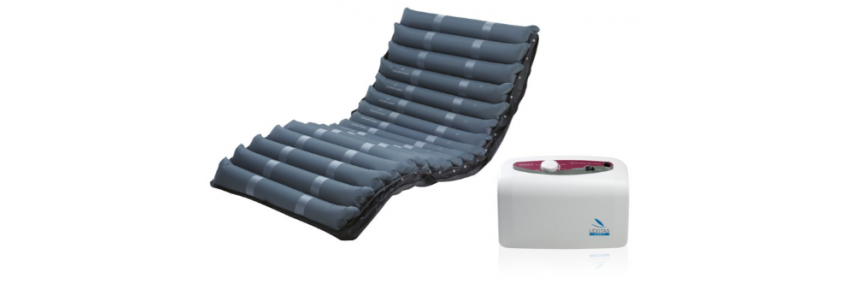

Alternating Pressure Anti-decubitus Kit Three-way H 13 - DOMUS 3

DOMUS 3 Alternating Pressure Relief Kit – Mattress with Interchangeable Elements and Adjustable Compressor for the Prevention and Treatment of Pressure Ulcers

The DOMUS 3 Pressure Relief Kit is an innovative and highly effective solution designed for the prevention and treatment of pressure ulcers up to stage three. Thanks to its advanced structure and high-quality materials, this alternating pressure system is ideal for patients confined to bed for extended periods, helping to reduce the risk of skin injuries due to pressure.

Features of the DOMUS 3 Pressure Relief Mattress

The DOMUS 3 mattress is equipped with 17 interchangeable elements made from a combination of breathable and waterproof Nylon® and TPU. This design ensures that the mattress is not only durable and long-lasting but also breathable and waterproof, enhancing ventilation and keeping the skin dry, preventing moisture buildup that could cause irritation or pressure ulcers.

Operation of the Alternating and Static Pressure System

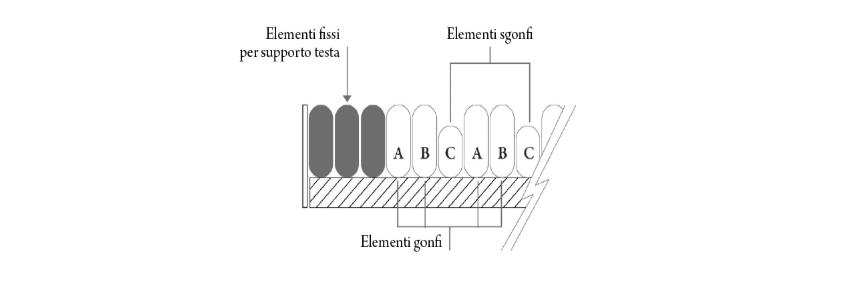

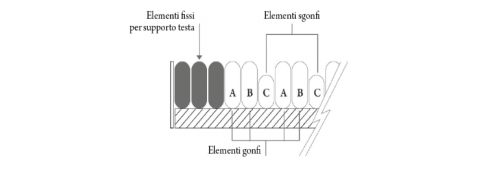

The DOMUS 3 mattress is designed to provide maximum support across all areas of the body, particularly in the most vulnerable areas such as the back, hips, and heels. The first three elements operate in static mode to ensure maximum comfort in the head area, while the remaining part is divided into two sections operating alternately in 2 or 3 ways. This alternating system helps to reduce pressure on specific areas of the body, improving blood circulation and reducing the risk of pressure ulcers.

Additionally, the STATIC function allows the alternating system to be locked, transforming the mattress into a normal stable support, suitable for patients who require a firmer mattress.

Compressor with Pressure Adjustment and Low-Pressure Alarm

The DOMUS 3 compressor is an essential component of the kit, designed to manage the alternating cycle and precisely regulate the pressure. The compressor features a pressure adjustment function, allowing the support to be tailored to the specific needs of the patient. In case of low pressure, the system emits a visual and audible alarm, alerting the user to any malfunctions.

Advanced Features of the Compressor:

Pressure adjustment: for personalized support and optimal pressure.
Visual and audible alarm: for constant monitoring of low pressure and prevention of malfunctions.
Interchangeable air filter: simplifying system maintenance.
STATIC function: which locks the alternating cycle, allowing the mattress to function as a stable support.
Straps: for increased stability of the mattress on the bed and to prevent unwanted movements during treatment.

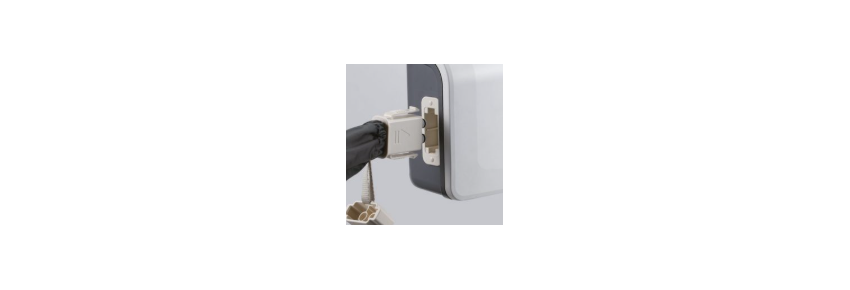

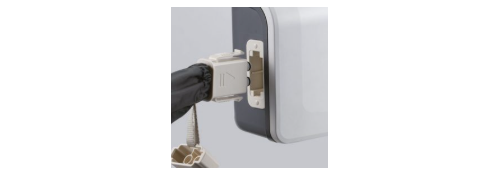

Quick connectors: facilitating the connection and disconnection of the mattress from the compressor, useful for patient transport.

Material and Design

The DOMUS 3 mattress is designed with high-quality materials, including Nylon® and TPU that provide effective protection against moisture, keeping the skin dry and preventing the formation of irritations. The breathable and waterproof Nylon/PU cover, equipped with a zipper on all four sides, makes it easy to remove and clean the mattress, ensuring simple and safe management.

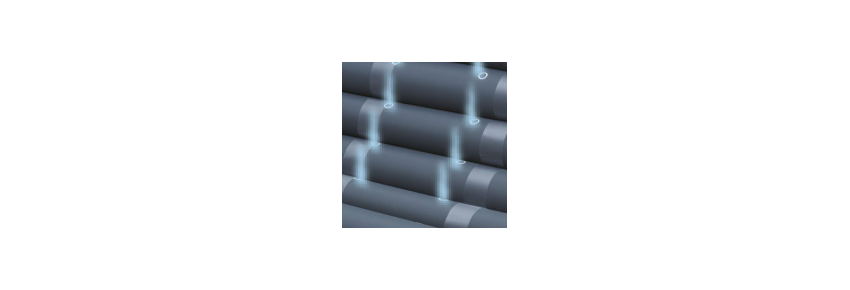

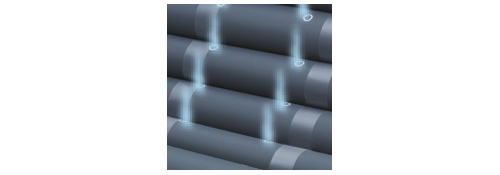

The CELL-ON-CELL technique used for the construction of the inflatable elements divides the mattress into distinct modules, with the lower section remaining always inflated, reducing the risk of BOTTOM-OUT (sinking) and improving patient safety in case of malfunction or power interruption.

Benefits and Advantages of the DOMUS 3 Mattress

Advanced prevention of pressure ulcers: the combination of alternating and static cycles offers maximum support, reducing the risk of skin injuries.
Effective treatment for pressure ulcers up to stage III: the mattress is designed to treat ulcers even in advanced stages.
Optimal comfort: the CELL-ON-CELL technology ensures even pressure distribution, preventing sinking and improving patient comfort.
Easy to maintain: the removable cover with zipper and the interchangeable air filter make cleaning and maintenance of the system simple.
Easy to transport: the quick connection between the mattress and the compressor allows for easy disconnection of the compressor for patient transport.

Technical Specifications of the Compressor (LAR270-3)

Compressor dimensions: L: 28 cm x W: 12.6 cm x H: 18.5 cm
Compressor weight: 2.2 kg
Power supply: 220-240V / 50 Hz
Delivered pressure: 30~80 mmHg
Power cable: 4.9 m
Air output: >8 L/min
Cycle time: 9.6 minutes
Fuse: T1AL 250V
Noise level: ≤ 30 dB

Technical Specifications of the DOMUS 3 Mattress (LAR170 and LAR173)

Mattress dimensions: L: 200 cm x W: 90 cm x H: 13 cm
Mattress weight: 5.2 kg
Material: Nylon® + breathable/waterproof TPU
Height of inflated element: 13 cm
Number of elements: 17 (of which 9 micro-perforated)

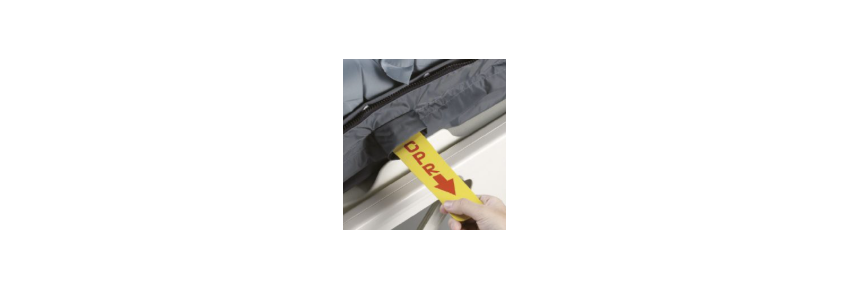

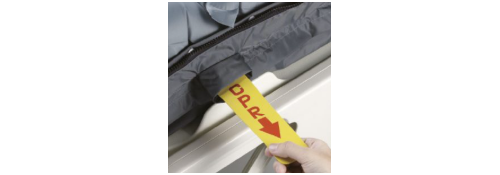

CPR valve: Deflation time approximately 35 seconds
Maximum load: 180 kg
