Alternating Pressure Relief Kit Two-Way H 20.3 cm - DOMUS 3

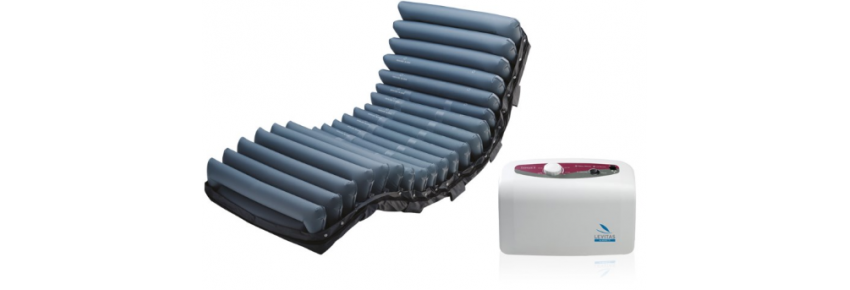

DOMUS 3 Alternating Pressure Relief Kit – Nylon® + Breathable/Waterproof TPU Mattress – H 20.3 cm, 20 Interchangeable Elements and Regulator Compressor

The DOMUS 3 Pressure Relief Kit is the ideal solution for the prevention and treatment of pressure ulcers up to stage three. Designed to ensure maximum comfort and safety for bedridden patients, this alternating pressure system provides effective and personalized support, reducing the risk of skin injuries and improving blood circulation.

Features of the DOMUS 3 Mattress

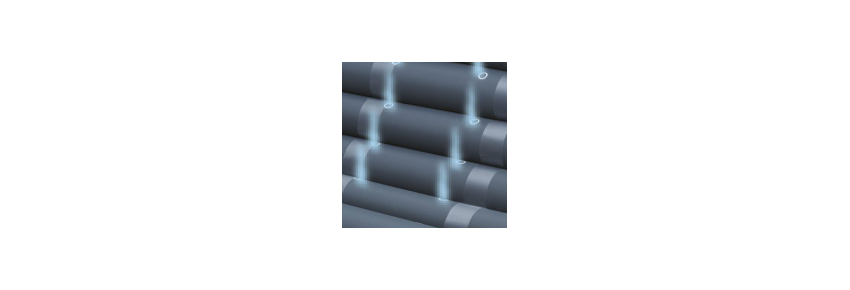

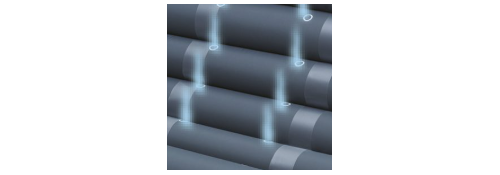

The DOMUS 3 mattress is equipped with 20 interchangeable elements, each designed to provide optimal support and ensure even pressure distribution. With a height of 20.3 cm, the mattress offers adequate protection against the formation of pressure ulcers. The Nylon® + TPU material ensures a breathable and waterproof surface, ideal for keeping the skin dry and reducing the risk of irritation or infections.

2 or 3 Way Alternating Function

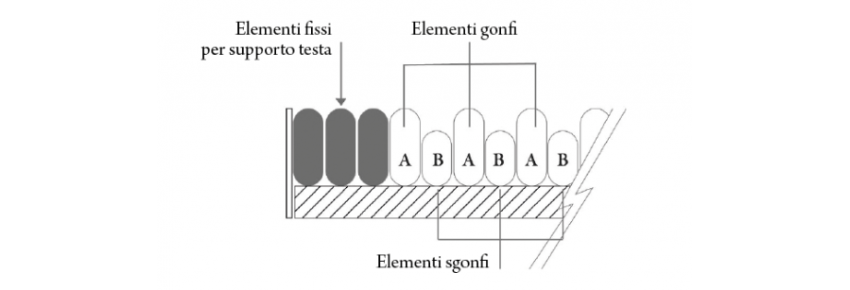

The alternating pressure system is divided into two or three ways, alternating the inflation of the mattress elements. This helps to reduce pressure on critical areas of the body, such as hips, back, and heels, stimulating blood circulation and improving patient well-being. The first three elements operate statically, creating a comfortable surface for the patient's head, serving as a pillow.

STATIC Function for Locking the Alternating Cycle

The mattress features a STATIC function, which allows the alternating system to be locked and transformed into a regular mattress, providing a stable surface, useful during prolonged rest or for patients who require firm support.

Compressor with Pressure Adjustment and Low Pressure Alarm

The compressor included in the kit is equipped with pressure adjustment, to adapt the system to the patient's needs. The compressor also offers a visual and audible alarm to signal any low-pressure situations, thus ensuring maximum safety. The interchangeable air filter simplifies maintenance and ensures lasting efficiency.

Compressor Features

Pressure adjustment: for personalized and precise support.
Visual and audible alarm: to alert of any pressure-related issues.
STATIC function: to lock the alternating cycle and use the mattress as a stable support.

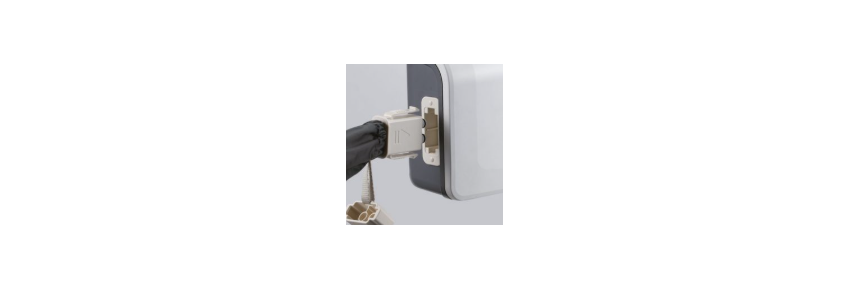

Easy connection: The mattress connects to the compressor via quick connectors with closures, ideal for patient transport.

High-Quality Material and Easy-to-Clean Cover

The padded cover of the mattress is made of biocompatible Nylon/PU, waterproof and breathable, compliant with European fire reaction regulations. The cover features zippers on all sides, facilitating removal and cleaning, ensuring simple and hygienic maintenance.

Ease of Attachment and Transport

The mattress can be easily secured to the bed using the provided fastening straps and cable eyelets. Additionally, the quick connection system between the mattress and compressor allows for safe patient transport, making the DOMUS 3 Pressure Relief Kit ideal for use in healthcare facilities or for home care assistance.

Technical Specifications of the Compressor (LAR270-2 and LAR270-3)

Dimensions: L: 28 cm x W: 12.6 cm x H: 18.5 cm
Weight: 2.2 kg
Power Supply: 220-240V / 50 Hz
Delivered Pressure: 30~80 mmHg
Power Cable: 4.9 m
Air Output: > 8 l/min
Cycle Time: 9.6 min
Fuse: T1AL 250V
Noise Level: ≤ 30 dB

Technical Specifications of the Mattress (LAR172 and LAR174)

Operational Size: L: 200 cm x W: 90 cm x H: 20.3 cm
Weight: 6.9 kg
Material: Nylon® + breathable/waterproof TPU
Height of Inflated Element: 20.3 cm
Number of Elements: 20 (of which 9 micro-perforated)

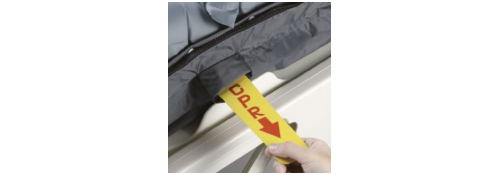

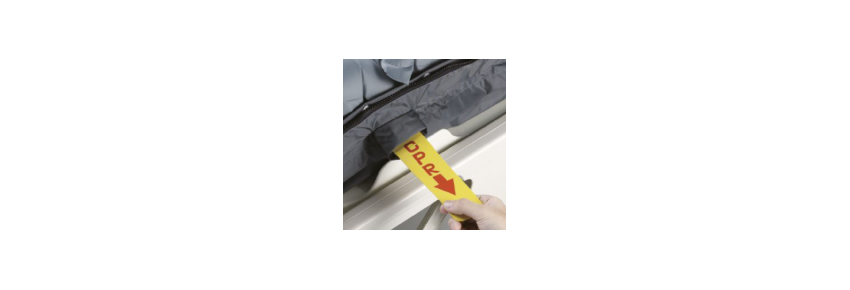

CPR Valve: Deflation time approximately 50 sec.
Maximum Load: 200 kg

Reference Codes

Cod. LAR172: Air mattress with 20 interchangeable elements, complete with cover
Cod. LAR270-2: DOMUS 3 compressor with pressure adjustment, 2-way operation
