Disabled Lift with Pedal - MUEVO UP

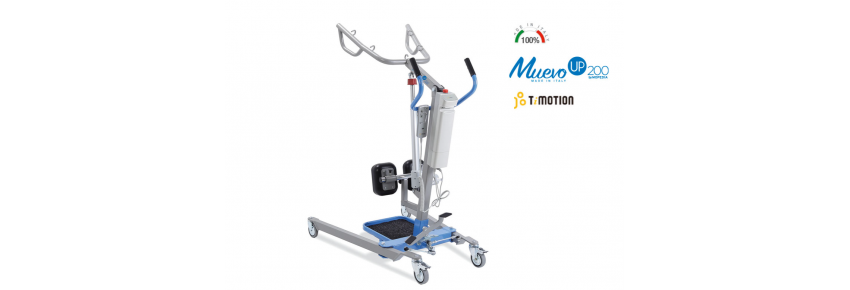

Vertical Lift for Disabled RI840 Muevo Up – Moretti

The vertical lift for disabled RI840 Muevo Up by Moretti is designed to improve the mobility of users with motor difficulties, particularly for those who are forced to use a wheelchair. This electric aid is ideal for facilitating the lifting and transfer of patients from a seated to a standing position, ensuring safety, comfort, and reliability.

Main Features

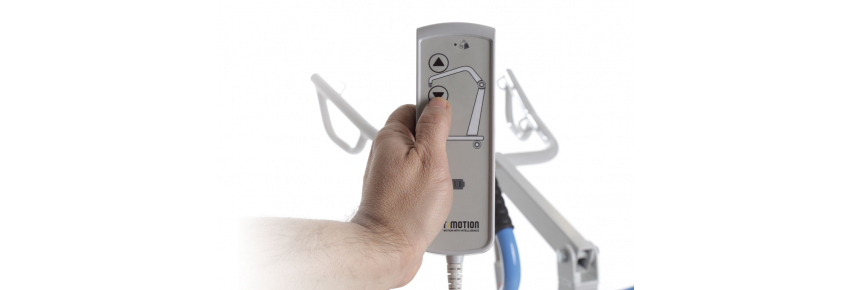

Electric Verticalization: The system allows for the comfortable and safe lifting of the patient, thanks to a TiMOTION actuator that manages the electric movement. The intelligent control unit signals the battery charge level and the conditions of the actuator piston via a light code.
Safety and Reliability: The actuator is equipped with an emergency stop button, while the emergency descent is manual. The battery has a range of over 100 lifts on a full charge.
Robust Structure: The structure is made of painted steel, with adjustable width legs to facilitate access in tight spaces, thanks to the safety lock pedal. The vertical lift is also equipped with swivel wheels with brakes.
Patient Comfort: The vertical lift comes with an adjustable footrest in height and width, and a solid platform with a felt covering, comfortable and non-slip.
Included Harness: The lift is supplied with a back harness, which allows lifting the patient in an upright position without causing discomfort. The harness is made from durable materials, including fabric, tape, and 100% polyester thread, and is tear-resistant and breathable.
Ease of Use: The handles of the vertical lift are designed to ensure comfortable and safe use for both healthcare personnel and caregivers.

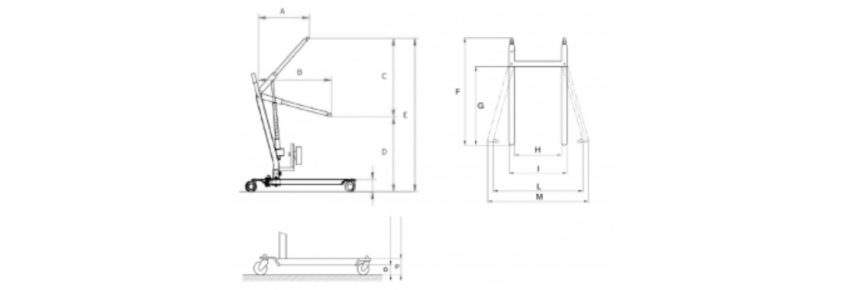

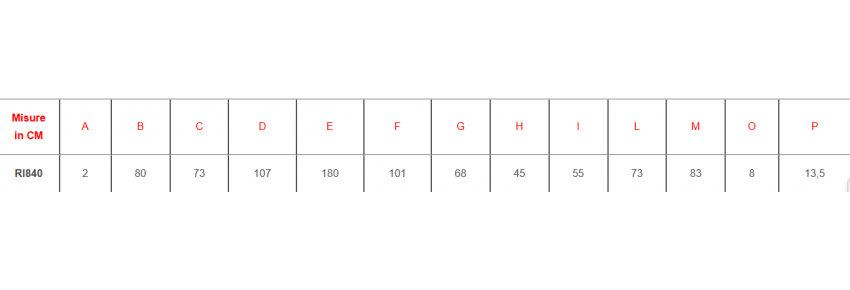

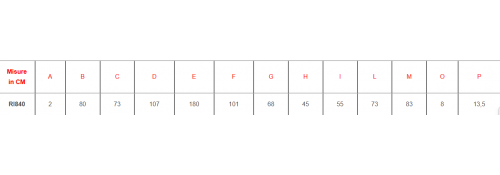

Technical Specifications of the Vertical Lift

Total Weight (Electric Kit Included): 39 kg
Maximum Load: 200 kg

Technical Specifications of the Harness for Disabled (Included)

Total Length: 54 cm
Total Width: 83 cm
Back Width: 51 cm
Abdominal Strap Width: 48 cm
Underarm Strap Width: 20.5 cm
Maximum Load: 180 kg

Advantages of the Vertical Lift

Efficient and Safe Lifting: The electric system allows for easy lifting of the patient from a seated to a standing position, improving comfort and mobility.
Flexibility: The adjustable structure allows for easy access in limited size environments, such as rooms with narrow doors or hallways.
Free Harness: The provided harness is designed to offer maximum support and comfort during lifting.
Ease of Transport: The swivel wheels with brakes and compact design facilitate moving the lift from one environment to another.
High Load Capacity: The lift can support patients up to 200 kg, and the harness has a capacity of 180 kg, making it ideal for a wide range of users.
