Disabled Lift with Lever - MUEVO UP

Electric Lifter RI841 Muevo Up – Moretti

Safe Lifting and Autonomy for People with Reduced Mobility

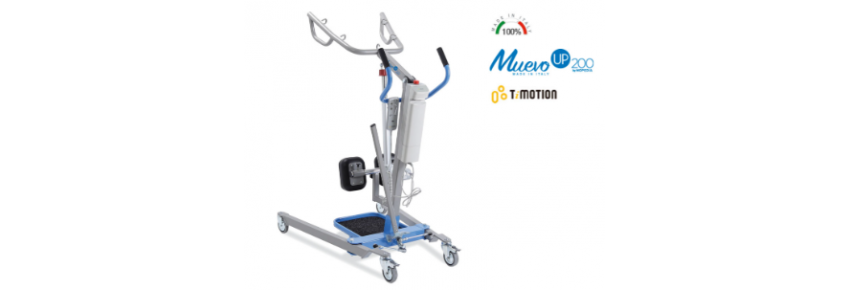

The verticalizer RI841 Muevo Up by Moretti is an innovative aid designed to improve the quality of life for people with motor disabilities. Ideal for wheelchair users, it allows for safe and comfortable transition from a seated to an upright position, facilitating daily transfers in healthcare, residential, or home environments.

Reliable Electric Lifting

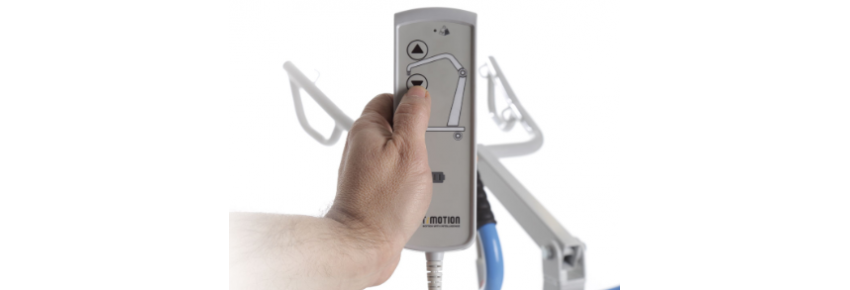

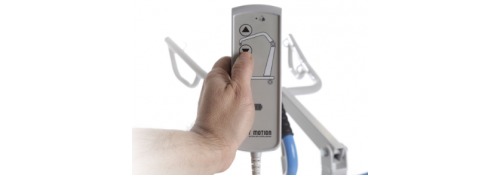

The system is equipped with a TiMOTION electric actuator, ensuring smooth, safe, and silent lifting. The electronic control unit integrates an intelligent monitoring system with light codes to display the battery charge status and the correct functioning of the piston. An emergency stop function and manual descent ensure maximum safety even in unforeseen situations.
With a full charge, the battery supports over 100 lifting cycles.

Robust and Adjustable Structure

Made of painted steel, the verticalizer offers a solid, durable, and wear-resistant structure. The width-adjustable legs via manual lever make it easily adaptable to tight spaces and various operational situations. The swivel wheels with brakes ensure smooth maneuverability and stability during lifting or transfer.

Comfort and Safety for the User

The adjustable knee support, in height and width, allows for adaptation to the different physical needs of the patient, providing stable support throughout the verticalization process. The non-slip platform is equipped with a felt covering to enhance comfort and safety for the feet during use.

Included Harness: Durable and Breathable

The Muevo Up comes with an included back harness, designed for safe, stable, and comfortable lifting. Made from tear-resistant, breathable, and washable fabric, it is suitable for intensive use and in humid environments. The safety hooks integrated into the verticalizer ensure a secure fit of the harness during use.

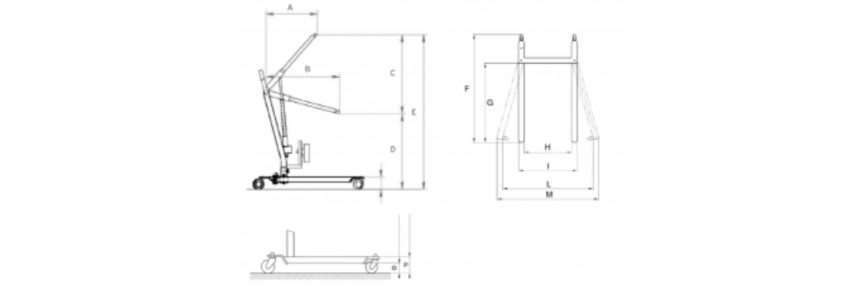

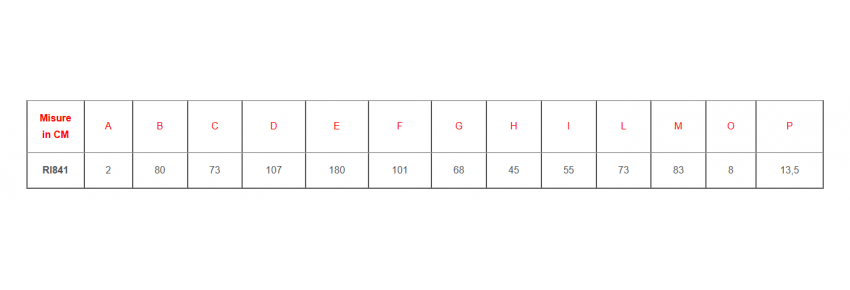

Technical Specifications of the RI841 Lifter

Total weight (with electric kit): 39 kg
Maximum load capacity: 200 kg
Minimum arm height: 107 cm
Maximum arm height: 180 cm
Arm length: 80 cm
Vertical travel: 73 cm
Maximum leg footprint: 101 cm
Minimum leg height from the ground: 8 cm
Leg height footprint: 13 cm
Internal width: min 45 cm / max 73 cm
External width: min 55 cm / max 83 cm

Technical Specifications of the Back Harness

Total length: 54 cm
Total width: 83 cm
Back width: 51 cm
Abdominal strap width: 48 cm
Underarm strap: 20.5 cm
Maximum load capacity: 180 kg
