Disabled Lift - Muevo Up

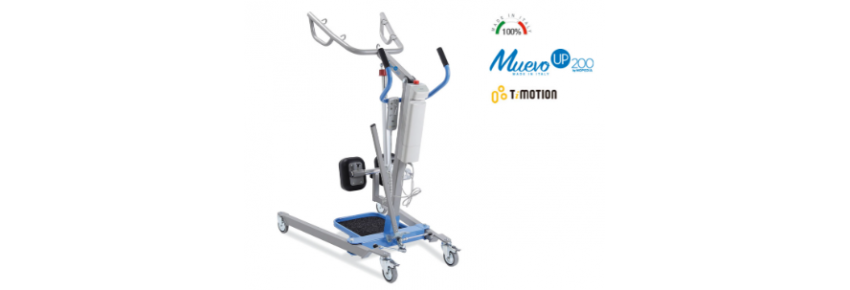

Electric lift RI841 Muevo up - Moretti

Safe lifting and autonomy for people with reduced mobility

The verticalizer RI841 MUEVO UP of Moretti It is an innovative aid designed to improve the quality of people's lives with motor disabilities. Ideal for patients in a wheelchair, it allows safe and comfortable passage from the position sitting to that erect, facilitating daily transfers in sanitary, residential or domestic environments.

Reliable electric lifting

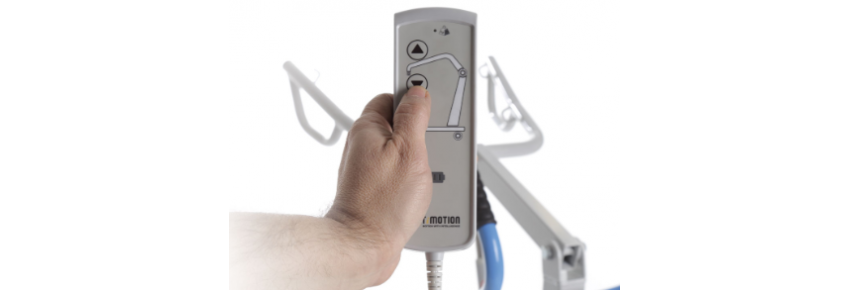

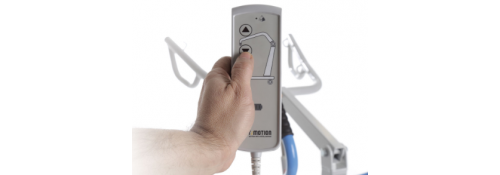

The system is equipped with a Electric Timotion Actuator, which guarantees a smooth, safe and silent lifting. The electronic control unit integrates a Intelligent monitoring system With luminous codes to view the battery charge status and the correct piston operation. A Emergency stop function and the manual descent They guarantee maximum safety even in unforeseen situations.
With a full charge, the battery supports over 100 lifting cycles.

Robust and adjustable structure

Made in painted steelThe verticalizer offers a solid, durable and wear-resistant structure. The Adjustable legs in width By manual lever make it easily adaptable to small spaces and different operating situations. The Adjustable wheels with brake They ensure fluid maneuverability and stability when lifting or transfer.

Comfort and security for the user

The Adjustable knees rest, in height and width, allows to adapt to the different physical needs of the patient, offering stable support during the entire verticalization phase. The anti-slip platform It is equipped with a felt coating to increase the comfort and safety of the feet during use.

Harness included: resistant and breathable

The muevo up is supplied with one Dorsal harness included, designed for a safe, stable and comfortable lifting. Made of fabric I tear, breathable and washable, it is also suitable for intensive use and in wet environments. The Safety hooks Integrated in the verticalizer, they guarantee a solid housing of harness during use.

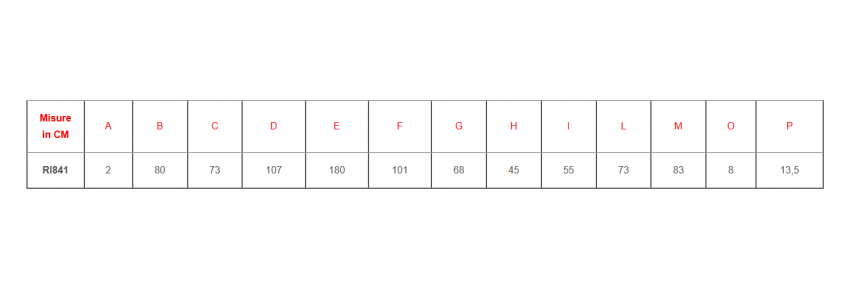

Technical specifications of the RI841 lift

Total weight (with electric kit): 39 kg
Maximum capacity: 200 kg
Minimum arm height: 107 cm
Maximum arm height: 180 cm
Arm length: 80 cm
Vertical excursion: 73 cm
Maximum leg bulk: 101 cm
Minimum height of the legs from the ground: 8 cm
Legsight leg height: 13 cm
Internal width: min 45 cm / max 73 cm
External width: min 55 cm / max 83 cm

Technical specifications Railing harness

Total length: 54 cm
Total width: 83 cm
Backrest width: 51 cm
Abdominal band width: 48 cm
Under-lined band: 20.5 cm
Maximum capacity: 180 kg
