Hydraulic lift

RI823 hydraulic lift: safe and practical lift for disabled people

TheHydraulic lift RI823 is a device designed for the lifting and safe transfer of people with motor difficulties. Made in Italy by Moretti, this hydraulic lift of the line Muevo It offers a practical and efficient solution for the transport of elderly or disabilities, thanks to its leverage system that allows you to easily operate with the support of a companion.

Features of the hydraulic lift for disabled people

Robust structure: the painted steel structure is designed to resist over time, ensuring stability during lifting and transfer operations.

Lever mechanism: Thanks to the hydraulic pump, the operator can easily operate the lift with a lever mechanism that allows you to open the legs of the structure safely, ensuring maximum control.

10 cm swivel wheels: four wheels with brake to facilitate movement safely and stable even in reduced environments, ensuring optimal maneuverability.

Safety lock: To ensure greater protection while using, the lift is equipped with a safety block that keeps the stability of the structure during lifting.

Hydraulic lift with hydraulic pump

The RI823 hydraulic lift is equipped with a hydraulic pump that allows a safe and adjustable lift. This system is particularly suitable for transfers from one surface to another, such as from the wheelchair bed, thanks to its stability and ease of use.

The leverage system and the stability of the structure guarantee lifting operations without risks, making the process more fluid and less tiring for the guide, while improving the user experience.

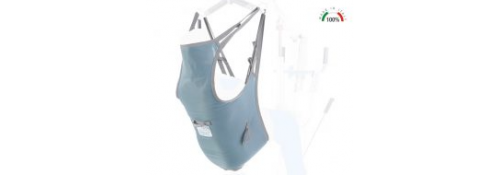

Free harness

With the RI823 hydraulic lift, a free harness is provided, designed to be compatible with all the lifts. The harness is equipped with safety hooks that can be easily attached to the lift bar, allowing a safe and stable transfer of the person.

Standard model: Suitable for all types of bed lifts, the harness securely supports the entire body of the user during lifting, ensuring maximum comfort.

Technical specifications of the lift

• Mobile arm length (a): 66 cm
• Distance between the arm and the base in the work phase (b): 58 cm
• Height of the work area of the arm (C): 97 cm
• Distance from the arm to the ground in the work phase (D): 82 cm
• Diameter from the arm at maximum height to ground (s): 179 cm
• Segment (F): 116.5 cm
• Segment (G): 83 cm
• Segment (H): 44.5 cm
• Segment (s): 54.5 cm
• Segment (L): 79 cm
• Segment (m): 89 cm
• Trolley height from the ground (O): 8 cm
• Segment (P): 13 cm
• Maximum capacity: 150 kg
• Opening lever legs: allows the adaptation of the structure to various needs.

Technical specifications of harness

• Total length: 143 cm
• Total width: 80 cm
• Back length: 93 cm
• Distance between the legs: 35 cm
• Headrest height: 46 cm
