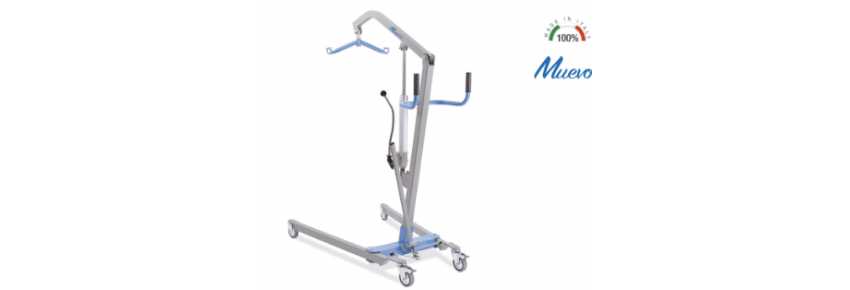

Hydraulic Bed Lifter – Max Load 150 kg

Hydraulic Lifter RI823: Safe and Practical Lifting for Disabled Individuals

The hydraulic patient lift RI823 is a device designed for the safe lifting and transfer of individuals with mobility difficulties. Made in Italy by Moretti, this hydraulic lifter from the Muevo line offers a practical and efficient solution for transporting elderly or disabled individuals, thanks to its lever system that allows for easy operation with the support of an attendant.

Features of the Hydraulic Lifter for Disabled Individuals

Robust structure: The painted steel structure is designed to withstand the test of time, ensuring stability during lifting and transfer operations.

Lever mechanism: Thanks to the hydraulic pump, the operator can easily operate the lifter with a lever mechanism that safely opens the legs of the structure, ensuring maximum control.

Swivel wheels of 10 cm: Four wheels with brakes facilitate safe and stable movement even in confined spaces, ensuring optimal maneuverability.

Safety lock: To ensure greater protection during use, the lifter is equipped with a safety lock that maintains the stability of the structure during lifting.

Hydraulic Lifter with Hydraulic Pump

The hydraulic lifter RI823 is equipped with a hydraulic pump that allows for safe and adjustable lifting. This system is particularly suitable for transfers from one surface to another, such as from bed to wheelchair, thanks to its stability and ease of use.

The lever system and the stability of the structure ensure risk-free lifting operations, making the process smoother and less tiring for the attendant, while simultaneously improving the experience for the user.

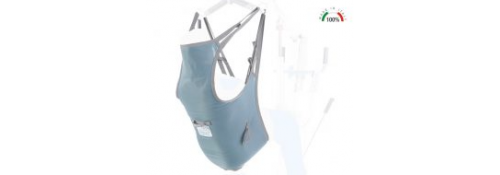

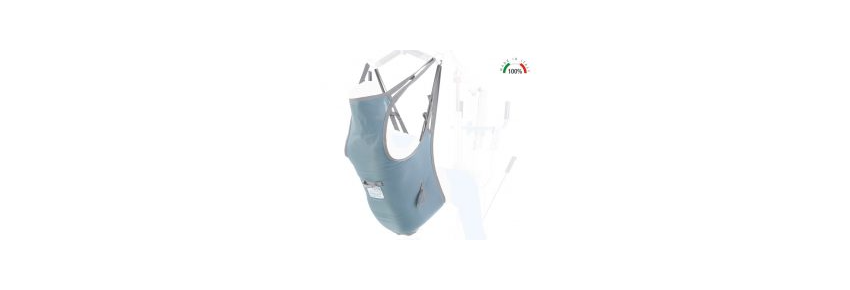

Free Sling Included

With the hydraulic lifter RI823, a free sling is provided, designed to be compatible with all bed lifters. The sling features safety hooks that easily attach to the lifter's spreader bar, allowing for safe and stable transfer of the individual.

Standard model: Suitable for all types of bed lifters, the sling securely supports the entire body of the user during lifting, ensuring maximum comfort.

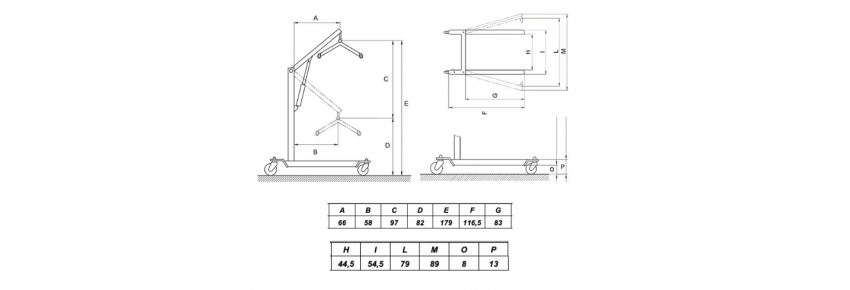

TECHNICAL SPECIFICATIONS OF THE LIFTER

• Length of the mobile arm (A): 66 cm
• Distance between the arm and the base in working phase (B): 58 cm
• Height of the working area of the arm (C): 97 cm
• Distance from the arm to the ground in working phase (D): 82 cm
• Diameter from the arm to the maximum height from the ground (E): 179 cm
• Segment (F): 116.5 cm
• Segment (G): 83 cm
• Segment (H): 44.5 cm
• Segment (I): 54.5 cm
• Segment (L): 79 cm
• Segment (M): 89 cm
• Height of the cart from the ground (O): 8 cm
• Segment (P): 13 cm
• Maximum load capacity: 150 kg
• Lever leg opening: Allows the adaptation of the structure to various needs.

TECHNICAL SPECIFICATIONS OF THE SLING

• Total length: 143 cm
• Total width: 80 cm
• Back length: 93 cm
• Distance between the legs: 35 cm
• Height of the headrest: 46 cm
