Electric Lifter

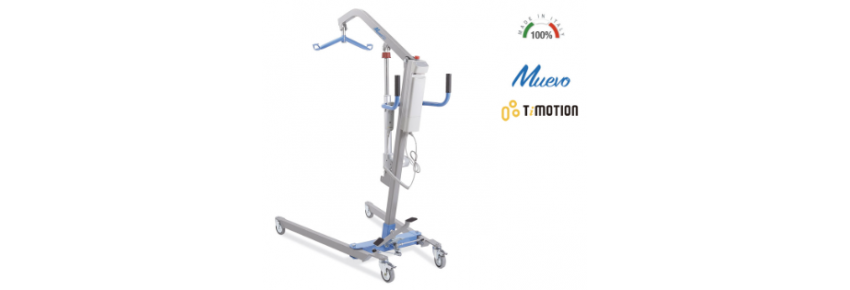

Electric Lifter RI822: An Essential Aid for Safe Lifting and Transfer

The RI822 electric lifter for the elderly from the Muevo line by Moretti is designed to make the transfer of individuals with mobility difficulties safer, more comfortable, and practical. Made in Italy, it is a fundamental aid for lifting people in wheelchairs or with severe mobility issues, supporting the caregiver during the transfer thanks to an advanced motorized system.

Features of the Electric Lifter for Disabled Individuals

The RI822 lifter is designed to be robust, safe, and easy to use. The painted steel structure ensures high resistance, while its structural features make it manageable and practical to use:

• Painted steel structure: Resistant and durable over time.
• Pedal mechanism: Allows for easy opening of the legs of the structure to adapt to the width of the bed or transfer surface.
• Safety locking system: Ensures stability during use.
• 10 cm swivel wheels: Four wheels, two of which have brakes, for easy maneuverability.
• Compact size: Space optimization, facilitating the transport and storage of the lifter.

Timotion Motorization for Safe and Reliable Lifting

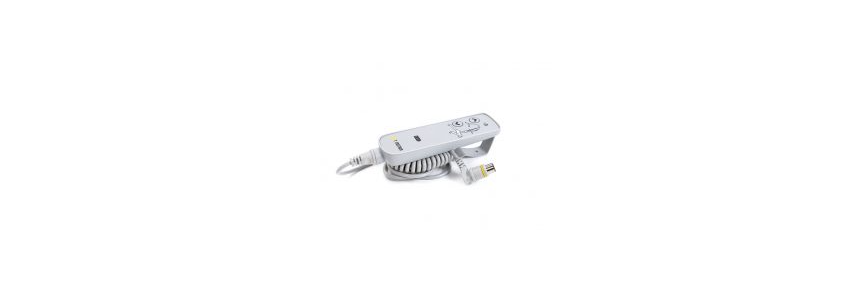

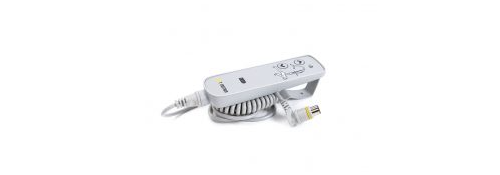

The RI822 electric lifter is equipped with a battery-powered Timotion motor that ensures continuous operation with a duration of over 40 cycles at full load. The motorization makes transfers much safer, more efficient, and comfortable. The control unit allows for easy adjustment of height and position, and the emergency stop button provides additional safety.

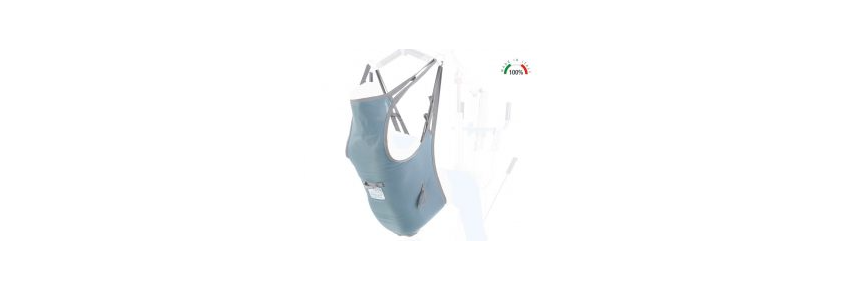

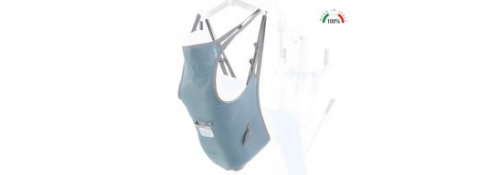

Free Lifter Sling Included

Included with the RI822 lifter is a specially designed sling for lifting disabled or elderly individuals. The sling attaches to the lifter's spreader bar via secure hooks and allows for a comfortable and stable transfer. The sling is standard type, compatible with all bed lifters, and provides total body support, minimizing the risk of stress or pain during the transfer.

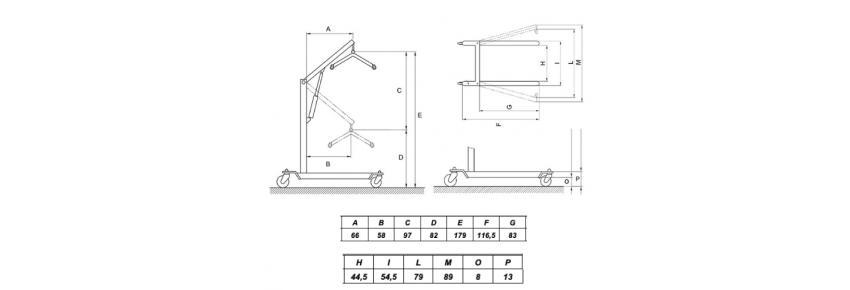

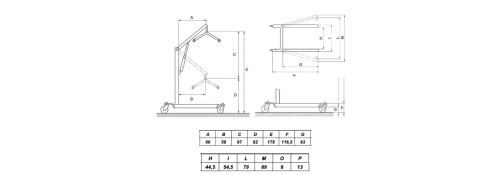

TECHNICAL SPECIFICATIONS OF THE LIFTER

• Length of the mobile arm (A): 66 cm
• Distance between the arm and the base during operation (B): 58 cm
• Height of the working area of the arm (C): 97 cm
• Distance from the arm to the ground during operation (D): 82 cm
• Diameter from the arm to the maximum height from the ground (E): 179 cm
• Segment (F): 116.5 cm
• Segment (G): 83 cm
• Segment (H): 44.5 cm
• Segment (I): 54.5 cm
• Segment (L): 79 cm
• Segment (M): 89 cm
• Height of the cart from the ground (O): 8 cm
• Segment (P): 13 cm
• Pedal leg opening: Easy adjustment to optimize space.

TECHNICAL SPECIFICATIONS OF THE SLING

• Total length: 143 cm
• Total width: 80 cm
• Back length: 93 cm
• Distance between the legs: 35 cm
• Height of the headrest: 46 cm
