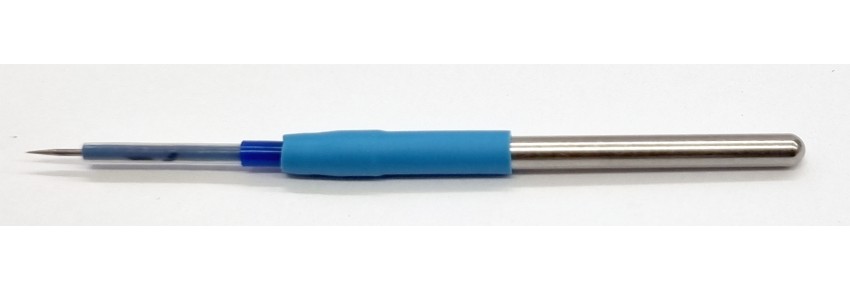

Tungsten needle electrode FIAB F4051/TU – 55 mm, sterile single-use
Reference: 836.F4051-TU
Monopolar active electrode with protected tungsten needle, length 55 mm (51 mm insulated). Standard shaft 2.38 mm, compatible with electrosurgery handles. Sterile, single-use, in a single pouch. Available in a pack of 4 pieces or in a box of 24.
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
The FIAB F4051/TU electrode is an active tungsten needle electrode for monopolar electrosurgery, produced in Italy by FIAB S.p.A. The tungsten series is designed for procedures that require very precise cutting and coagulation, such as microdissection.
The needle is protected by an insulating coating for 51 mm of the total 55 mm: the energy is concentrated only at the tip, reducing the risk of lateral tissue burns.
Main features
- Straight tungsten needle, fine tip for precision work
- 51 mm insulation, active part limited to the tip
- Shank 2.38 mm (3/32"), the standard for monopolar handles
- Ethylene oxide sterilized, ready for use
- Latex-free
- Single-use: no reconditioning, no risk of cross-contamination
Intended use
Conducts energy from the monopolar electrosurgical generator to the surgical site for cutting and coagulating tissues. For use by qualified healthcare personnel only.
Warnings
Do not use on patients with pacemakers or other active implants without first consulting a cardiologist. Do not use if the packaging is open or damaged or if the insulation is visibly damaged. Do not reuse. Consult the instructions for use before use.
Technical specifications
| Manufacturer code (REF) | F4051/TU |
| Manufacturer | FIAB S.p.A., Vicchio (FI), Italy |
| Type | Protected monopolar active needle electrode |
| Needle material | Tungsten |
| Total length | 55 mm |
| Insulated length | 51 mm |
| Shape | Straight needle |
| Shank diameter | 2.38 mm (3/32") |
| Maximum applicable voltage | 9 kVpp |
| Sterilization | Ethylene oxide |
| Use | Single-use |
| Latex | Absent |
| Class | IIb, Regulation (EU) 2017/745 (MDR) |
| Notified body | BSI, no. 2797 |
| Packaging | Single sterile pouch; sold in packs of 4 pieces or in original box of 24 |
| Validity | 4 years from production |
| Storage | 0–50 °C, humidity 20–80%, protected from sunlight |
Product Details
836.F4051-TU
Specific References
- EAN13
- 8054242440256
- MPN
- 18054242440253
Download
electrode-instructions
Download (383.02KB)
Monopolar active electrode with protected tungsten needle, length 55 mm (51 mm insulated). Standard shaft 2.38 mm, compatible with electrosurgery handles. Sterile, single-use, in a single pouch. Available in a pack of 4 pieces or in a box of 24.
