ECG SE-301

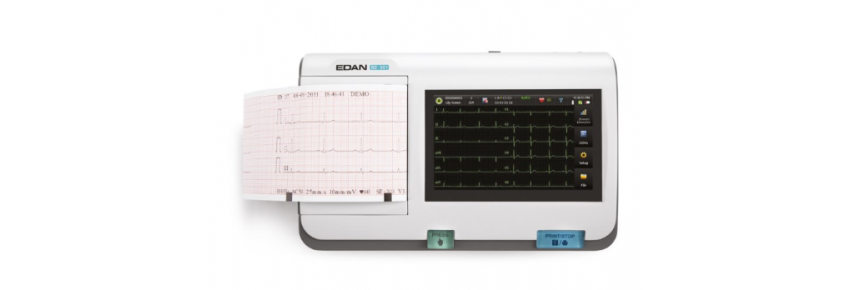

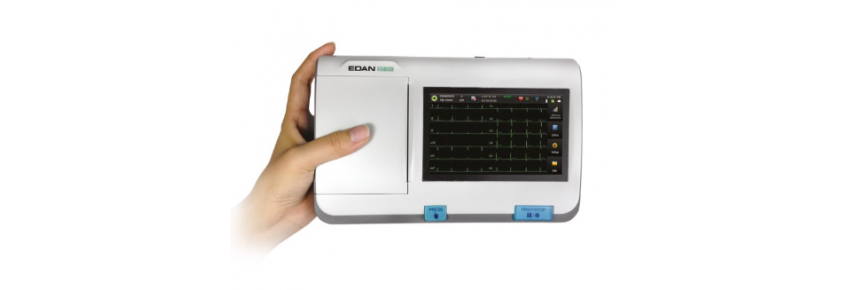

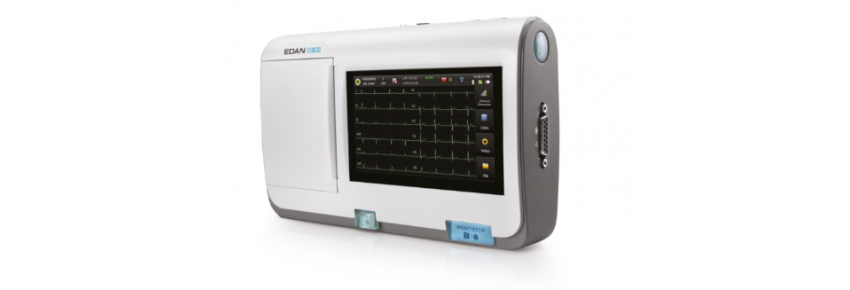

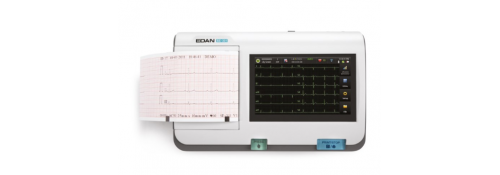

SE-301 Electrocardiograph – 3 Channels – Interpretive – Touch Screen Display

The SE-301 electrocardiograph is an ultra-compact and versatile device designed for healthcare professionals who need a portable, easy-to-use, high-performance device. Equipped with a high-resolution color touch screen, it offers a wide range of advanced features, including simultaneous acquisition of 12 leads, storage of 500 recordings, and the ability to export tracings in PDF format via USB connection. The internal lithium-ion battery provides long battery life, making it ideal for use on the go.

Main Features:

Portability and compactness: Extremely lightweight and easy to carry, ideal for clinical, hospital, and mobile use.

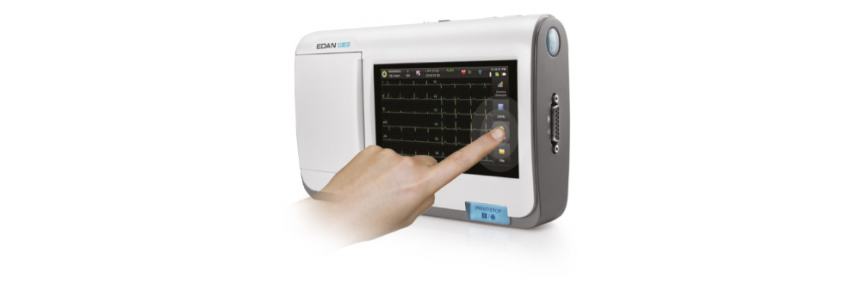

Touch screen display: 5" high-resolution color screen that allows for clear and immediate viewing of tracings.

Simultaneous lead acquisition: Acquisition of 12 ECG leads simultaneously for a complete view of the cardiac tracing.

Memory and extended memory: Memory for 500 recordings, with the option to expand via USB flash disk or micro SD card.

Export and connection: Export of tracings in PDF and bi-directional connection with computer via software (optional).

External printing function: The ability to print reports via a USB port, useful for having an immediate paper copy.

Digital filters: Equipped with filters to reduce noise and obtain precise and reliable tracings.

Battery Life and Operating Modes:

• Lithium-ion battery: Approximately 8.5 hours of battery life with a full charge.
• Manual Mode: Continuous recording for up to 5 hours.
• Auto Mode: Stores up to 500 reports and allows for automatic archiving of tracings.

Advanced Functions:

• Sampling up to 120 seconds: For a complete analysis of the tracing.
• Ability to extend memory with USB flash disk and micro SD card.
• Barcode reader: Optional connection to simplify patient data storage.

Included Accessories:

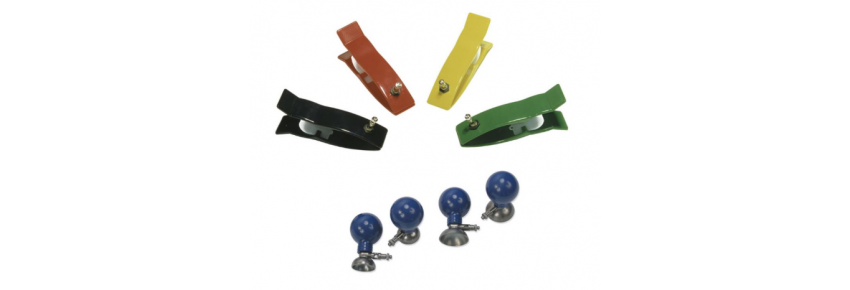

• 1 set of electrodes

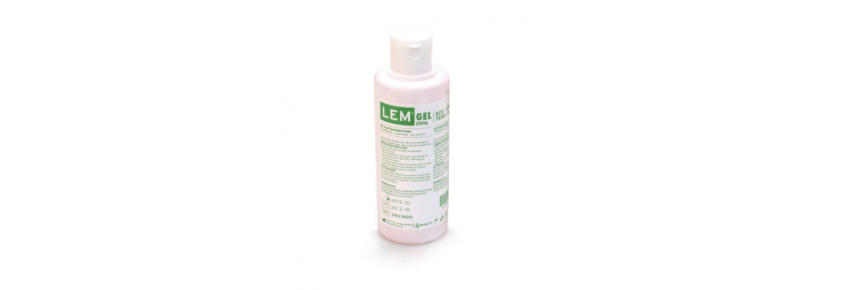

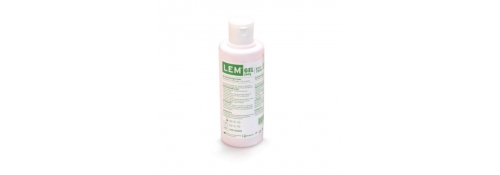

• 1 gel

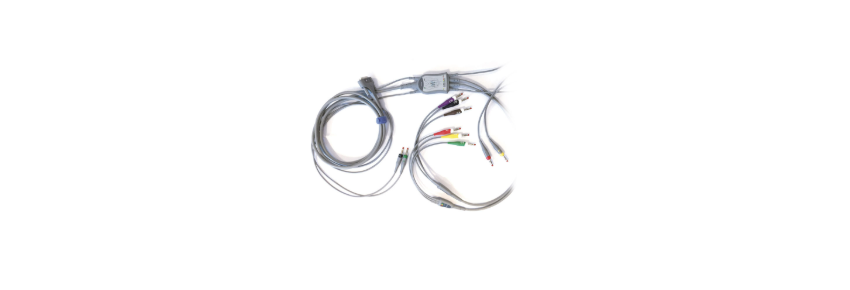

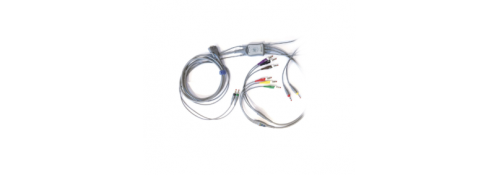

• 1 patient cable

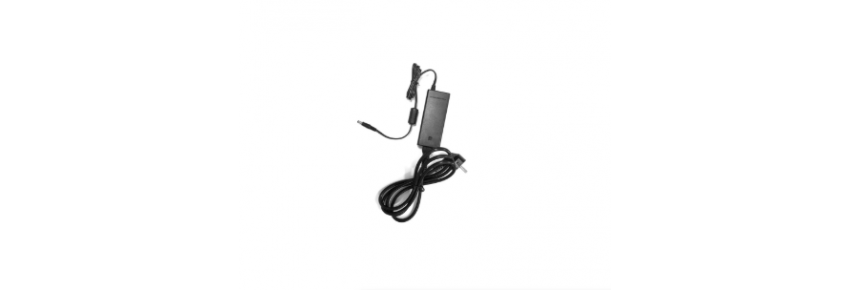

• 1 standard power cable

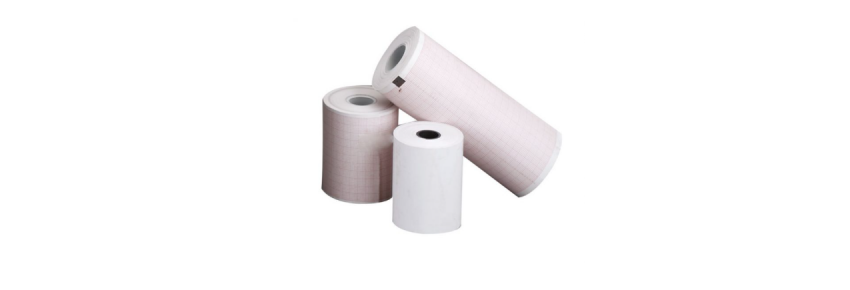

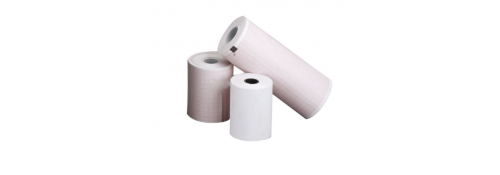

• 1 millimeter thermal paper

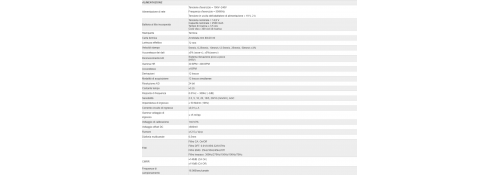

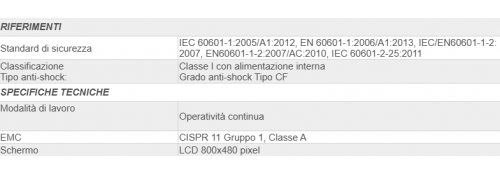

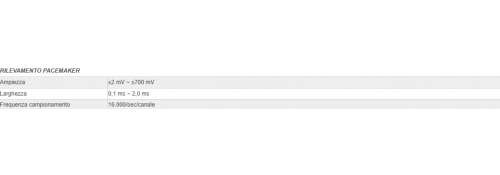

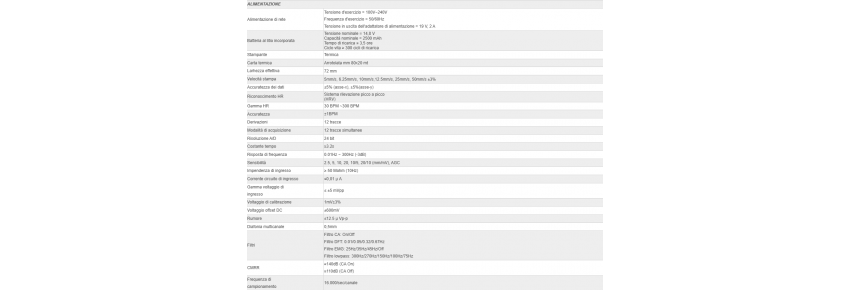

Technical Specifications:

• Display: 5" high-resolution color touch screen.
• Simultaneous acquisition: 12 ECG leads simultaneously.
• Memory: Up to 500 recordings with data transfer via dedicated software.
• Sampling: Up to 120 seconds.
• Battery life: Approximately 8.5 hours with a fully charged battery.
• Manual Mode: Continuous recording for up to 5 hours.
• Auto Mode: Stores up to 500 reports.
• PC Connection: Bi-directional via software (optional).
• USB Connection: For data export in PDF format and for external printing.
