Electrocardiograph SE-300B

SE-300B Electrocardiograph – 1/3 Channels – Interpretive – Large Color Display

The SE-300B electrocardiograph is a compact and highly functional device designed to perform high-quality electrocardiograms with easy and intuitive use. Thanks to its portability, it is ideal for clinical and hospital environments where rapid execution and interpretation of ECG tracings are required. It features a color display, automatic storage of tracings, and the ability to export data via USB in DAT and PDF formats.

Main Features:

• Portability: Lightweight and easily transportable, with a practical integrated handle for easy movement.
• Color LCD Display: Large 320x240 pixel display, allowing for clear and sharp visualization of tracings.
• Internal Li-Ion Battery: Allows for prolonged use in mobility, without the need for external power supply.
• Data Export: It is possible to export stored data via USB in DAT and PDF formats for convenient storage and analysis.
• Automatic Interpretation: Automatic analysis of ECG parameters with automatic calculation of results and interpretation of tracings.
• Digital Filters: Protection against baseline drift, AC noise, and EMG interference for clear and reliable results.
• Memory: Stores up to 100 patients, with the ability to transfer data to a PC via dedicated software.
• Tracing Selection: Can simultaneously acquire up to 12 channels, with the option to display 3, 6, or 9 tracings as desired.

Included Accessories:

• 1 set of electrodes.
• 1 standard patient cable (Cod. DRV2083/P).
• 1 standard power cable.

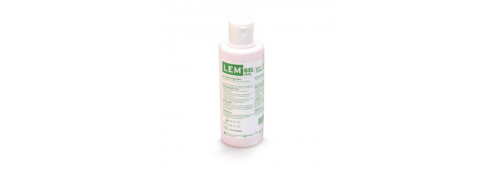

• 1 gel (Cod. DRV1800, 260g).

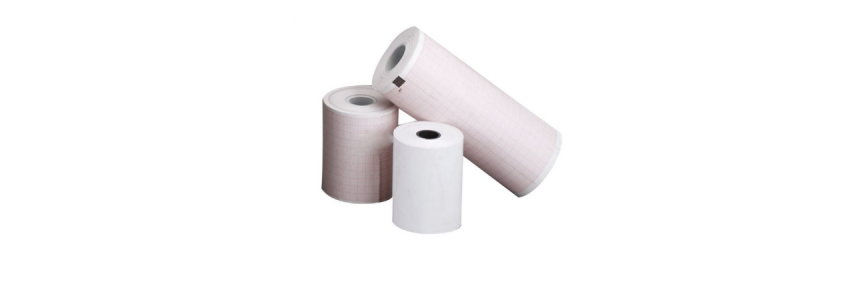

• 1 millimeter thermal paper (Cod. DRV1521).

Technical Specifications:

• Input Circuit: Floating with protection from defibrillator and pacemaker.
• Cable: Standard 12 LEAD.
• Acquisition Mode: 12 simultaneous channels.
• A/D Converter: 12 bit.
• Measurement Range: > ± 5mVpp.
• Frequency Response: 0.05Hz – 150Hz.
• ECG Parameter Calculation and Analysis: Yes.
• Memory: Stores 100 patients with exportable data.
• Filters: AC filter (On/Off), DFT (0.05/0.15/0.25/0.32/0.5/0.67Hz), EMG (25Hz/35Hz/45Hz/OFF), Low Pass (150Hz/100Hz/75Hz).
• CMRR (Common Mode Rejection Ratio): > 90db.
• Recording Mode: Automatic/manual.
• Paper Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s ± 3%.
• Connectivity: RS232, USB, Ethernet.
• Printer: Thermal, with 80mm x 30m paper.

Safety:

• Safety Standards: Compliance with IEC I/CF standards.
• Noise Level: <12.5 μV p-p.
• Patient Leakage Current: <10μA (220V-240V/Hz).
• Auxiliary Leakage Currents on Patient: < 0.1μA (DC).

Dimensions and Weight:

• Dimensions: L: 28.8 cm x W: 21 cm x H: 7 cm.
• Weight: 2.3 kg (with batteries).

Additional Features:

• Patient Memory: Allows for quick storage and visualization of data for multiple patients.
• HRV Function: Analysis of heart rate variability for a more comprehensive view of heart health.
• Selectable Print Format: 3 LEAD, Rhyth LEAD, 3/2 LEAD, and manual mode.
