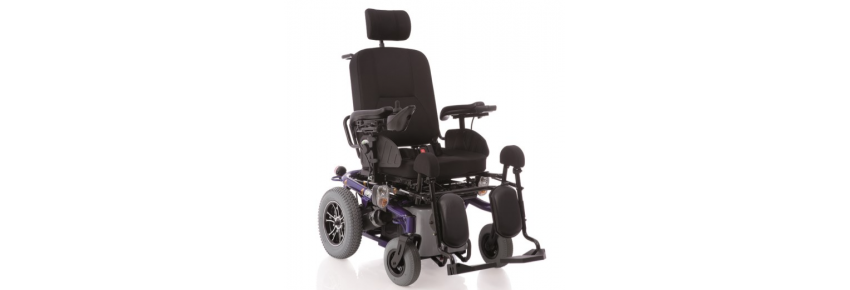

Multifunction Electric Wheelchair - ARIES PRO

Multifunctional Electric Wheelchair CS920BL Aries Pro: Comfort and Versatility for Assisted Mobility

The multifunctional electric wheelchair Aries Pro is an advanced and versatile solution designed to provide complete postural support and a high level of comfort. Ideal for individuals with complex motor disabilities, this model stands out for its electric adjustment capabilities of both the seat and backrest, reaching a bed position. Thanks to these advanced features, the wheelchair ensures smooth mobility and optimal adaptation to various assistance needs.

Additionally, the version with a car-type seat and manually adjustable headrest offers superior comfort, while the adjustable or fully removable footrests and armrests facilitate transfers. The painted steel frame ensures robustness, making the CS920BL ideal for daily use in both indoor and outdoor environments, supporting a load capacity of up to 136 kg.

Electric Wheelchair CS920BL Aries Pro: Functionality and Advanced Support

The CS920BL Aries Pro is an innovative model that integrates advanced electric functions, such as BED, HIGH, and HIGH SIDE modes, to easily adapt posture to the user's clinical needs. The car-type seat, with dimensions of 250x160 mm and an adjustable headrest, provides ergonomic and secure support during use. The manual vertical lift of the seat, from 0 to 80 mm, facilitates assistance and allows for further customization of the position.

The footrests are adjustable in length and can be completely removed, while the armrests are adjustable to enhance accessibility and comfort. Thanks to the steel frame, the wheelchair ensures excellent stability and is designed to withstand the test of time, with a maximum load capacity of 136 kg.

High Performance and Extended Autonomy with the CS920BL Wheelchair

The electric wheelchair CS920BL Aries Pro is powered by two 420W motors, providing powerful and smooth rear-wheel drive, ideal for tackling even more challenging routes. With a maximum speed of 8 km/h, the wheelchair can overcome obstacles up to 22 mm and handle slopes of up to 8° / 14%. The turning radius of 110 cm makes it maneuverable even in tight spaces.

The 75Ah (12V) batteries offer a range of 48 km, ensuring long-lasting use between charges. The electromechanical brake ensures safe and reliable stopping. With its robust structure and electric seat adjustments, the CS920BL is designed for intensive use, improving the quality of life and autonomy of the user.

Technical Specifications of the Electric Wheelchair CS920BL

• Structure: Painted steel
• Seat and backrest: Electrically reclining to bed position
• Main functions: BED, HIGH, HIGH SIDE
• Footrests: Adjustable in length, antero-posterior adjustment, removable
• Seat: Car type with headrest (250x160 mm), height adjustable from 0 to 80 mm
• Motors: 2 x 420W – 4600 rpm
• Drive: 2 motors on the rear wheels
• Batteries: 2 x 75Ah (12V)
• Charger: 8A
• Maximum speed: 8 km/h
• Range: Up to 48 km
• Maximum climbable slope: 8° / 14%
• Maximum obstacle height: 22 mm
• Turning radius: 110 cm

Dimensions of the CS920BL Wheelchair

• Wheelchair depth: 121.5 cm
• Wheelchair width from wheel to wheel: 79 cm
• Overall height (adjustable): from 121 to 143 cm
• Height from ground to handles (adjustable): from 78 to 84 cm
• Seat height from ground (adjustable): from 54 to 73 cm
• Footrest length (adjustable): from 48 to 56 cm
• Backrest height: 55 cm
• Seat width: 45 cm
• Seat depth: 40 cm
• Maximum width: 67 cm
• Rear wheels: 36 cm
• Front wheels: 23 cm
• Maximum load capacity: 136 kg
• Net weight of wheelchair: 147 kg
