Liquid nitrogen dispenser fixed

AVAILABLE ONLY IN ITALY

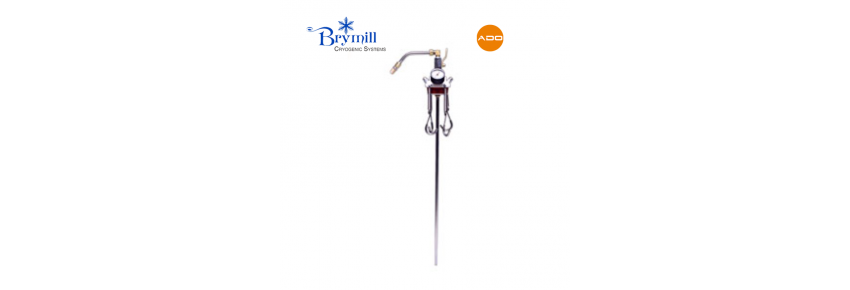

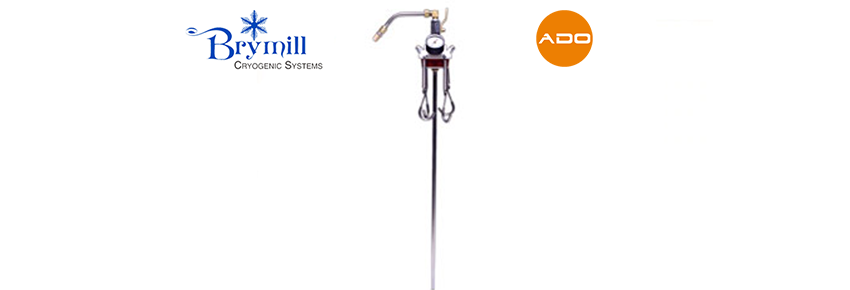

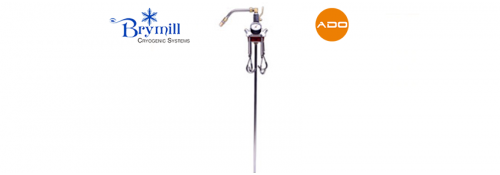

Fixed Stainless Steel Dispenser for Liquid Nitrogen - Safe and Permanent Solution for Dispensing

The fixed stainless steel dispenser is designed to be permanently installed on the Dewar liquid nitrogen container, providing a convenient, safe, and durable solution for extracting liquid nitrogen. This device is ideal for environments where constant and controlled access to liquid nitrogen is required, such as in laboratories, clinics, or medical facilities.

Robust and Reliable Structure

Made of stainless steel, the fixed dispenser offers exceptional resistance, ensuring long-lasting durability and protection against corrosion. This type of dispenser is designed to be permanently fixed to the Dewar, eliminating the need to frequently assemble and disassemble the device.

Technical Features of the Fixed Dispenser

• Control Manometer: Allows monitoring of the liquid nitrogen pressure, ensuring that the system operates within safety parameters.
• Two Safety and Vent Valves: Located on the cap head, these valves provide additional protection against potential overpressure, ensuring safe release of liquid nitrogen.
• Tap and Control Lever: Essential tools for precise adjustment of nitrogen flow, allowing for easy dosing of the dispensing.
• Four Spring Hooks: Used to securely lock the cap onto the Dewar opening, preventing movement or accidental spills.
• Cleaning Filter: Ensures that the extracted liquid nitrogen is free from impurities, avoiding contamination during the dispensing process.
• Dip Tube: The length of the tube varies based on the Dewar capacity (available for 20 and 30-liter Dewars).

Compatibility and Applications

This dispenser is compatible with 20 and 30-liter Dewar containers, and is designed for environments where a continuous flow of liquid nitrogen is needed, such as in cryotherapy applications, biological sample preservation, and in industrial processes that require liquid nitrogen for rapid cooling.

Product Features

• Material: High-quality stainless steel
• Manometer: Included for pressure monitoring
• Safety Valves: Two for added protection
• Spring Hooks: For secure fastening
• Cleaning Filter: To ensure pure liquid nitrogen
• Dip Tube: Variable length (suitable for 20 and 30-liter Dewars)
