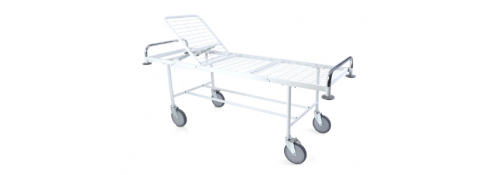

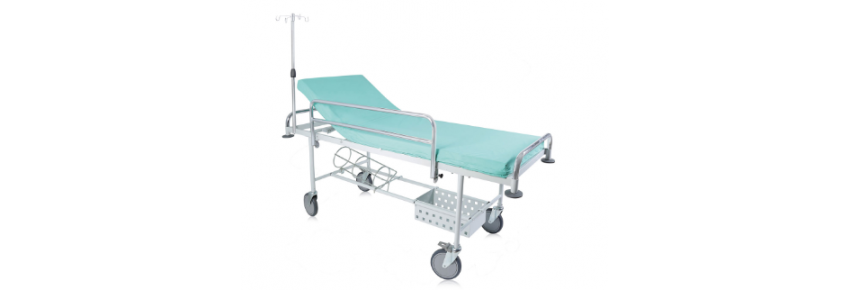

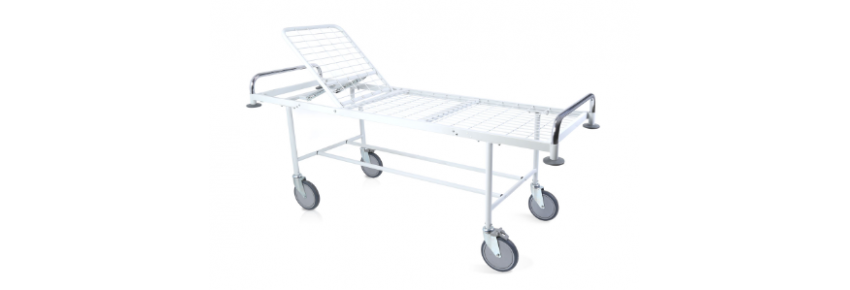

Fixed Height Stretcher with Adjustable Backrest

Fixed Height Stretcher – Robust and Versatile Solution for Patient Transport and Care

The fixed height stretcher is an essential medical device for transporting patients within healthcare facilities, such as hospitals and clinics. Designed to ensure safety, comfort, and durability, this stretcher is ideal for transport in indoor environments, with a structure that offers exceptional strength and optimal maneuverability. Thanks to its versatile design, this stretcher can be used for a wide range of patients, from emergencies to long-term care situations.

Main Features of the Fixed Height Stretcher

• Robust Painted Steel Structure: The stretcher's painted steel structure is designed to withstand wear and ensure long-lasting durability. The painted steel not only provides additional protection against corrosion but is also easy to clean and maintain, making it an ideal choice for healthcare environments where hygiene is essential.
• Corner Bumpers in Resin for Increased Safety: The 4 corner bumpers in resin are strategically placed at the corners of the stretcher to protect the patient during transport and prevent accidental damage. These bumpers also reduce the risk of damaging walls or other surfaces during the movement of the stretcher.
• Rack and Pinion Backrest Adjustment: The backrest adjustment via rack and pinion allows the backrest to be tilted from 0° to 70°, enabling the adjustment of the patient's position to enhance comfort during transport or care. This rack and pinion mechanism is safe and easy to use, ensuring a stable position for the patient during transport.
• Swivel Wheels for Easy Maneuverability: The stretcher is equipped with 4 swivel wheels with a diameter of 200 mm, of which 2 have brakes to ensure optimal maneuverability in tight spaces, such as corridors and emergency rooms. The swivel wheels allow for smooth movement in all directions, while the additional brake allows for easy stopping of the stretcher in stable positions when necessary.
• Maximum Load Capacity and Safe Working Load: With a maximum patient load of up to 180 kg and a safe working load of 215 kg, this stretcher can support a wide range of patients, including those with special assistance needs or mobility difficulties. The robust structure and high load capacity ensure optimal safety even in emergency situations.
• Optimized Design for Comfort and Safety: The size of the mesh platform (L: 200 x W: 65 cm) is designed to accommodate patients of various body types, ensuring a stable position during transport. The mesh platform is at a fixed height of 74 cm, allowing easy access to the patient for healthcare personnel.

Technical Specifications of the Fixed Height Stretcher

• Weight of the Stretcher: 32 kg: Despite its generous dimensions and robust structure, the weight of 32 kg allows for relatively easy transport while maintaining a safe load capacity.
• Backrest Inclination: 0° - 70°, easily adjustable via the rack and pinion system, to improve patient comfort during transport.
• Maximum Patient Load: 180 kg, suitable for patients of various sizes, ensuring safety and stability during transport.
• Safe Working Load: 215 kg, ensuring optimal protection and structural stability even under load.
• Mesh Platform Size: L: 200 cm x W: 65 cm x H: 74 cm, designed to accommodate the patient in a comfortable and stable position.

Dimensions of the Stretcher:

• L: 212 cm
• W: 72 cm
• H: 88 cm
