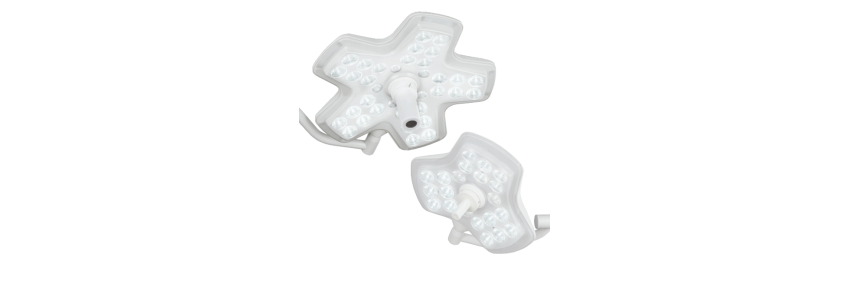

ACEM57 LED Slide Lamp From Stativo: Performance and Reliability for Every Surgery

The ACEM57 LED Scialitic Lamp from Stativo is designed to offer a exceptional lighting in all types of surgical interventions, from smaller to high complexity. Thanks to a advanced LED technology and a design ergonomic and compact, this lamp is ideal for modern operating rooms that require uniform lighting, bright and without shadows. The ease of movement and the simple maintenance make the ACEM57 a great choice for dynamic surgical environments.

Main Features

• Advanced LED technology: ACEM57 consists of 140 LED arranged in 35 bright groups, guaranteeing light intense and uniform. The LED distribution allows optimal performance, without shadows, for perfect visibility during surgery.
• Optimal lighting: The lamp provides a light intensity of 160.000 LUX in the center, with the possibility to adjust the intensity from 10% 100% to meet every operational requirement. The depth of light it is 117 cm a 20% brightness and 71 cm to 60% brightness, allowing to deeply illuminate the area of intervention.
• Temperature Color Adjustable: The color temperature lamp can vary between 3,000 °K and 5,700 °K, to offer better visibility according to the needs of the intervention, adapting perfectly to the working conditions.
• High Quality of Light: THERE'color rendering index (Ra) it is 99/98/99, while the index R is higher than 90, ensuring a faithful representation of the colors of biological tissues and optimizing diagnostic accuracy.

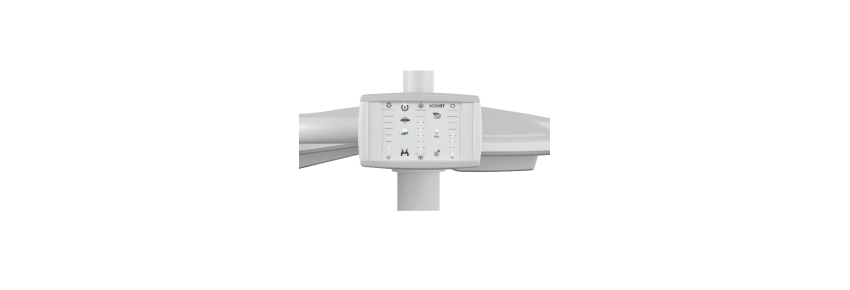

• Touchscreen Control Panel: ACEM57 is managed by a touchscreen control panel, available in two versions: STANDARD or PREMIUM (optional). The panel is ergonomic and easy to use, allowing intuitive control of the lamp.

Technical Details

• Safety class (EN 60601-2-41): Class I, compliant with safety standards for medical devices.
• Power voltage: 100 - 240 VCA ±10%, compatible with different network voltages.
• Energy consumption: 69 W, for excellent energy efficiency.
• Frequency: 50/60 Hz.
• LED duration: 60,000 hours, ensuring long life and reducing maintenance costs.
• Diameter of the lamp body: 74 cm, with a weight of 4 kg for the lamp itself and 23 kg for the complete support.
• Support weight: 23 kg, for a stable and secure installation.
• Low Ceiling Arms (LCH): Available for optimal mounting in tight spaces.

Main Advantages

• Powerful and homogeneous lighting: With 160.000 LUX and optimal light depth, the ACEM57 offers excellent lighting for all types of surgery.
• Accurate control of light: The possibility of adjust the intensity from 10% to 100% allows to adapt the lighting to every specific situation.
• High quality visual: The temperature color adjustable and l'high colour rendering index (Ra 99) ensure a detailed and accurate view of tissues.
• Easy to maintain: The smooth surface of the lamp is designed to be easily cleaned, reducing the risk of contamination and improving hygiene in the operating room.
• Ergonomics and manoeuvrability: The compact design and lightweight allows you to easily move the lamp, improving flexibility and practicality during surgery.

Main applications

THERE'ACEM57 from static is ideal for a wide range of surgical applications, including:

• General surgery.
• Orthopedic surgery.
• Vascular surgery.
• Ophthalmology and other specializations.

Design and Maintenance

The design compact and robust aCEM57 saves space and ensures stability during use. The smooth and durable surface helps maintain high hygiene standards and simplify cleaning and disinfection.
