ACEM35 ski lamp - From ceiling

ACEM35 LED SCIALITIC LAMPADA - From ceiling

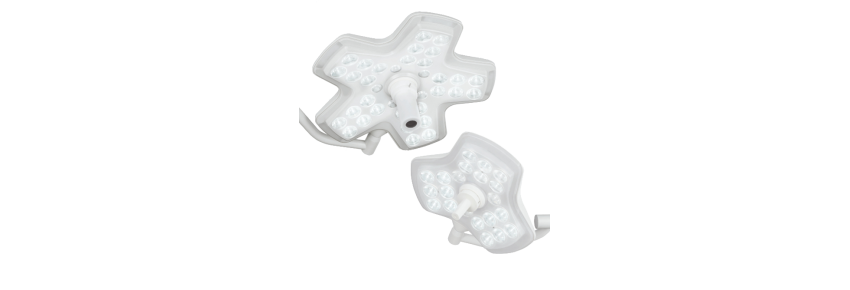

The lamps ACEMST35 ensure the perfect lighting of small and large operating fields. They generate a white, warm or cold light, bright, uniform, shadow-free and long-lasting. The use of ACEMST35 is simple and intuitive. Solid, but easy to move, have a compact design that makes them compatible with the laminary flows present in the operating room. The smooth and continuous surface facilitates cleaning operations, while the plastic material used for the light emission surface is performing and highly resistant.

ACEMST35 consists of 84 LEDs distributed in 21 light groups that ensure optimal lighting in each operating room. The latest-generation ACEMST35 technology is highly performing and provides optimal lighting conditions for any type of surgery and tissue to be treated surgically. The lamps can be managed by STANDARD or PREMIUM (optional) control panel in Touchscreen mode.

• Class (EN 60601-2-41) I
• Power voltage 100 - 240 VCA ±10%
• Energy consumption 69 W Frequency 50/60 Hz
• LED technology Duration 60,000 hours
• Central lighting (Ec @ 100 cm) 160.000 lux
• Light adjustment from 10% to 100%
• Color temperature - CCT 3.000 °K - 5.700 K
• Color rendering index - Ra 99/98/99
• Index R9 > 90
• Color coordinates x = 0.365 - y = 0.370
• Diameter of the luminous field 21 - 36 cm
• Focusable working distance 70 - 150 cm
• Light depth L1+L2 (20%) 117 cm
• Light depth L1+L2 (60%) 71 cm
• Body weight lamp 4 kg
• Body diameter lamp 61 cm
• Ceiling mounting weight 6 - 9 kg
• Wall mount weight 5,3 kg
• Support weight 23 kg
• Low Ceiling Arms (LCH)
• Optional Removable and sterilisable Manipula
• Color White raL 9002
