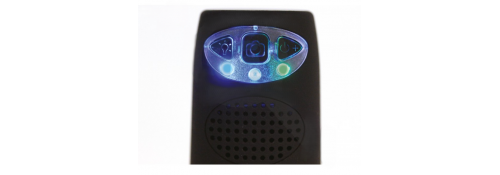

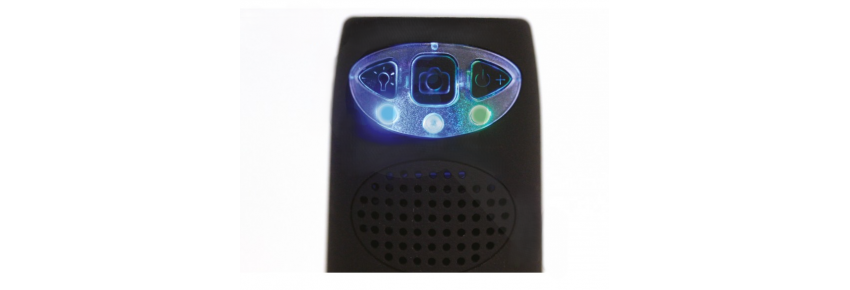

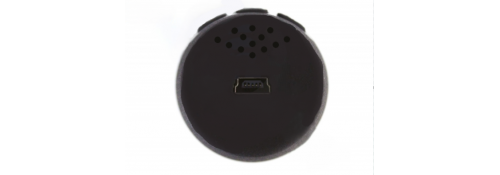

Dermatoscope and Polarized Capillaroscope

POLARIZED Wi-Fi/USB DERMATOSCOPE/CAPILLAROSCOPE

High-resolution digital medical device with wireless transmission for PC, tablet, and smartphone.

The professional digital dermatoscope features an integrated polarizing filter and high-speed Wi-Fi technology, designed for precise real-time imaging of skin and capillaries. With a 5MP resolution and variable magnification up to 200x, it ensures accurate dermatological diagnostics, ideal for specialist doctors, dermatologists, trichologists, and healthcare professionals in clinical and outpatient settings.

Compatible with PC, Mac, tablet, and smartphone, the dermatoscope allows high-resolution photo and video capture via Wi-Fi or USB, with dedicated software and apps for all major operating systems.

Main Technical Features

• High-Resolution 5MP Sensor: crisp, detailed images for precise dermatological analysis.
• Integrated Polarizing Filter: reduces skin surface reflections, enhancing subcutaneous and capillary visibility.
• Wi-Fi Transmission (IEEE 802.11 b/g/n): stable, fast connection up to 5 meters.

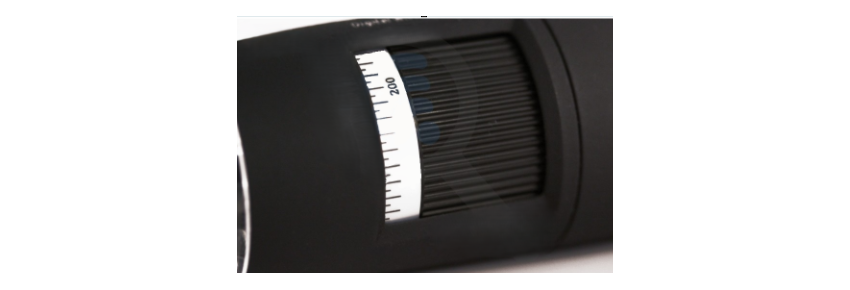

• Contact Magnification 30x ~ 60x ~ 200x: allows detailed analysis of skin and microcirculation.
• Adjustable LED Illumination: 8 high-brightness white LEDs with variable intensity for any observation condition.
• Multi-platform Compatibility: works via Wi-Fi or USB with Windows, Mac, iOS, Android.
• Compact and Lightweight Design: aluminum body 36 mm x 142 mm, weight 88 g, easy to handle during exams.

General Specifications

• Operating system: Windows, OS X, iOS, Android
• Battery: Lithium, approx.2 hours at full use
• Power Adapter: DC5.0V / 1A (use only power supplies compliant with current regulations)
• Device class according to EN 60601-1: 2006 + A1: 2012: Class II
• Parts applied according to EN 60601-1: 2006 + A1: 2012: Type B
• Degree of protection (EN 60529: 1991 + A2: 2013): IP40 (wrapper protected against solid bodies larger than 1mm and against access with a thread, but not protected from liquid input)
• Working mode: Continuous
• Lifespan: 5 years

Dermatoscope specifications

• Magnification: 5x ÷ 200x
• Viewing distance: 8 ÷ 200mm
• Focus Range: 8 ÷ 200mm

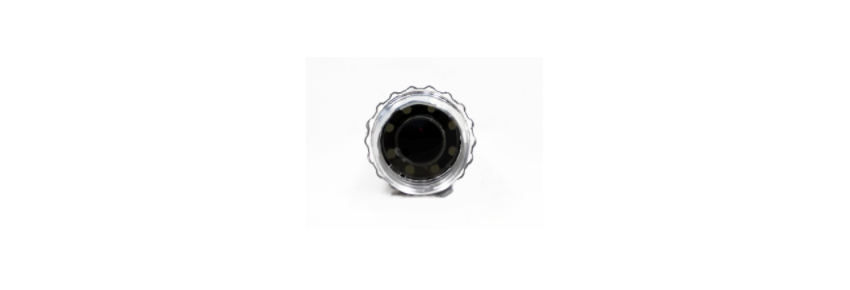

• Led: 8 white LEDs, adjustable LED intensity
• Lenses: High Definition Microscopy Lens
• Dimensions (diameter x length): 36mm x 142mm
• Weight: 88g

Packaging content

• 1 Mic-Fi Digital Dermatoscope with integrated USB cable
• 1 Power adapter 5.0V/1A
• 1 Mic-Fi Software CD and user manual
• 1 Quick-start instruction manual
• 1 Millimeter grid

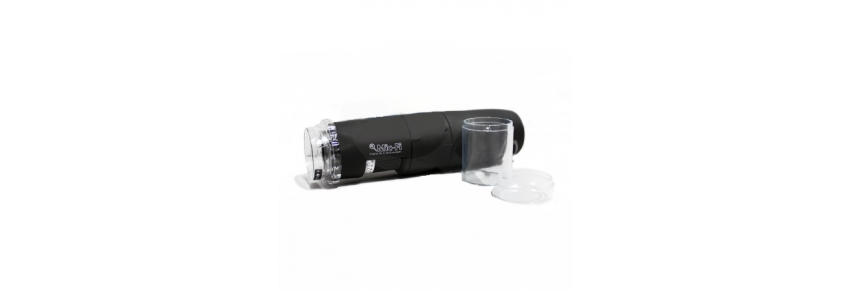

• 1 Contact analysis spacer
• 1 Protective cover
